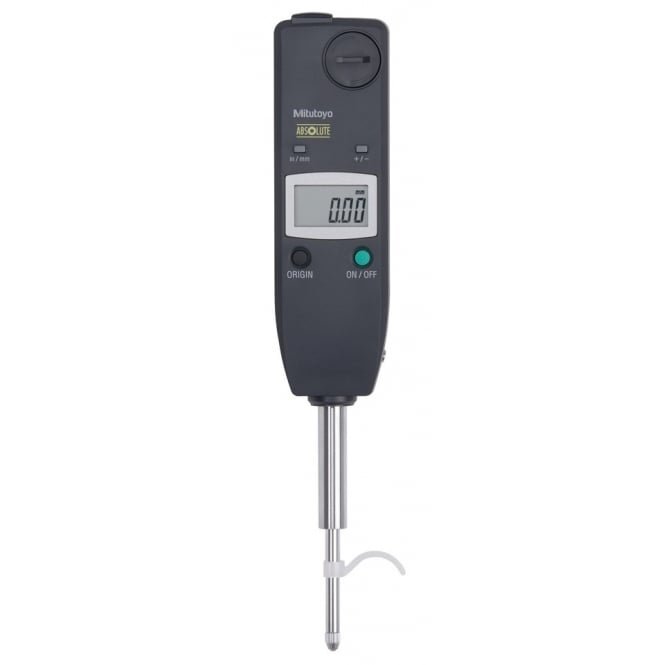

Mitutoyo 575-123 ABSOLUTE Digimatic Economy Indicator ID-U 25.4mm / 1"
An economical, slim-style Mitutoyo digital indicator with a long battery life suited to installation in measuring jigs. ABSOLUTE System scale for error free, high-speed measurement. SPC data output.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-0.02mm / +/-.0008 inch |
Analog/Digital | Digital |
Brand | Mitutoyo |
Data Output | Yes |
Measuring Force | 1.8N or less |
Measuring Units | Millimetre / Inch |
Range | 25.4mm / 1 inch |
Resolution | 0.01mm / .0005 inch |
SKU | 575-123 |
Stem Dia | 9.52mm (3/8 inch) |
Type | Plunger |
• Cost-effective and user-friendly type equipped with only the basic functions necessary.
• The ABSOLUTE sensor restores the last origin position automatically when the indicator is turned on, and ensures high reliability by eliminating over-speed errors.
• Battery life of 20,000 hours in continuous use.
• Easy-to-read large LCD readout with a character height of 8 mm.
• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems
