Part Number : 579-418-51

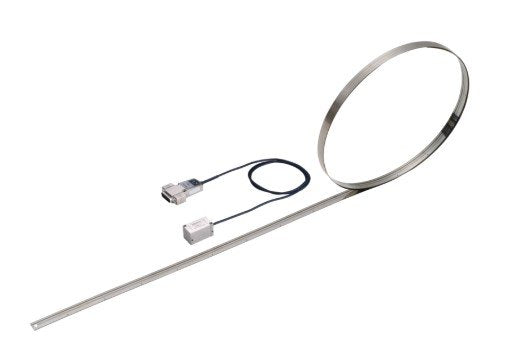

The Mitutoyo 579-418-51 Absolute Tape Scale is engineered for high-precision linear measurements in industrial automation and motion control systems. It offers a maximum effective length of 12 meters, making it suitable for large-scale applications. With an impressive minimum resolution of 0.001 µm, it ensures ultra-fine measurement accuracy. The system supports a maximum response speed of 8 m/s, enabling rapid and precise positioning. Utilizing absolute measurement technology, it retains position data even after power interruptions, eliminating the need for re-zeroing.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Interface	FANUC high-speed serial interface (+/- and +/-i interface are available)
Length	12 m
Max. Response Speed	8 m/s
Model Number	ABSST1351A-01000E
Resolution	0.001 µm
Series	ST1300
Type	Absolute Tape Scale

Absolute Encoder Technology – Maintains accurate position tracking even after power interruptions.
12-Meter Measuring Range – Supports extensive linear measurement needs in large-scale machinery.
Exceptional Resolution – Offers 0.001 µm resolution for high-precision performance.
High-Speed Capability – Operates at speeds up to 8 m/s, ideal for dynamic applications.
Durable and Flexible Tape Design – Engineered for reliable use in harsh industrial environments.
Perfect for Automation – Well-suited for CNC, robotics, and advanced motion control systems.
