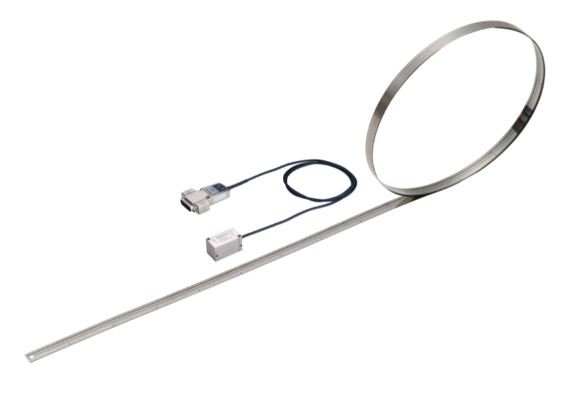

Mitutoyo 579-422-51 | Absolte Tape Scale | Series ST1300 | Maximum Effective Length 12 m | Maximum Response Speed 8 m/s | Minimum Resolution 0.001 µm

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 579-422-51

The Mitutoyo 579-422-51 is a high-precision Absolute Tape Scale from the ST1300 series, designed for long-range and ultra-accurate linear measurement applications. It supports a maximum effective length of 12 meters, making it ideal for large-scale machinery or inspection systems. With a minimum resolution of 0.001 µm (1 nanometer), it delivers exceptional detail and accuracy. The scale also boasts a maximum response speed of 8 m/s, ensuring fast and reliable performance in dynamic environments. Its advanced detection method and flexible mounting options make it highly robust and adaptable for industrial use.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Interface	FANUC high-speed serial interface (+/- and +/-i interface are available)
Length	Effective : 12 m
Max. Response Speed	8 m Or s
Model Number	ST1351A-1400E
Resolution	0.001 µm
Series	Series ST1300
Type	Absolte Tape Scale

Ultra-High Resolution: Offers a minimum resolution of 0.001 µm (1 nm), enabling precise measurements for demanding applications.
Maximum Effective Length: Supports an effective measuring length of up to 12 meters, suitable for large-scale measurement setups.
High Response Speed: Capable of handling speeds up to 8 meters per second, ensuring fast and accurate data acquisition.
Robust Detection Principle: Utilizes a new detection method that offers enhanced resistance to contamination compared to earlier photoelectric types.
Flexible Mounting Options: Provides a choice between double-sided tape and tension mounting methods, facilitating versatile installation in various environments.

DOWNLOAD CATALOG
