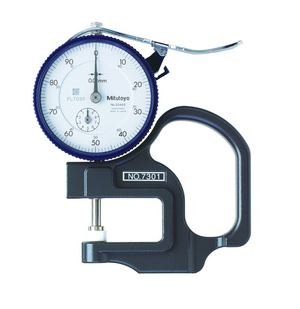

Mitutoyo 7301 | Dial Thickness Gauge | 0–10 mm, 0.01 mm, Standard

Part Number : 7301

Mitutoyo 7301 is the standard flat-contact version of the dial indicator thickness gauge, covering 0–10 mm at 0.01 mm. With flat contacts, the 7301 is used on thin products such as paper, film and felt. Within the series, which covers film and paper, lens thickness, groove depth and tube wall work, the 7301 is the standard model.

  • Measuring range: 0–10 mm, graduation 0.01 mm (7301)
  • Dial indicator no. 2046SB (7301)
  • Weighs 205 g
  • Reaches 30 mm from the edge
  • Contact parallelism: 5 µm (7301)
  • M2.5 x 0.45 mm contact thread (7301)
  • Bezel and crystal moulded together against water and oil at the front (7301)
Availability: low stock
Free UAE shipping available
For pricing, please contact our experts.
