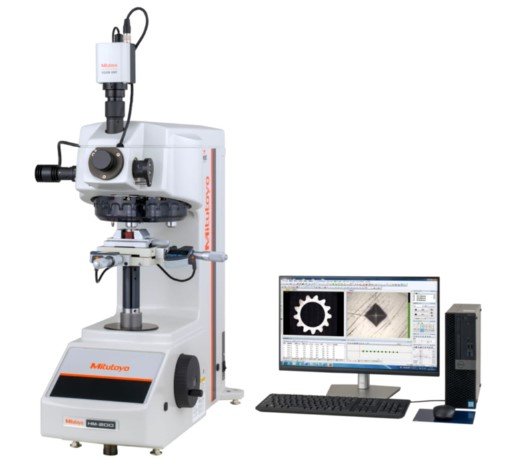

Mitutoyo 810-409-11 | Micro Vickers Hardness Testing Machines | HM-220 System Main Unit | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz or lower | Mass 37.5 kg

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 810-409-11

The Mitutoyo 810-409-11 HM-220 is a manual Micro Vickers hardness testing machine designed for precise hardness measurements on small or thin materials. It operates effectively within a temperature range of 5°C to 40°C and is suitable for environments with vibration frequencies of 5 Hz or lower. Weighing 37.5 kg, it offers stability during testing. This model is ideal for applications requiring accurate microhardness testing, such as in materials science research, quality control in manufacturing, and failure analysis.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Dimensions	External dimensions WxDxH : 383x586x683 mm
Light Source	Light source illumination unit : White LED
Mass (main unit)	37.5 kg
Operation temperature	5-40
Optical system	Infinitely corrected
POWER CONSUMPTION	43
Power Supply	AC100 -240V Auto-selection
Relative Humidity	80% or lower without condensation
Series	810
Standard	Standard objective lenses : MH Plan 10x and 50x
Type	Micro Vickers Hardness Testing Machines
Vibration	5Hz or lower

High-Precision Micro Vickers Testing: Enables accurate hardness measurements on micro-scale materials, coatings, and thin sections.
Manual Operation: Offers precise control over test force application, suitable for expert users needing flexibility.
Wide Load Range Compatibility: Supports a range of test forces (0.4903 mN to 19.610 N), allowing versatility in testing various materials.
Stable and Robust Construction: Weighing 37.5 kg, it ensures vibration resistance and stable operation during sensitive measurements.
Optical System with Fine Resolution: Includes high-quality optics for clear indentation visibility and accurate diagonal length measurement.
