Part Number : 810-440-13

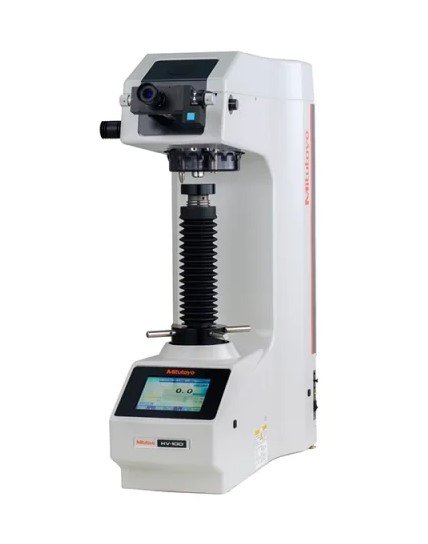

The Mitutoyo 810-440-13 Vickers Hardness Testing Machine (HV-110 Manual) is a high-precision tester designed for Vickers hardness measurements. It operates within a temperature range of 5°C to 40°C, ensuring reliable performance across various conditions. The machine features a vibration frequency of 10Hz or lower, minimizing interference for accurate results. Weighing 60 kg, it provides stability and durability during testing. The HV-110 is a manual unit, offering direct control and simplicity for users. Ideal for material analysis and quality control, it ensures repeatable and precise hardness testing.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Control Type	5.7" touch screen display control
Control Type	Turret: Touch panel
Data Output	RS-232C, SPC Digimatic D-type connection, USB
Drive method	Turret: Motor/Manual
Functions	HV-110
Height	Specimen: 210 mm
Indenters	Speed: selectable 60 1/4m/s/150µm/s
Light Source	White LED
Mass (main unit)	60 kg
Model Number	HV-110
Objective Zoom	MH Plan 10x
Operation temperature	5-40°C
Optical system	Infinitely corrected
Port	Indenter: 1 (equipped)
Port	Objective Lens: 3 (1 equipped)
POWER CONSUMPTION	24 W
Power Supply	AC100 -240V Auto-selection
Range	Test Force: 9.807-490N (1-50kgf)
Relative Humidity	80% or lower without condensation
Resolution	0.01 HV units (settable)
Standards	Vickers: ISO 6507-2, ASTM E92, ASTM E384, JIS B 7725
Switch Type	Test Force: Touch panel
Test force duration	5-999s. 1 s. increments
Throat Depth	170 mm
Type	Vickers Hardness Testing Machine
Vibration	10Hz or lower
WATER VOLUME	11AAB941
Weight	Specimen: 20 kg
XY Stage Size	optional

Vickers Hardness Testing: Provides accurate hardness measurements using the Vickers scale for a wide range of materials.
Temperature Range: Operates efficiently between 5°C and 40°C for stable performance in various environments.
Low Vibration: Vibration frequency of 10Hz or lower minimizes external interference, ensuring precise results.
Stable and Durable: Weighs 60 kg, offering stability during testing and durability for long-term use.
Manual Operation: Manual control for a more hands-on approach, ensuring simplicity and flexibility in testing.
Reliable and Repeatable: Ideal for quality control and material analysis, providing consistent and precise hardness measurements.
