Part Number : 810-445-13

The Mitutoyo 810-445-13 Vickers Hardness Testing Machine (HV-120 Manual) is a high-precision unit designed for Vickers hardness testing. It operates within a temperature range of 5°C to 40°C, ensuring reliable performance across various environments. With a vibration frequency of 10Hz or lower, it minimizes interference, providing accurate and consistent results. Weighing 58 kg, the machine offers stability and durability during testing. The HV-120 is a manual unit, providing direct control for ease of operation. It delivers repeatable and precise hardness measurements, making it ideal for material analysis and quality control.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Control Type	5.7" touch screen display control
Control Type	Turret: Touch panel
Data Output	RS-232C, SPC Digimatic D-type connection, USB
Drive method	Turret: Motor/Manual
Indenters	Approach Speed: selectable 60 1/4m/s/150µm/s
Light Source	White LED
Mass (main unit)	58 kg
Model Number	HV-120
Objective Zoom	MH Plan 10x
Operation temperature	5-40°C
Optical system	Infinitely corrected
Port	Indenter: 1 (equipped)
Port	Objective Lens: 3 (1 equipped)
POWER CONSUMPTION	24 W
Power Supply	AC100 -240V Auto-selection
Range	Test Force: 2.942-294.2N (0,3-30kgf)
Relative Humidity	80% or lower without condensation
Resolution	0.01 HV units (settable)
Standards	Vickers: ISO 6507-2, ASTM E92, ASTM E384, JIS B 7725
Switch Type	Test Force: Touch panel
Test force duration	5-999s. 1 s. increments
Type	Vickers Hardness Testing Machine
Vibration	10Hz or lower
WATER VOLUME	11AAB941
XY Stage Size	Optional

Vickers Hardness Testing: Provides accurate hardness measurements using the Vickers scale for various materials.
Temperature Range: Operates between 5°C and 40°C, ensuring stable and reliable performance in different environments.
Low Vibration: Vibration frequency of 10Hz or lower minimizes external disturbances for precise results.
Stable and Durable: Weighs 58 kg, offering excellent stability and durability for consistent testing.
Manual Operation: Manual control for a hands-on, flexible approach to hardness testing.
Reliable and Repeatable: Ensures high-precision, repeatable hardness testing, ideal for material analysis and quality control.

DOWNLOAD CATALOG

Mitutoyo 810-445-13 | Vickers Hardness Testing Machines | HV-120 Manual Main Unit | Operation Temperature 5 to 40°C | Vibration Frequency 10Hz or Lower | Mass 58 kg

Mitutoyo 810-448-11-DSET | Fully Automatic Vickers Hardness Testing Machine | HV-120 D-Type Set | Operation Temperature 5 to 40°C | Vibration Frequency 10Hz or Lower | Mass 71.9 kg

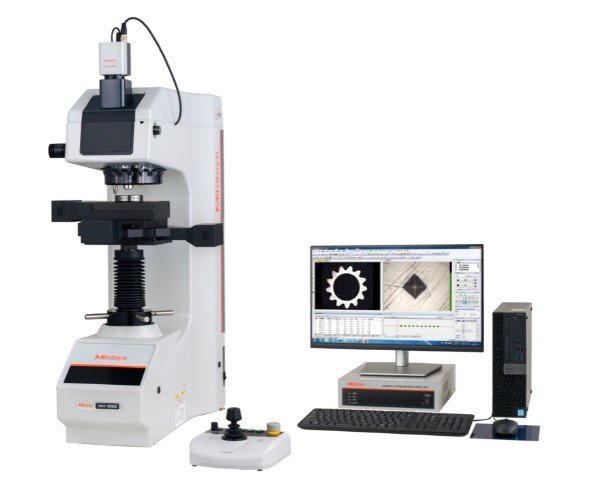

Mitutoyo 810-448-11-CSET | Automatic Vickers Hardness Testing Machine | HV-120 C-Type Set | Operation Temperature 5 to 40°C | Vibration Frequency 10Hz or Lower | Mass 68.9 kg

Mitutoyo 810-443-11-DSET | Fully Automatic Vickers Hardness Testing Machine | HV-110 D-Type Set | Operation Temperature 5 to 40°C | Vibration Frequency 10Hz or Lower | Mass 73.9 kg

Mitutoyo 810-443-11-CSET | Automatic Vickers Hardness Testing Machine | HV-110 C-Type Set | Operation Temperature 5 to 40°C | Vibration Frequency 10Hz or Lower | Mass 70.9 kg

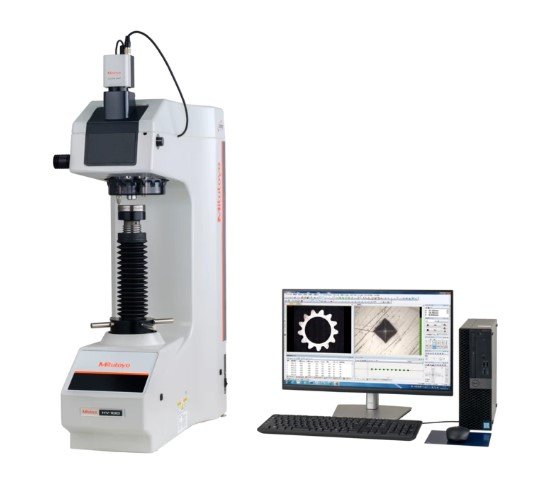

Mitutoyo 810-448-11-BSET | Semi Automatic Vickers Hardness Testing Machine | HV-120 B-Type Set | Operation Temperature 5 to 40°C | Vibration Frequency 10Hz or Lower | Mass 57.1 kg

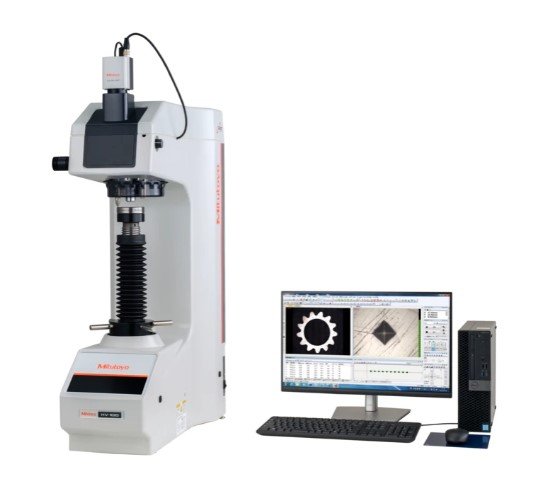

Mitutoyo 810-448-11 | Vickers Hardness Testing Machines | HV-120 System Main Unit | Operation Temperature 5 to 40°C | Vibration Frequency 10Hz or Lower | Mass 57 kg

Mitutoyo 810-443-11-BSET | Semi Automatic Vickers Hardness Testing Machine | HV-110 B-Type Set | Operation Temperature 5 to 40°C | Vibration Frequency 10Hz or Lower | Mass 59.1 kg

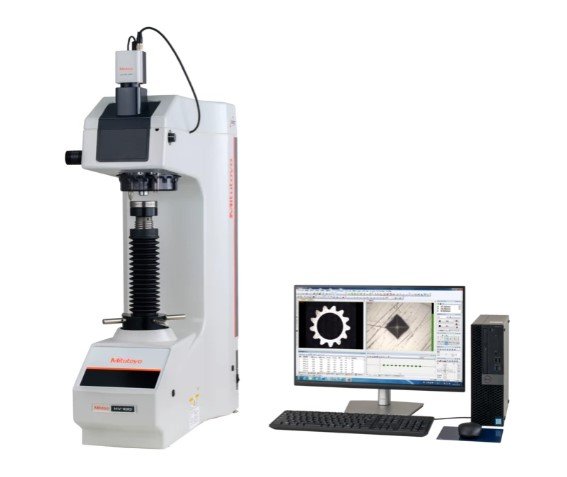

Mitutoyo 810-443-11 | Vickers Hardness Testing Machines | HV-110 System Main Unit | Operation Temperature 5 to 40°C | Vibration Frequency 10Hz or Lower | Mass 59 kg
