Norbar HT2/5 1 out, 1/2 in Manual Torque Multipliers 170-1700NM, Output Square: 1", Input Square: 1/2"

Name: Norbar HT2/5 1 out, 1/2 in Manual Torque Multipliers 170-1700NM, Output Square: 1", Input Square: 1/2"
Brand: Norbar
SKU: 16030
Availability: InStock

Part Number : 16030

Multiple stages of epicyclic gearing are used in Norbar's 'HandTorque' multipliers to provide a wide range of torque outputs and ratios to suit most applications. The torque multiplication ratio is always quoted, not the velocity ratio as some competitors' goods claim. For example, a velocity ratio of 29.8:1 would result in a torque multiplication of 25:14%.

Availability: low stock

Free UAE shipping available

Specifications
Features

Accuracy	+/-4%
Brand	Norbar
Input Square	1/2"
Max Input Speed	42 revs/min
Model Number	HT2/5 1" out, 1/2" in
Multiplication Ratio	5:1
Output Square	1"
Plate Torque	9 N.m
Plate Weight	2.2 Kg
Product Number	16030
Range Imperial	125 - 1250 lbf·ft
Range Metric	170 - 1700 N·m
Tool Weight	3 Kg
Velocity Ratio	5.454:1

A variety of reaction styles are available for maximum versatility.
Electronic torque transducers can be fitted for precise torque monitoring.
True torque multiplication guaranteed better than +/-4%.
High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.
Anti Wind-Up Ratchet available on models of 25:1 ratios and above.

Norbar HT2/5 1 out, 1/2 in Manual Torque Multipliers 170-1700NM, Output Square: 1", Input Square: 1/2"

Norbar HT2/5 1 out, 1/2 in Manual Torque Multipliers 170-1700NM, Output Square: 1", Input Square: 1/2"

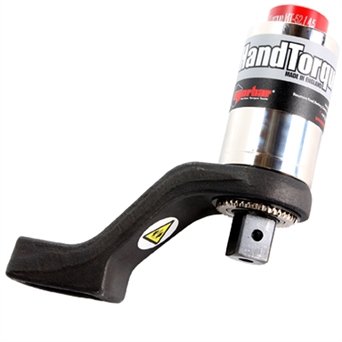

Norbar HT-52 HT-72 Manual Torque Multipliers 100-1000NM, Output Square: 3/4", Input Square: 1/2"

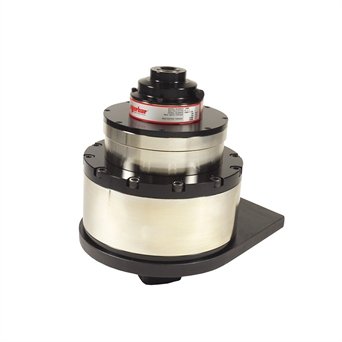

Norbar HT 12/87.5 AWUR Manual Torque Multipliers 3400-34000NM, Output Square: 2 1/2", Input Square: 3/4"

Norbar HT 11/125 AWUR Manual Torque Multipliers 2000-20000NM, Output Square: 2 1/2", Input Square: 1/2"

Norbar HT 11/25 Manual Torque Multipliers 2000-20000NM,Output Square: 2 1/2", Input Square: 3/4"

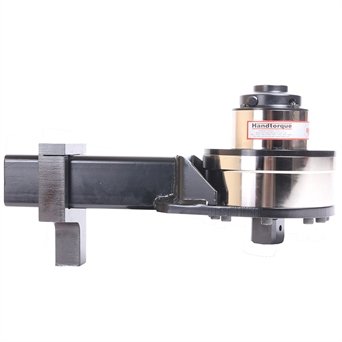

Norbar HT 9/125 AWUR Manual Torque Multipliers 950-9500NM, Output Square: 1 1/2", Input Square: 1/2"

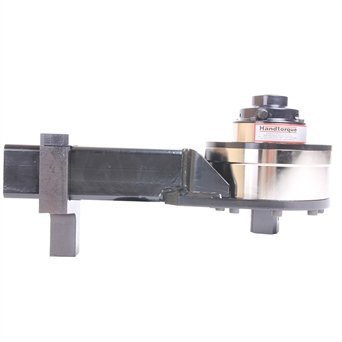

Norbar HT 9/25 AWUR Manual Torque Multipliers 950-9500NM, Output Square: 1 1/2",Input Square: 3/4"

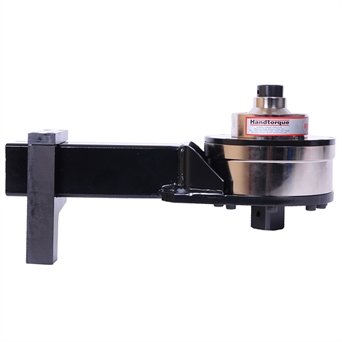

Norbar HT 9/25 Manual Torque Multipliers 950-9500NM, Output Square: 1 1/2", Input Square: 3/4"

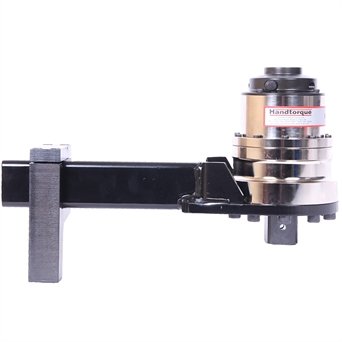

Norbar HT 7/125 Manual Torque Multipliers 600-6000NM, Output Square: 1 1/2", Input Square: 1/2"
