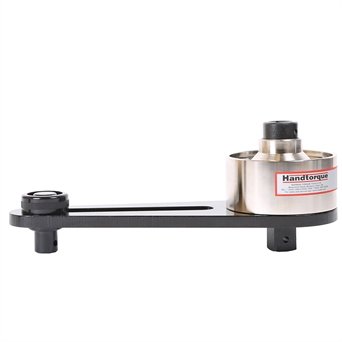

Norbar Manual HT 5/5 Torque Multipliers 340-3400NM, Output Square: 1", Input Square: 3/4"
Multiple stages of epicyclic gearing are used in Norbar's 'HandTorque' multipliers to provide a wide range of torque outputs and ratios to suit most applications. The torque multiplication ratio is always quoted, not the velocity ratio as some competitors' goods claim. For example, a velocity ratio of 29.8:1 would result in a torque multiplication of 25:14%.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-4% |
Brand | Norbar |
Input Square | 3/4" |
Max Input Speed | 21 revs/min |
Model Number | HT 5/5 |
Multiplication Ratio | 5:1 |
NATO number | 5120-99-138-5229 |
Output Square | 1" |
Plate Torque | 19 N.m |
Plate Weight | 2.5 Kg |
Product Number | 16014 |
Range Imperial | 250 - 2500 lbf·ft |
Range Metric | 340 - 3400 N·m |
Tool Weight | 4.7 Kg |
Velocity Ratio | 5.454:1 |
- A variety of reaction styles are available for maximum versatility.
- Electronic torque transducers can be fitted for precise torque monitoring.
- True torque multiplication guaranteed better than +/-4%.
- High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.
- Anti Wind-Up Ratchet available on models of 25:1 ratio and above.
