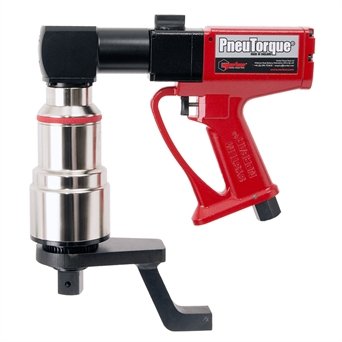

Norbar PneuTorque PTM-92 Pneumatic Torque Multiplier 540-2700NM

Name: Norbar PneuTorque PTM-92 Pneumatic Torque Multiplier 540-2700NM
Brand: Norbar
SKU: 180296.B08
Availability: InStock

Part Number : 180296.B08

The latest addition to the PTM tool line gives bigger capacity PneuTorque models the speed benefit of the twin motor handle. These new versions provide an excellent blend of robustness, speed, and weight when combined with new gearbox designs.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-5%
Air Consumption	19 litres/sec
Brand	Norbar
Free Speed	46 rpm
Model Number	PTM-92
Product Number	180296.B08
Range Imperial	400 - 2000 lbf·ft
Range Metric	540 - 2700 N·m
Reaction Plate Weight	1.35 Kg
Square Size	1"
Tool Weight	8.5 Kg

Quiet - less than 85 dB(A) when under load.
Non impacting - low vibration levels make these tools comfortable and safe to use.
Square drive is quickly and easily replaceable.
'Soft Start' trigger controls / aids socket location and allows gradual and safe reaction location.
For safety, gearbox can rotate independently from the handle so that reaction forces are not transmitted back to the operator.
On Bi-Directional tools, the direction control knob is locked while the tool is running to prevent accidental damage to the gearbox.
Light weight - PTM-92-4000 weighs just 8.5kg. All models are fitted as standard with a light but robust aluminium reaction plate.
Other reaction styles are available for maximum versatility.
