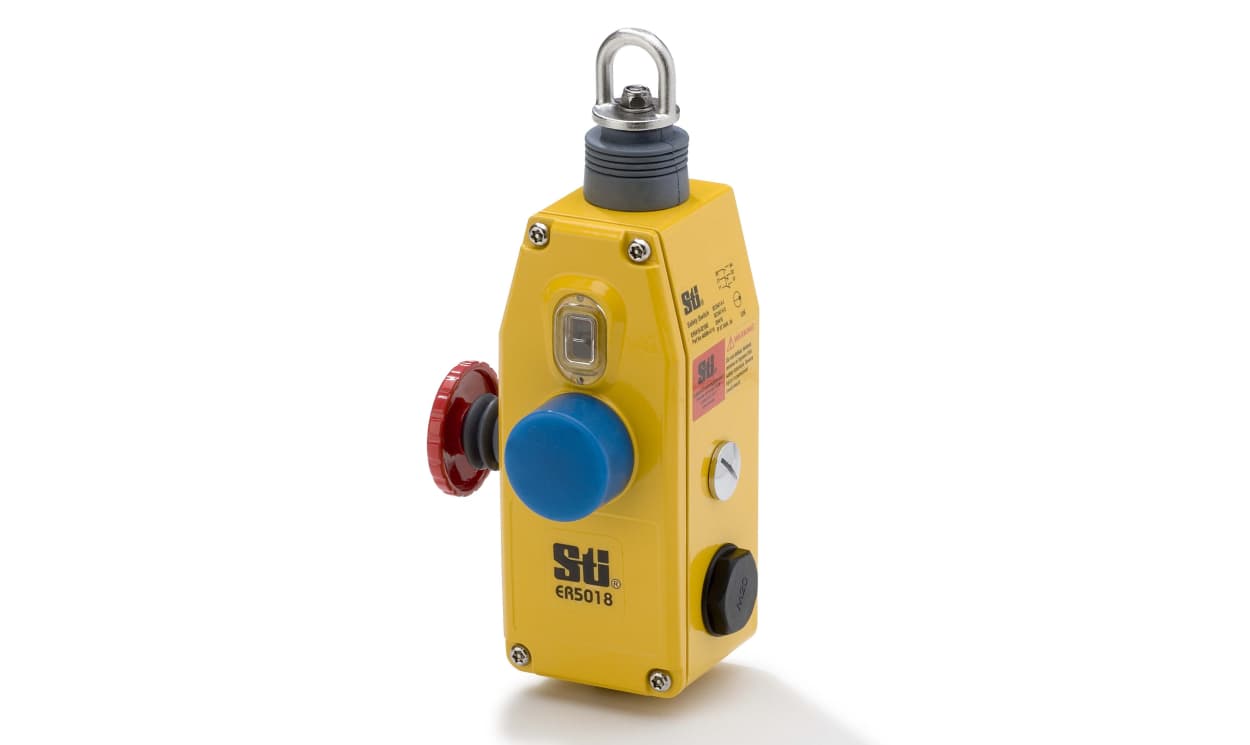

Omron 44506-4130 ER5018-030ME, ER Rope Pull Switch, 40m, 3NC, Any Position

Name: Omron 44506-4130 ER5018-030ME, ER Rope Pull Switch, 40m, 3NC, Any Position
Brand: OMRON
SKU: 44506-4130 ER5018-030ME
Availability: OutOfStock

Part Number : 44506-4130 ER5018-030ME

Availability: Sold out

Detailed Description
Specifications
Downloads

The Omron ER series rope pull emergency stop switch is made from die cast aluminium alloy are designed to be used mainly on conveyor systems, across rotating machinery and around hazardous areas. Due to the use of role pull switch it has reduced installation time and cost. It is yellow in colour and has two possible mounting positions for the emergency stop button.

Tension indicator makes the system easy to set up and to maintain the proper rope tension
IP67 enclosure enables the switch to withstand water wash down cleaning
A blue reset button is provided to easily return the unit back to its machine run position

Brand	Omron
Normal State Configuration	3NC
Cable Length	40m
Mounting Orientation	Any Position
IP Rating	IP67
Number of Poles	1
Series	ER
Length	188mm
Width	57mm
Depth	74mm
Housing Material	Die Cast Aluminium
Maximum Current	3A
Maximum DC Voltage	24V
Maximum Operating Temperature	+80°C
Maximum AC Voltage	240V
Conduit Entry	M20 x 3
Dimensions	57 x 74 x 188mm
Minimum Operating Temperature	-25°C
Standards Met	CE, cUL, UL
