Omron 44506-5410 ER6022-021MEL, ER Rope Pull Switch, 80m, NO/2NC, Straight

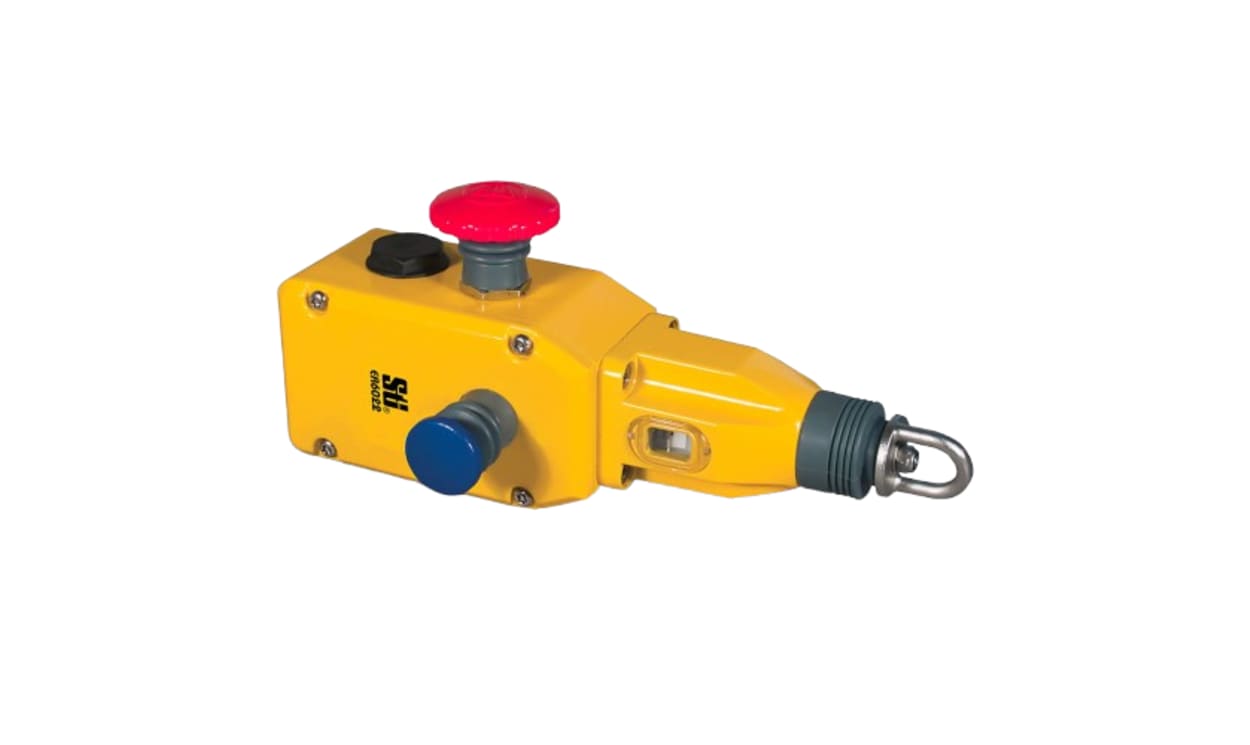

Name: Omron 44506-5410 ER6022-021MEL, ER Rope Pull Switch, 80m, NO/2NC, Straight
Brand: OMRON
SKU: 44506-5410 ER6022-021MEL
Availability: OutOfStock

Part Number : 44506-5410 ER6022-021MEL

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series ER Rope Pull Switch, 80m Cable Length, 3 Poles - ER6022-021MEL

This rope pull switch is designed for industrial safety applications. Featuring robust die-cast aluminium housing, it is suitable for demanding environments and can withstand harsh conditions thanks to its IP67 rating. With a compact design of 239mm length, 96mm width, and 86mm depth, this three-pole switch supports cable lengths of up to 80m, ensuring versatile installation options.

Features & Benefits

• High durability for industrial environments
• IP67 rated switch endures water ingress and cleaning
• Emergency stop button offers emergency stopping at installation ends
• Integrated tension indicator simplifies setup and maintenance
• Vibrations are tolerated, reducing nuisance tripping
• Designed for a minimum of one million actuations

Applications

• Utilised across conveyor systems for operational safety
• Ideal for rotating machinery and areas with potential hazards
• Often installed in environments requiring quick emergency actions
• Can be used in automated production and processing lines

What operational temperature range can the switch handle?

The device operates effectively within a temperature range of -25°C to +80°C, making it suitable for diverse environments.

How does the tension indicator contribute to the switch's functionality?

The integrated tension indicator allows for straightforward setup and ongoing maintenance, ensuring the rope remains adequately tensioned for effective operation.

What type of maintenance is recommended for this product?

Regular checks on the system's functionality are essential, with weekly inspections to confirm proper rope tension and full operational capability.

Brand	Omron
Normal State Configuration	NO/2NC
Cable Length	80m
Mounting Orientation	Straight
IP Rating	IP67
Number of Poles	3P
Series	ER
Length	239mm
Width	96mm
Depth	86mm
Housing Material	Die Cast Aluminium
Maximum DC Voltage	24V
Maximum AC Voltage	240V
Minimum Operating Temperature	-25°C
Maximum Current	3A
Conduit Entry	M20
Maximum Operating Temperature	+80°C
Dimensions	239 x 96 x 86mm
