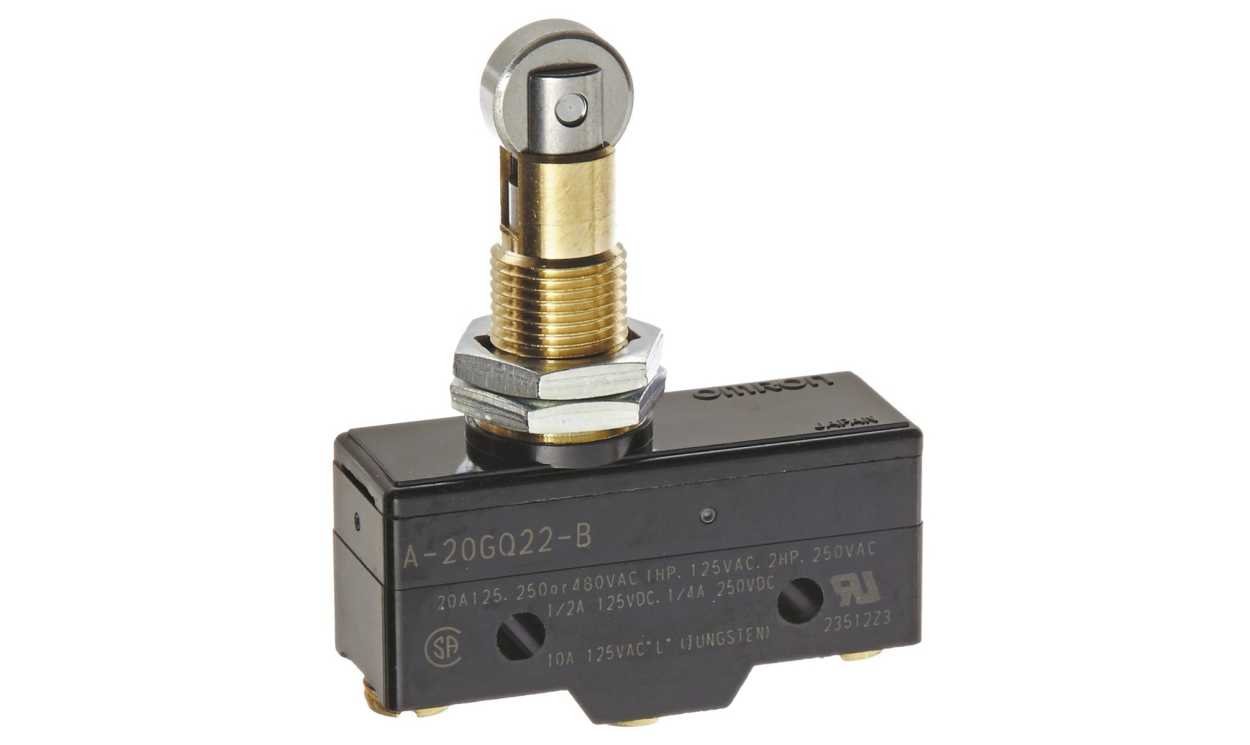

Omron A-20GQ22-B, Roller Plunger Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 20A Max

Name: Omron A-20GQ22-B, Roller Plunger Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 20A Max
Brand: OMRON
SKU: A-20GQ22-B
Availability: InStock

Part Number : A-20GQ22-B

Availability: low stock

Detailed Description
Specifications
Downloads

A20 Series

The A20 Series of Switches from Omron

High-capacity switch capable of handling 20A loads with inrush currents up to 75A
Directly switches such loads as motors, halogen lamps and solenoids
Same shape as OMRON Z series (except pin plunger)
Contact Form: SPDT
Terminal: Screw
IP00 Rated

Brand	Omron
Actuator Type	Roller Plunger
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	20A
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	Screw
Action Type	Snap Action
Length	49.2mm
Width	17.45mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+85°C
Depth	25.5mm
Mounting Orientation	Panel, Side
Mechanical Life	1000000Operations
