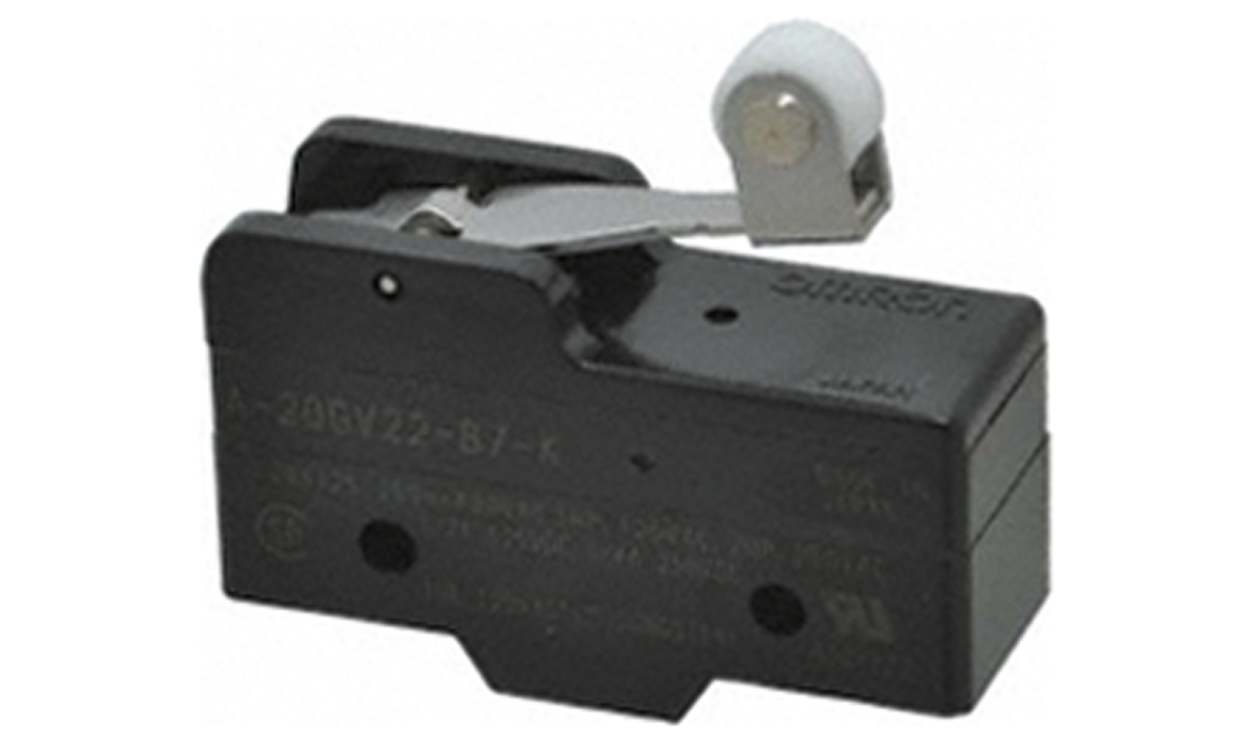

Omron A-20GV22-B7-K, A Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 20A Max

Name: Omron A-20GV22-B7-K, A Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 20A Max
Brand: OMRON
SKU: A-20GV22-B7-K
Availability: OutOfStock

Part Number : A-20GV22-B7-K

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series A Limit Switch, NO/NC Normal State Configuration, 20A Maximum Current - A-20GV22-B7-K

This limit switch plays a crucial role in various automation applications. Equipped with a roller lever actuator, it ensures reliable switching for machinery and electronic systems. Its snap action mechanism enhances responsiveness in operational settings, making it a valuable tool for professionals in electrical and mechanical fields.

Features & Benefits

• High current handling capacity of 20A for effective performance
• Mechanical durability with a lifespan of 1,000,000 operations
• Available in both normally open and normally closed configurations for flexibility
• Compact design allows for easy panel or side mounting

Applications

• Utilised in automated assembly lines for control tasks
• Employed in conveyor systems for position sensing
• Suitable for safety interlocks in industrial machinery
• Applicable in home automation systems for switch control
• Used in robotics for precise movement detection

What is the recommended mounting orientation for this component?

It can be mounted on a panel or side, allowing for versatile installation.

What types of connections does it support?

The switch supports screw-type connections for secure wiring.

How does this limit switch perform under varying temperature conditions?

It functions effectively between -25°C and +85°C, ensuring dependability in various environments.

Brand	Omron
Actuator Type	Roller Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	20A
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	Screw
Series	A
Action Type	Snap Action
Length	49.2mm
Standards Met	CSA
Maximum Operating Temperature	+85°C
Width	17.45mm
Depth	29.4mm
Minimum Operating Temperature	-25°C
Operating Force	3.92 → 6.13 N
Mechanical Life	1000000Operations
Mounting Orientation	Panel, Side
