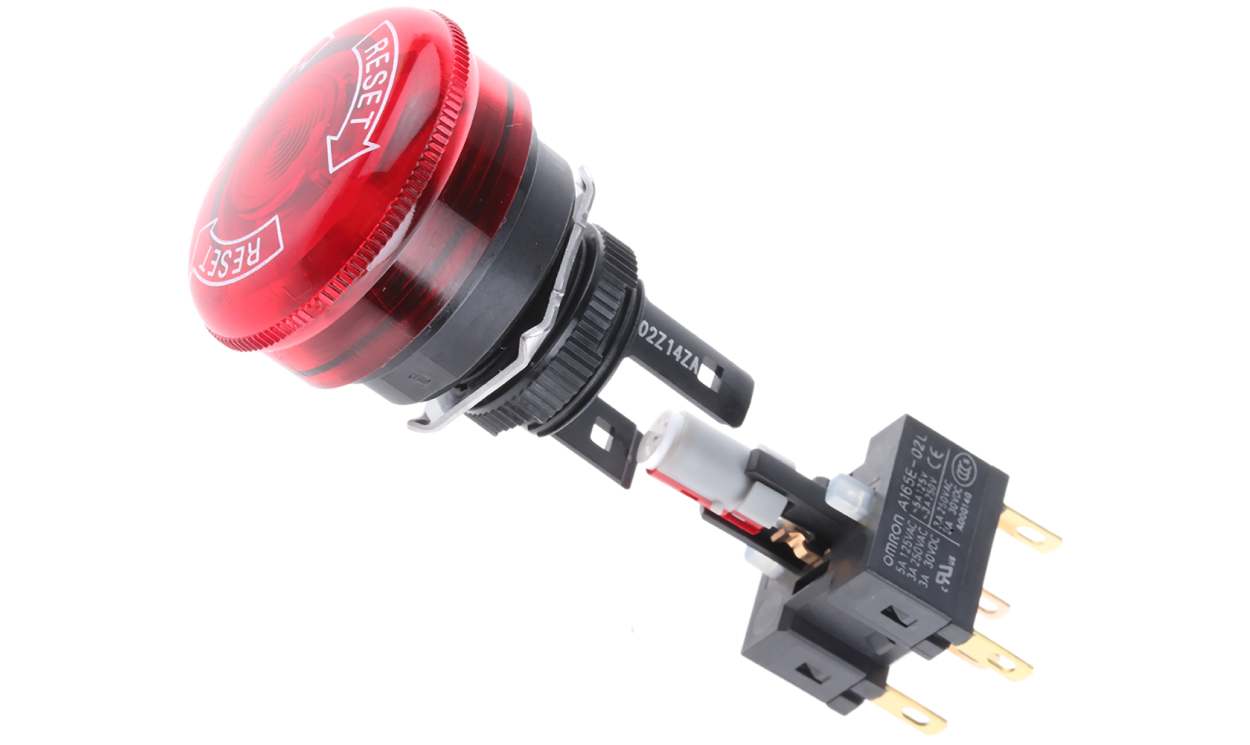

Omron A165E-LS-24D-02, A165E Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 16mm Cutout, 2NC, IP65

Name: Omron A165E-LS-24D-02, A165E Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 16mm Cutout, 2NC, IP65
Brand: OMRON
SKU: A165E-LS-24D-02
Availability: OutOfStock

Part Number : A165E-LS-24D-02

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron A165E Series Emergency Stop Push Button, Panel Mount, 2NC Contact Configuration - A165E-LS-24D-02

This emergency stop push button plays a crucial role in ensuring safety within automation and machinery operations. It is designed for panel mounting, allowing for quick and efficient shutdowns during emergencies. Its robust construction and illuminated feature provide excellent visibility, suitable for a range of industrial environments.

Features & Benefits

• Illuminated design enhances visibility during use
• IP65 rating offers protection against dust and water ingress
• Twist release mechanism provides intuitive actuation
• Dual normally closed contacts ensure dependable performance
• Compact design optimises space in panel installations

Applications

• Suitable for emergency stop circuits in machinery
• Ideal for control panels in manufacturing settings
• Used in automation systems that require safety cut-off
• Commonly applied in electrical and mechanical equipment

How is the button reactivated after being pressed?

It features a twist release mechanism, which requires a simple turn to reset after activation.

Can this be used with different voltage ratings?

It is specifically designed for 24V AC/DC systems and should not be used outside this rating to ensure safe operation.

What is the process for panel mounting this component?

It requires a 16mm cut-out and can be securely fitted using standard mounting techniques.

Are auxiliary contacts available for this model?

This specific model does not include auxiliary contacts

it focuses solely on primary emergency stop functions.

Brand	Omron
Mounting Type	Panel Mount
Cutout Diameter	16mm
Contact Configuration	2NC
Voltage Rating	24V ac/dc
Push Button Actuation	Twist Release
Illuminated	Yes
Series	A165E
IP Rating	IP65
Colour	Red
Supply Current	5A
Depth	48.5mm
Auxiliary Contacts	NO
Width	18mm
Pole and Throw Configuration	DPST
Switch Operation	Turn To Reset
Push Button Material	Plastic
Push Button Diameter	30mm

Omron A165E-LS-24D-02, A165E Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 16mm Cutout, 2NC, IP65

DOWNLOAD CATALOG

A165E-LS-24D-02 Machine Guarding and Safety Range Overview 0900766b814520f1

A165E-LS-24D-02 Omron Machine Safety 0900766b814c686b
