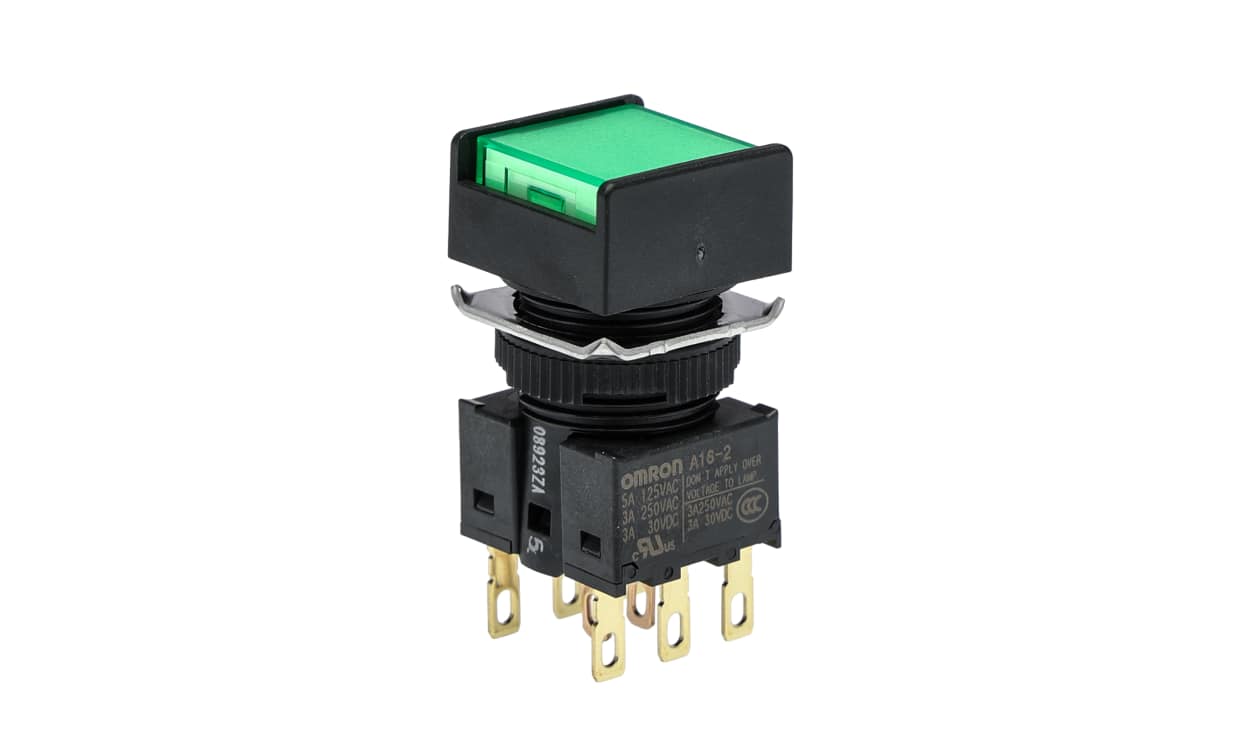

Omron A165L-AGA-24D-2, A16 Series Illuminated Push Button, Panel Mount, 16mm Cutout, DPDT, IP65

Name: Omron A165L-AGA-24D-2, A16 Series Illuminated Push Button, Panel Mount, 16mm Cutout, DPDT, IP65
Brand: OMRON
SKU: A165L-AGA-24D-2
Availability: OutOfStock

Part Number : A165L-AGA-24D-2

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron A16 Series Push Button, 24V AC/DC Voltage Rating, Green Push Button Colour - A165L-AGA-24D-2

This push button switch is designed for panel mounting, featuring a compact 16mm diameter. The illuminated push button ensures visibility and functionality in various lighting conditions, with a robust construction made of polycarbonate material. Its design supports a voltage rating of 24V AC/DC, making it highly versatile for numerous applications.

Features & Benefits

• Easy installation with PCB pin terminals for quick connections
• Durable polycarbonate body ensures long-lasting performance
• Equipped with a green LED for enhanced visibility
• DPDT configuration allows for versatile control options
• Operating temperature range of -10°C to +55°C for reliable operation

Applications

• Used with industrial control panels for enhanced user interaction
• Suitable for automation requiring reliable feedback
• Ideal for installation in indoor environments with potential exposure to moisture
• Effective in electrical machinery to manage and control functions

What are the operational limits in terms of voltage and current for this switch?

The push button is rated for a maximum AC voltage of 250V and can handle a contact current of 3A, ensuring efficient control in various environments.

How can this product's design enhance user experience in automation tasks?

The illuminated feature, coupled with a square push button design, allows for easy identification and operation, which is beneficial in high-demand automation scenarios.

What measures ensure that this push button switch maintains functionality in challenging conditions?

With its IP65 rating, the switch is designed to resist dust and water, ensuring continuous operation even in less-than-optimal environments.

Omron 16mm Diameter Cut Out - 230Vac Rated

Modular construction (case + contact or indicator block + lens + lamp)
Easy, snap-together assembly
IP65 sealed
Conforms to EN60943-5-1, IEC947-5-1

Brand	Omron
Illuminated	Yes
Series	A16
Panel Cut Out Diameter	16mm
Mounting Type	Panel Mount
Push Button Colour	Green
Contact Configuration	DPDT
Push Button Style	Square
IP Rating	IP65
Push Button Material	Polycarbonate
Manufacturer Part No.	A165L-AGA-24D-2
Minimum Operating Temperature	-10°C
Terminal Type	PCB Pin
Maximum AC Voltage	250V
Maximum Operating Temperature	+55°C
Maximum DC Voltage	30V
