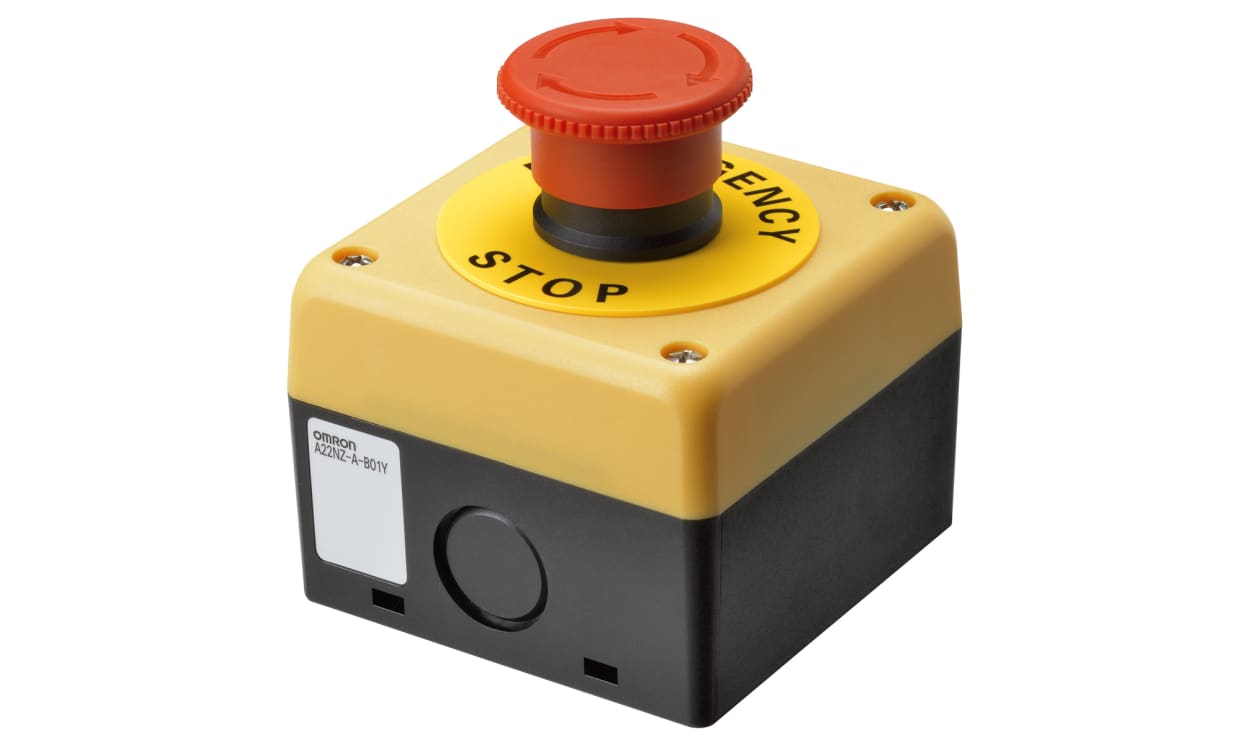

Omron A22NE-M-P202-N-B, A22NE-P Series Turn to Reset Emergency Stop Push Button, Surface Mount, 22mm Cutout, 2NC, IP65

Name: Omron A22NE-M-P202-N-B, A22NE-P Series Turn to Reset Emergency Stop Push Button, Surface Mount, 22mm Cutout, 2NC, IP65
Brand: OMRON
SKU: A22NE-M-P202-N-B
Availability: OutOfStock

Part Number : A22NE-M-P202-N-B

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron A22NE-P Series Emergency Stop Push Button, 22mm Cutout Diameter, 2NC Contact Configuration - A22NE-M-P202-N-B

This emergency stop push button is an essential safety component designed for industrial applications. With a round shape and a cutout diameter of 22mm, it is tailored for surface mounting. This unit features a contact configuration of 2NC and operates with a voltage rating of 12V AC/DC, making it pivotal for ensuring immediate disengagement of equipment during emergencies.

Features & Benefits

• Round push button offers intuitive operation and visibility
• Turn to reset functionality enhances safety after an emergency
• IP65 rating ensures protection against dust and water
• Designed for surface mounting to fit various equipment layouts
• Red colour provides high visibility in emergency situations
• Low supply current of 0.012A optimises energy consumption

Applications

• Used for stopping machinery promptly in hazardous situations
• Suitable for integration in automation systems requiring a manual shutdown
• Ideal for electrical panels where quick response is critical
• Employed within mechanical systems to enhance user safety
• Compatible with various control systems needing emergency cut-off

How does the turn to reset feature contribute to safety in industrial settings?

The turn to reset feature prevents accidental reactivation of the machine after an emergency stop, ensuring that operators intentionally confirm safety before restarting operations.

What are the benefits of the IP65 rating for this push button?

The IP65 rating indicates complete protection from dust and low-pressure water jets, making it reliable for use in harsh industrial environments without concerns of damage or malfunction.

Can this push button be integrated with different types of control systems?

Yes, it is designed to be versatile and can be integrated into various control systems that operate within the 12V AC/DC range, making it suitable for many applications.

What dimensions should be considered when installing this push button?

Ensure a cutout of 22mm is made for surface mounting, and the overall depth of 71.5mm should be accommodated for secure installation within equipment panels.

What safety features are inherent in the 2NC contact configuration?

The 2NC contact configuration ensures that both contacts open simultaneously during an emergency stop, which doubles the assurance that the equipment will cease operation immediately.

Brand	Omron
Mounting Type	Surface Mount
Cutout Diameter	22mm
Contact Configuration	2NC
Push Button Actuation	Turn to Reset
Voltage Rating	12V ac/dc
Illuminated	No
Series	A22NE-P
IP Rating	IP65
Colour	Red
Push Button Shape	Round
Supply Current	0.012 A
Depth	71.5 mm
Auxiliary Contacts	NO
Push Button Diameter	40mm
Safety Contacts	2

Omron A22NE-M-P202-N-B, A22NE-P Series Turn to Reset Emergency Stop Push Button, Surface Mount, 22mm Cutout, 2NC, IP65

DOWNLOAD CATALOG

A22NE-M-P202-N-B Brochure - Pushbutton Switches A700000014531799

A22NE-M-P202-N-B Selection Guide - Safety Components A700000014531817
