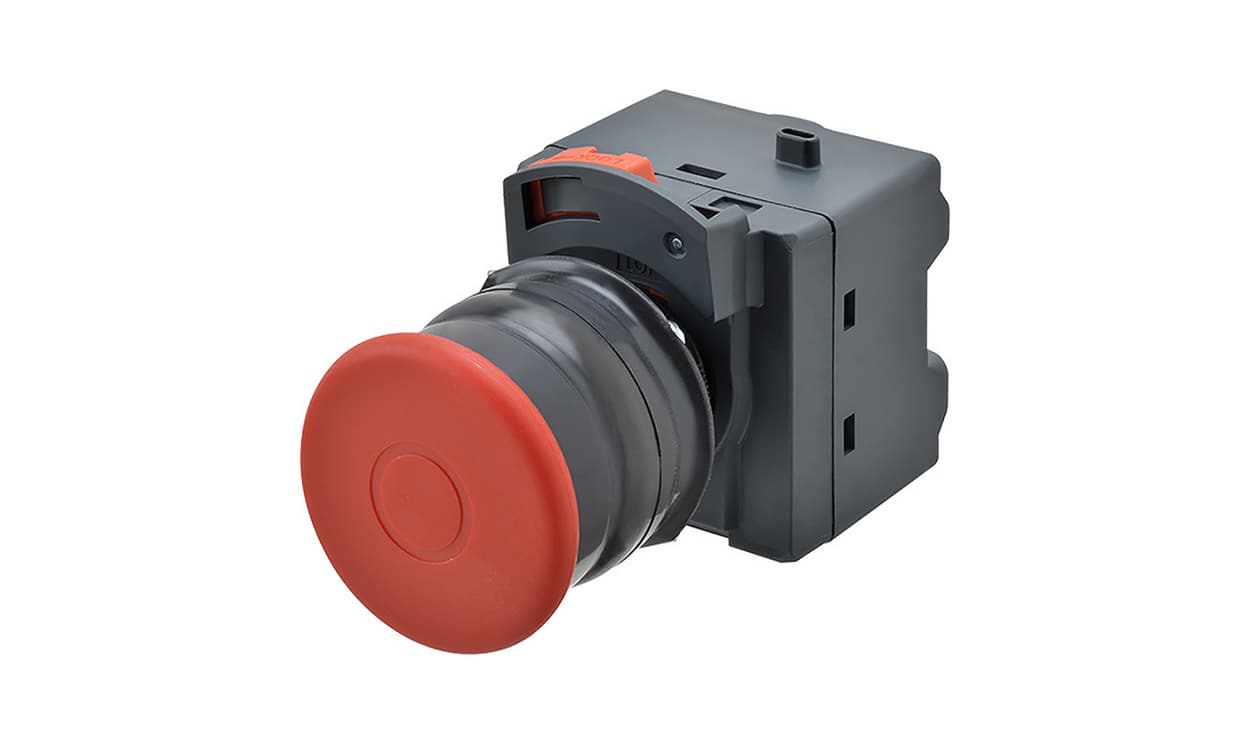

Omron A22NE-MP-PD22-N-69K, A22NE-PD Series Pull Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2NO + 2NC, IP69K

Name: Omron A22NE-MP-PD22-N-69K, A22NE-PD Series Pull Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2NO + 2NC, IP69K
Brand: OMRON
SKU: A22NE-MP-PD22-N-69K
Availability: OutOfStock

Part Number : A22NE-MP-PD22-N-69K

Availability: Sold out

Detailed Description
Specifications
Downloads

The A22E/A22NE-P/A22NE-PD line-up offers E-Stop switches with various head types. For flexible application, a wide range of accessories is provided. To set up easy installation and maintenance, various contact combinations are available.

Direct opening mechanism to open the circuit when the contact welds
With a latching mechanism to prevent operating errors
Lock lever for easily mounting and removing the unit
Use 25-dia. ring to install in 25-dia. panel cutouts.
In a model equipped with Lock-lever-linked contact function, the improper installation of the switch unit can be detected.

Brand	Omron
Mounting Type	Panel Mount
Cutout Diameter	22mm
Contact Configuration	2NO + 2NC
Push Button Actuation	Pull Release
Voltage Rating	250V
Illuminated	No
Series	A22NE-PD
IP Rating	IP69K
Colour	Red
Push Button Shape	Round
Supply Current	5A
Depth	86.7mm
Auxiliary Contacts	NO
Safety Contacts	4

Omron A22NE-MP-PD22-N-69K, A22NE-PD Series Pull Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2NO + 2NC, IP69K

DOWNLOAD CATALOG

Omron A22NE-MP-PD22-N-69K, A22NE-PD Series Pull Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2NO + 2NC, IP69K
