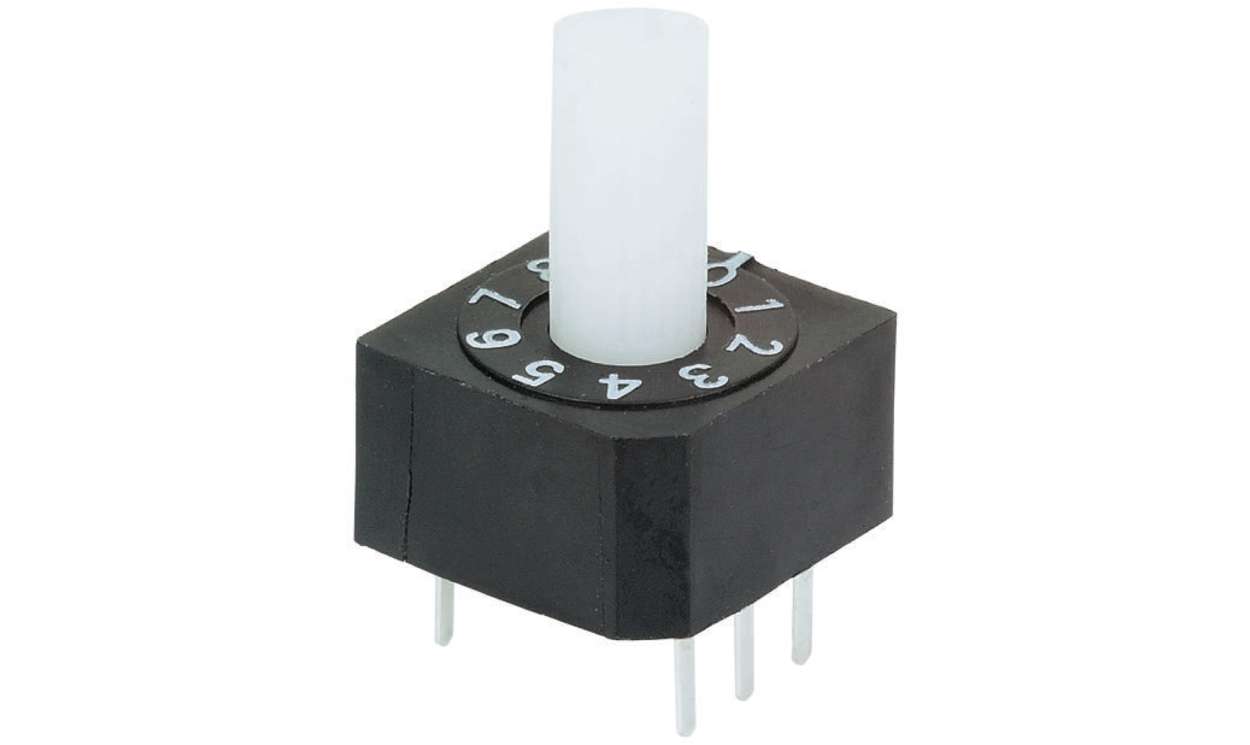

Omron A6A-10RS, 10 Way Through Hole DIP Switch 10P, Rotary Shaft Actuator

Name: Omron A6A-10RS, 10 Way Through Hole DIP Switch 10P, Rotary Shaft Actuator
Brand: OMRON
SKU: A6A-10RS
Availability: OutOfStock

Part Number : A6A-10RS

Availability: Sold out

Detailed Description
Specifications
Downloads

DIP Sealed Rotary Switches (IP64)

A range of PCB mount sealed rotary DIP switches. Series includes a standard type that can be operated from the top or side, spindle shaft type that can be operated while mounted on a panel, along with thumbwheel and flat options.

Fully sealed to IP64
RoHS compliant
10 or 16way switching positions
Switching capacity 1mA to 0.1A @ 5 to 28Vdc
Contact resistance 200mΩ max.
Ambient temperature -10 to +70°C
Footprint/Pin spacing: 2.54mm between pins and 5.08 between rows
Gold plated contacts

PCB Mounting

Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows

Brand	Omron
Number of Positions	10
Mounting Type	Through Hole
Contact Material	Silver over Gold Plated Phosphor Bronze
Contact Configuration	10P
Package Style	DIP
Actuator Type	Rotary Shaft
Contact Current Rating	100 mA@ 30 V dc
Mechanical Life	10000Operations
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-10°C
Operating Temperature Range	-10 → +70°C
Dielectric Strength	500V ac
