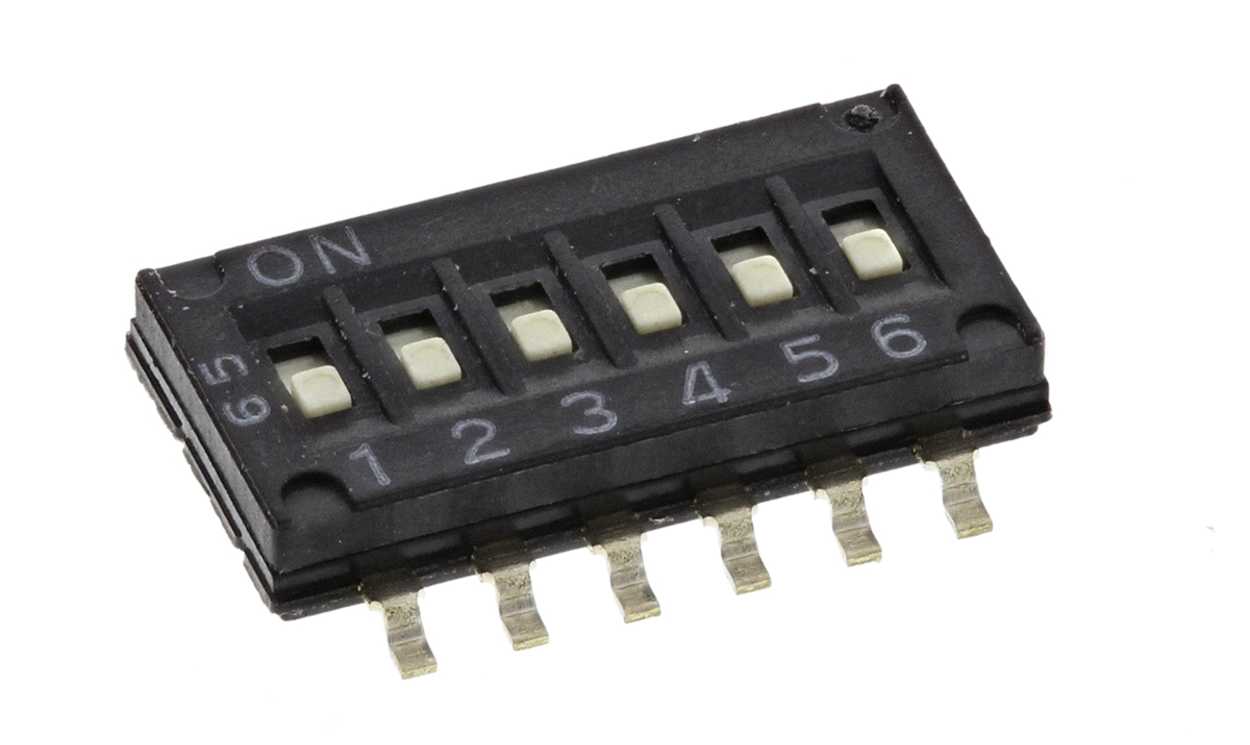

Omron A6H6101, 6 Way Surface Mount DIP Switch 6P

Name: Omron A6H6101, 6 Way Surface Mount DIP Switch 6P
Brand: OMRON
SKU: A6H6101
Availability: InStock

Part Number : A6H6101

Availability: low stock

Detailed Description
Specifications
Downloads

Ultra Low Profile Half Pitch Switches

A range of half pitch surface mount DIL switches. Being half pitch this reduces the mounting space by 63%.

Half pitch with ultra Low profile of 1.55mm
Available with or without tape seal
Surface mount
Contact resistance: 200mΩ
Insulation resistance: 100MΩ min @ 250Vdc
Mechanical life: 1000 operations
RoHS compliant

Dual-In-Line Switches

Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.

Brand	Omron
Number of Positions	6
Mounting Type	Surface Mount
Contact Configuration	6P
Package Style	DIP
Actuator Type	Slide
Contact Current Rating	25 mA@ 24 V dc
Mechanical Life	1000Operations
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-20°C
Operating Temperature Range	-20 → +70°C
Dielectric Strength	300V ac
