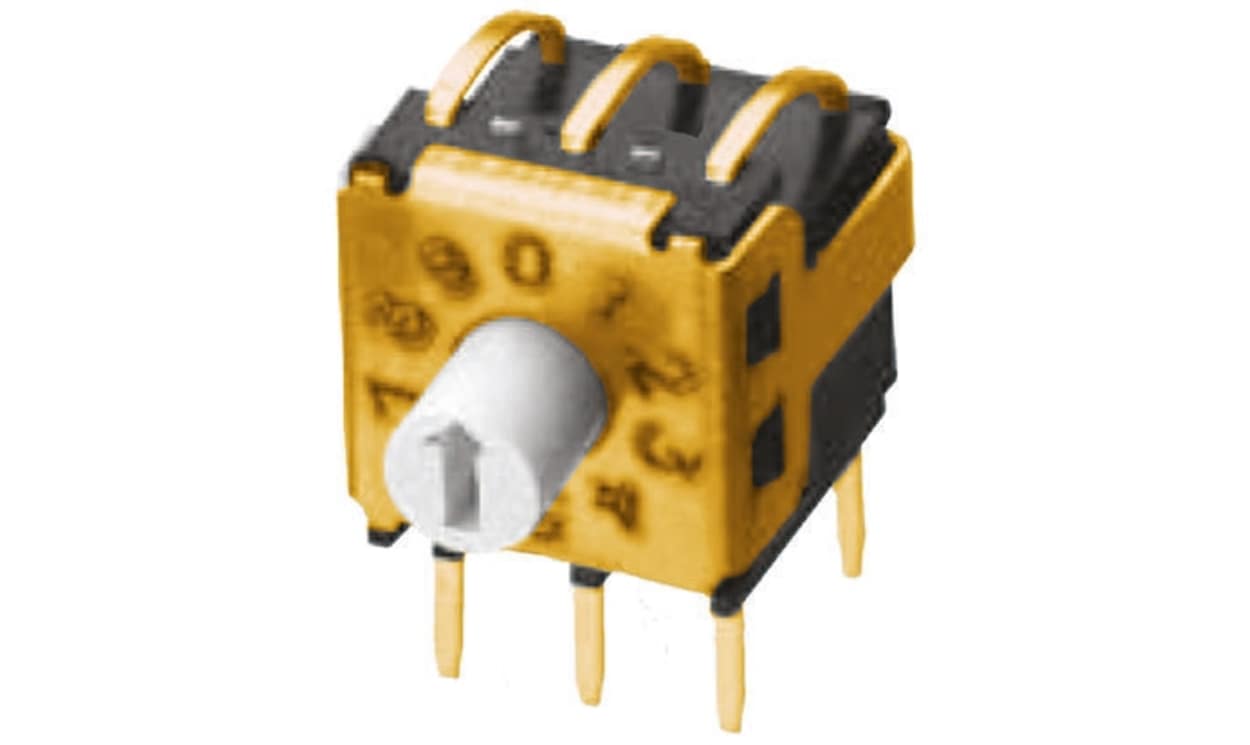

Name: Omron A6KV-102RS, 10 Way Through Hole DIP Switch, Rotary Shaft Actuator
Brand: OMRON
SKU: A6KV-102RS
Availability: InStock

Part Number : A6KV-102RS

Availability: low stock

Miniature 7.2 x 7.2 mm size
Mounting space reduced by 50% (compared to conventional models)
Gold-plated contacts ensure high reliability

PCB Mounting

Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows

Brand	Omron
Number of Positions	10
Mounting Type	Through Hole
Contact Material	Gold Plated
Package Style	DIP
Actuator Type	Rotary Shaft
Contact Current Rating	25 mA@ 24 V dc
Mechanical Life	20000Operations
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-30°C
Operating Temperature Range	-30 → +80°C
Voltage Rating	24V dc
Dielectric Strength	250V ac
