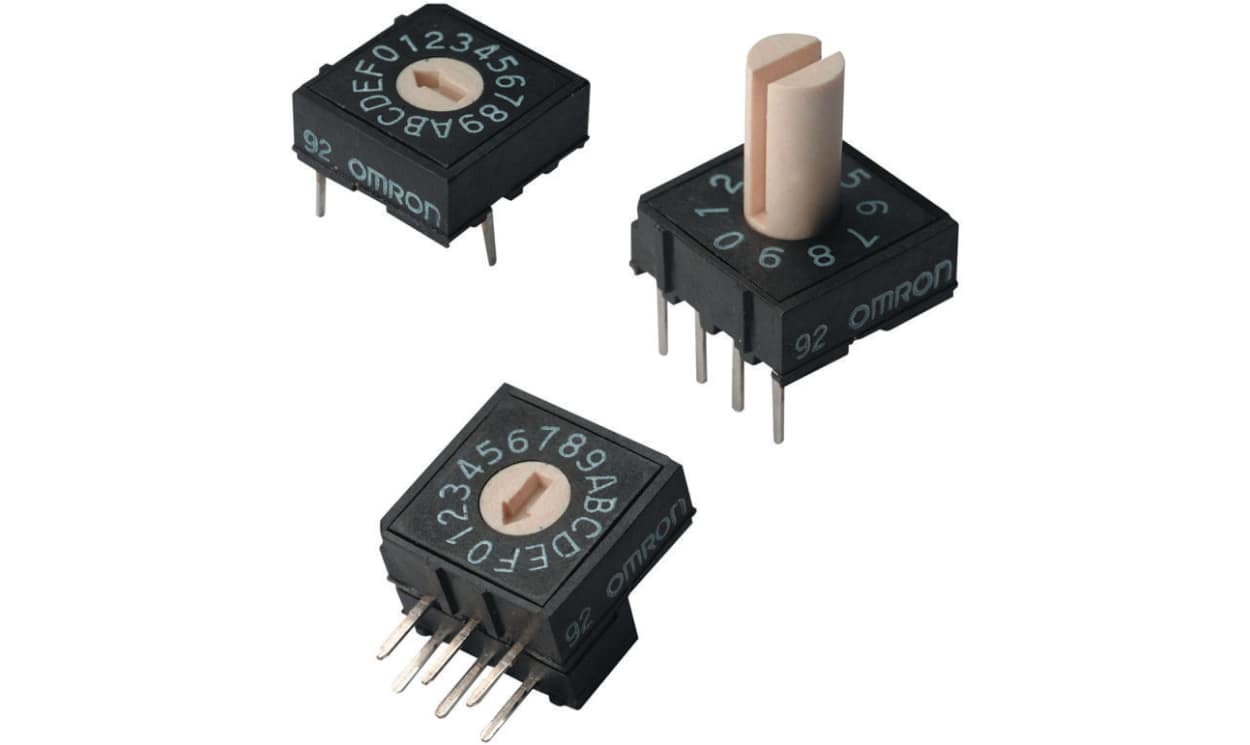

Omron A6RV-101RF CHN, 10 Way Through Hole DIP Switch, Rotary Flush Actuator

Name: Omron A6RV-101RF CHN, 10 Way Through Hole DIP Switch, Rotary Flush Actuator
Brand: OMRON
SKU: A6RV-101RF CHN
Availability: InStock

Part Number : A6RV-101RF CHN

Availability: low stock

Detailed Description
Specifications

DIP Sealed Rotary Switches (IP60)

A range of low cost PCB mount rotary DIP switches. Series includes top or side actuator with flat or spindle shaft models.

Rotor has an O-ring sealed construction that prevents the ingress of dirt and dust (IP60)
RoHS compliant
10 or 16 way switching positions
Contact rating: 25mA @ 24Vdc
Contact resistance: 200mΩ max
Insulation resistance: 100MΩ min @ 250Vdc
Electrical life: 5000 steps per min
Operating temperature: -25 to +80°C
2.54mm pin spacing

PCB Mounting

Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows

Brand	Omron
Number of Positions	10
Mounting Type	Through Hole
Package Style	DIP
Actuator Type	Rotary Flush
Contact Current Rating	25 mA@ 24 V dc
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
Operating Temperature Range	-25 → +80°C
Voltage Rating	24V dc
Dielectric Strength	250V ac
