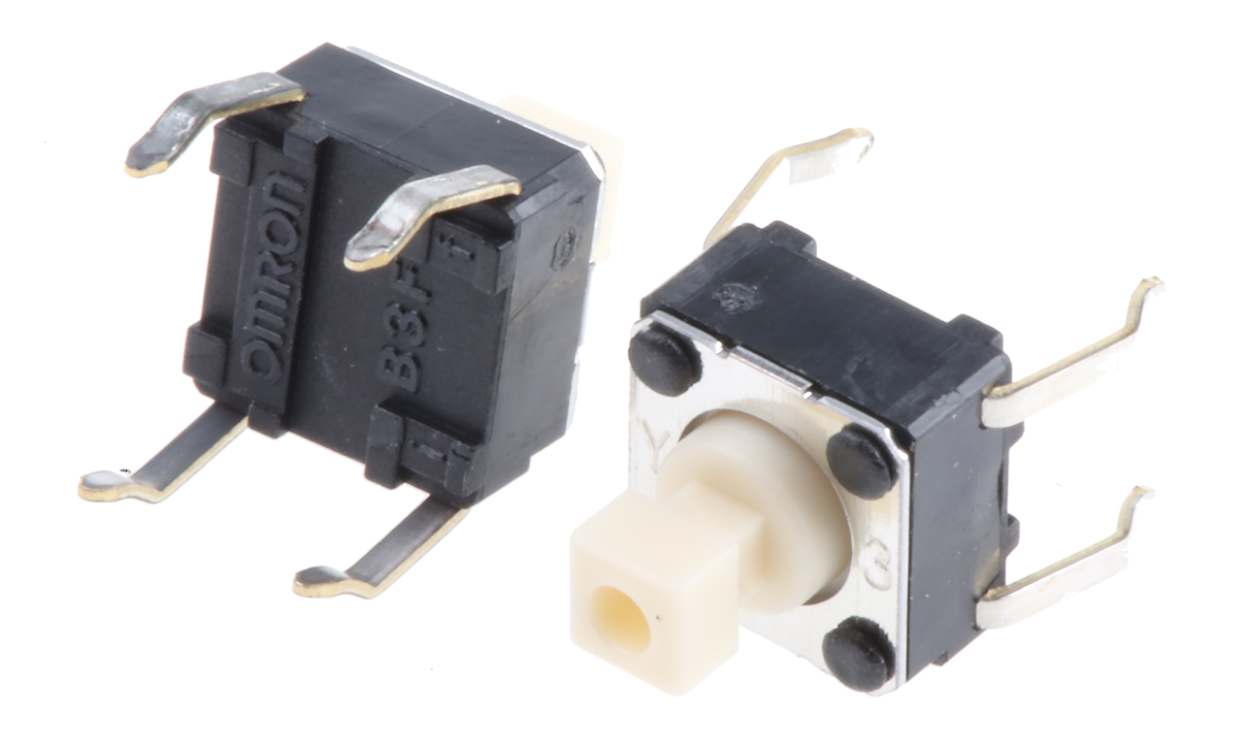

Omron B3F-1050, White Plunger Tactile Switch, SPST 50 mA @ 24 V dc 3mm Through Hole

Name: Omron B3F-1050, White Plunger Tactile Switch, SPST 50 mA @ 24 V dc 3mm Through Hole
Brand: OMRON
SKU: B3F-1050
Availability: OutOfStock

Part Number : B3F-1050

Availability: Sold out

Detailed Description
Specifications
Downloads

Tactile Switches Omron B3F1000 series (6 x 6 mm)

Ideal for applications such as audio, office and communications equipment, measuring instruments, TVs, PVRs, etc.,Models available with flat and projected actuators

Positive click action plus a long life equal to that of a no-contact switch.

Tactile

Brand	Omron
Contact Configuration	SPST
Terminal Type	Through Hole
Actuator Length	3mm
Actuator Colour	White
Actuator Type	Plunger
Length	6mm
Width	6mm
Dimensions	6 x 6 x 7.3mm
Mounting Type	Through Hole
Contact Current Rating	50 mA @ 24 V dc
Height	7.3mm
Operating Force	0.98 N
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Operating Temperature Range	-25 → +70°C
Mechanical Life	1000000Operations
Contact Material	Gold Plated

Omron B3F-1050, White Plunger Tactile Switch, SPST 50 mA @ 24 V dc 3mm Through Hole

DOWNLOAD CATALOG

B3F-1050 Datasheet 0900766b813ecc69
