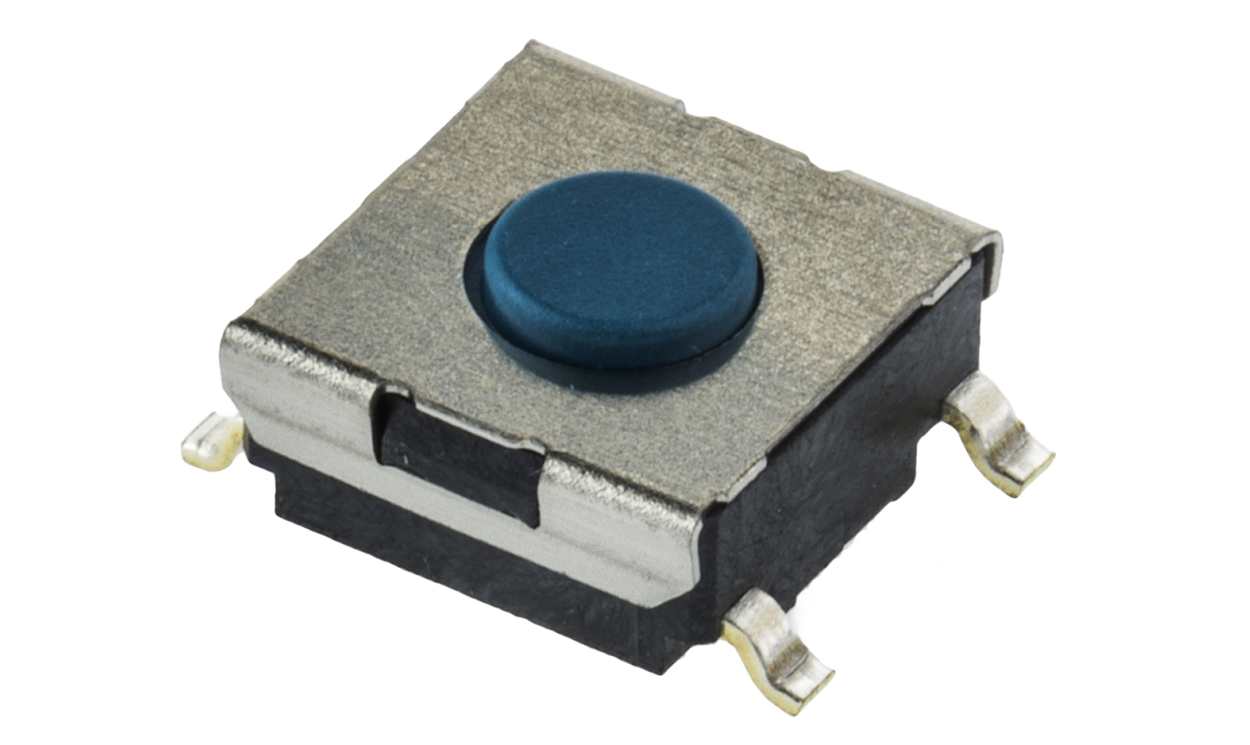

Omron B3FS-1005, IP00 Tactile Switch, SPST 50 mA @ 24 V dc 0.5mm Through Hole

Name: Omron B3FS-1005, IP00 Tactile Switch, SPST 50 mA @ 24 V dc 0.5mm Through Hole
Brand: OMRON
SKU: B3FS-1005
Availability: InStock

Part Number : B3FS-1005

Availability: low stock

Detailed Description
Specifications
Downloads

Tactile Switches Omron B3FS

Ideal for applications such as audio, office and communications equipment, measuring instruments, TVs, PVRs, etc.,Models available with flat and projected actuators

Positive click action plus a long life equal to that of a no-contact switch.

Note

Manufacturers part numbers with the P suffix are supplied on tape reel or strip and part numbers without the P suffix are bag quantity

Tactile

Brand	Omron
Contact Configuration	SPST
Terminal Type	Surface Mount
Switch Operation	Momentary
Actuator Length	0.5mm
Actuator Type	Tactile
Length	6.3mm
Width	6mm
Dimensions	6.30 x 6 x 3.10mm
Mounting Type	Through Hole
Contact Current Rating	50 mA @ 24 V dc
IP Rating	IP00
Operating Force	2.55 N
Height	3.1mm
Maximum Operating Temperature	+70°C
Contact Material	Silver Plated
Minimum Operating Temperature	-25°C
Operating Temperature Range	-25 → +70°C
Mechanical Life	100000Operations
