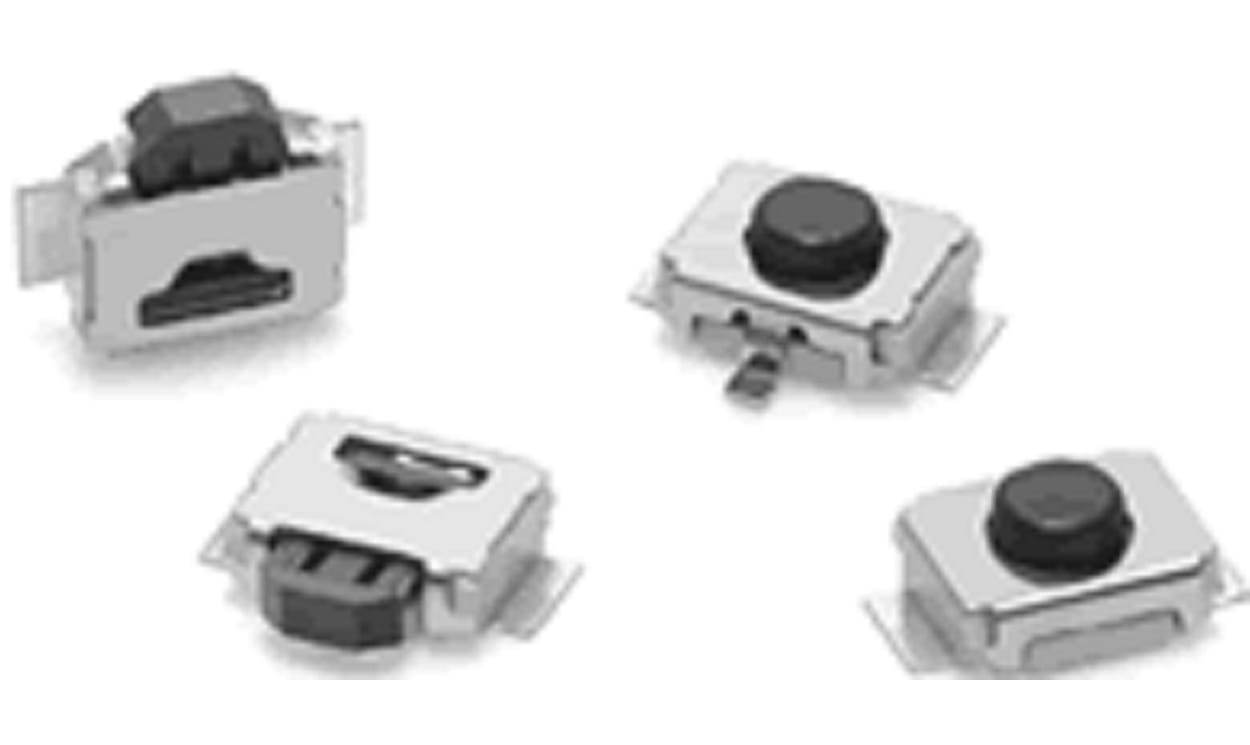

Name: Omron B3U-3100PM, IP40 Side Tactile Switch, SPST 0.05A @12V dc VA Surface Mount
Brand: OMRON
SKU: B3U-3100PM
Availability: OutOfStock

Omron B3U-3100PM, IP40 Side Tactile Switch, SPST 0.05A @12V dc VA Surface Mount

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron B3U-3100PM, IP40 Side Tactile Switch, SPST 0.05A @12V dc VA Surface Mount

Part Number : B3U-3100PM

Availability: Sold out

Detailed Description
Specifications
Downloads

The Omron switch is ultra-small surface-mounting tactile switches wIth high contact reliabilIty (1.2 x 3 x 2.5 mm (h x w x d). Smallest class in the industry for high-densIty mounting of compact devices.

Contact form SPST-NO
Insulation resistance 100 MΩ minimum (at 100 VDC with insulation tester)
Dielectric strength 250 VAC, 50/60 Hz for 1 min
Bounce time 5 ms max
Vibration resistance 10 to 55 Hz, 1.5 mm double amplitude
Shock resistance 1,000 m/s2 max
Degree of protection IEC IP40

Brand	Omron
Contact Configuration	SPST
Terminal Type	SMD Tab
Switch Operation	(On)-Off
Actuator Type	Side
Mounting Type	Surface Mount
Contact Current Rating	0.05A @12V dc VA
IP Rating	IP40
