Omron B3W-4055, IP67 Yellow Plunger Tactile Switch, SPST 50 mA @ 24 V dc 3.75mm Through Hole

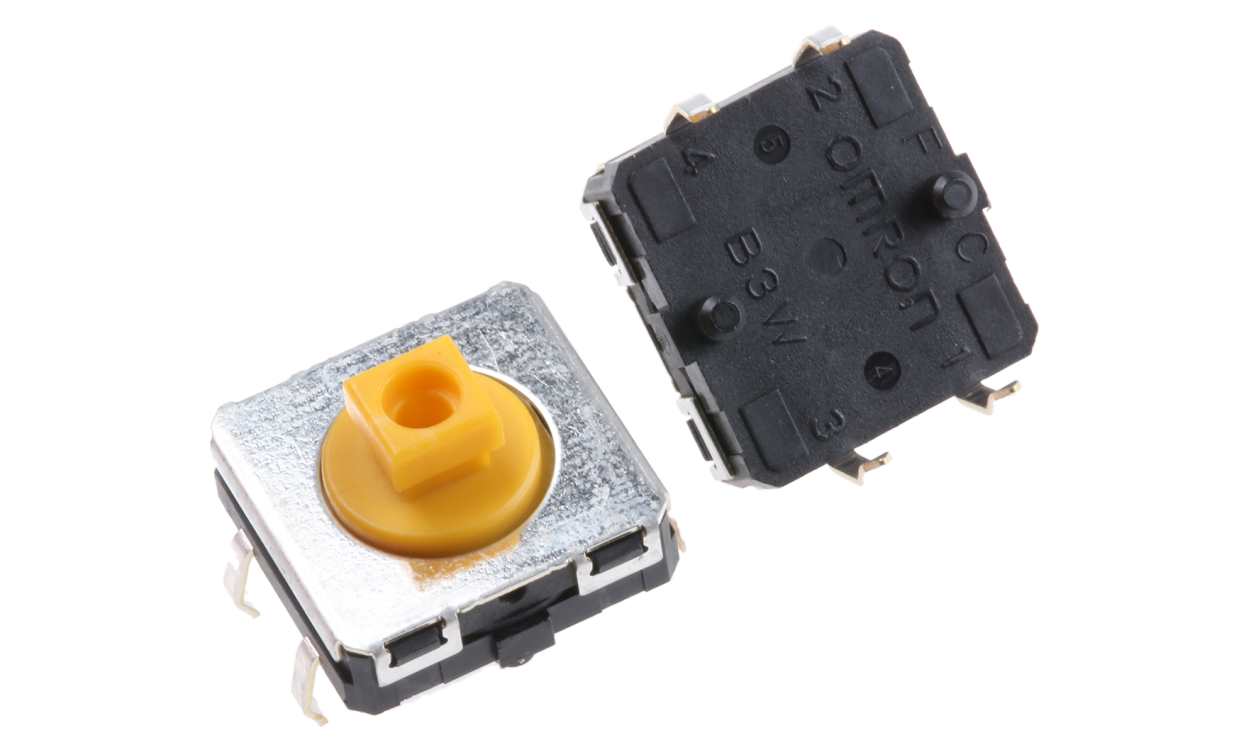

Name: Omron B3W-4055, IP67 Yellow Plunger Tactile Switch, SPST 50 mA @ 24 V dc 3.75mm Through Hole
Brand: OMRON
SKU: B3W-4055
Availability: OutOfStock

Part Number : B3W-4055

Availability: Sold out

Detailed Description
Specifications
Downloads

Tactile Switches Omron B3W 4000 series (12 mm Sealed Type)

Internal sealed construction allows immersion cleaning with alcohol solvents after soldering
Snap-action contact construction for a positive click action

Tactile

Brand	Omron
Contact Configuration	SPST
Terminal Type	Through Hole
Actuator Length	3.75mm
Actuator Colour	Yellow
Actuator Type	Plunger
Length	12mm
Width	12mm
Dimensions	12 x 12 x 7.3mm
Mounting Type	Through Hole
Contact Current Rating	50 mA @ 24 V dc
IP Rating	IP67
Operating Force	3.43 N
Height	7.3mm
Operating Temperature Range	-25 → +70°C
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-25°C
Mechanical Life	1000000Cycles
