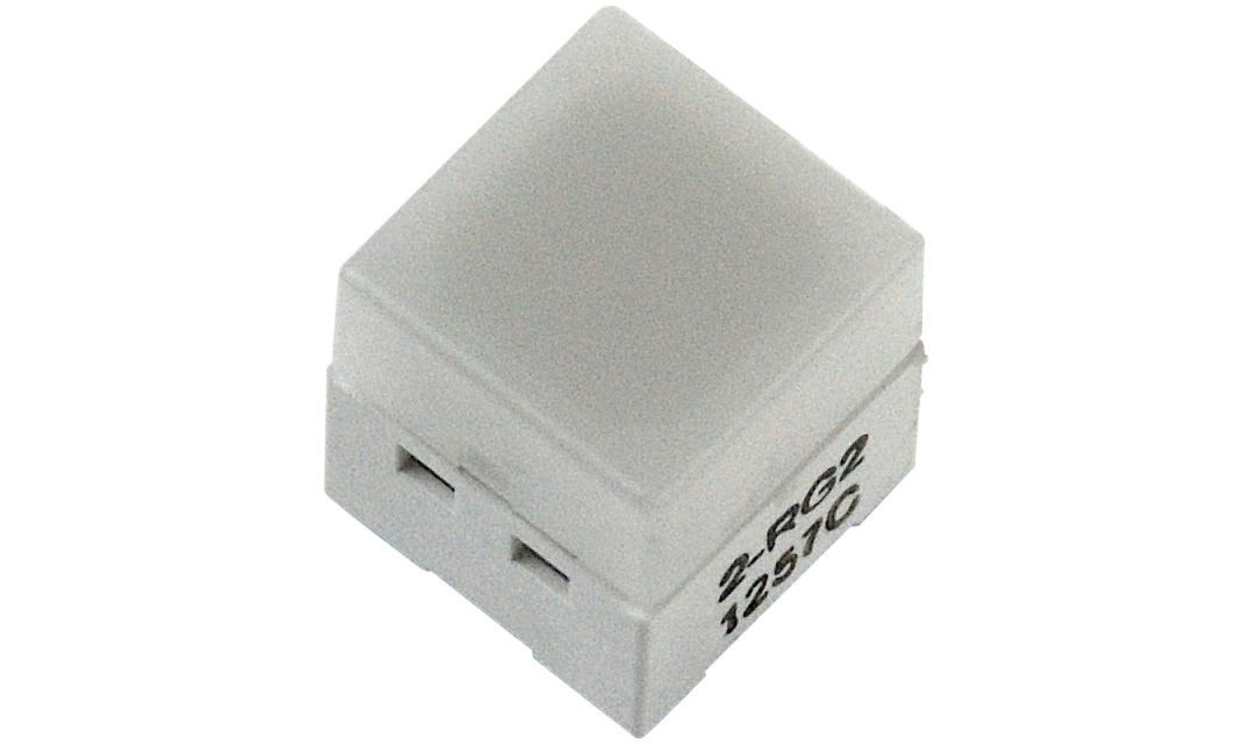

Omron B3W-9000-RG2N, Green, Red Cap Tactile Switch, SPST 50 mA @ 24 V dc 5.2mm

Name: Omron B3W-9000-RG2N, Green, Red Cap Tactile Switch, SPST 50 mA @ 24 V dc 5.2mm
Brand: General Tech Services LLC
SKU: B3W-9000-RG2N
Availability: OutOfStock

Part Number : B3W-9000-RG2N

Availability: Sold out

Detailed Description
Specifications

Illuminated Tactile Switches (B3W-9)

Compact construction (10x10x11mm height)
Bright and uniform colour via uniquely constructed diffusion panel
Sealed switch part provides high contact reliability against dust
Available with single or twin blue, green, red or yellow LED's fitted with a variety of cap colours
Momentary, SPST-NO, switching capacity 1 to 50mA, 5 to 24Vdc
Operating force 1.57N
Recommended LED forward current for red, green and yellow (20mA) and for bright green and blue (10mA)
Operating temperature range of -25 to 70°C @ 60 percent maximum humidity (with no icing or condensation)

Brand	Omron
Contact Configuration	SPST
Terminal Type	Through Hole
Switch Operation	Momentary
Actuator Length	5.2mm
Actuator Colour	Green, Red
Actuator Type	Cap
Illuminated	Yes
Contact Current Rating	50 mA @ 24 V dc
Operating Force	1.57 N
Operating Temperature Range	-25 → +70°C
Mechanical Life	1000000Operations
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
