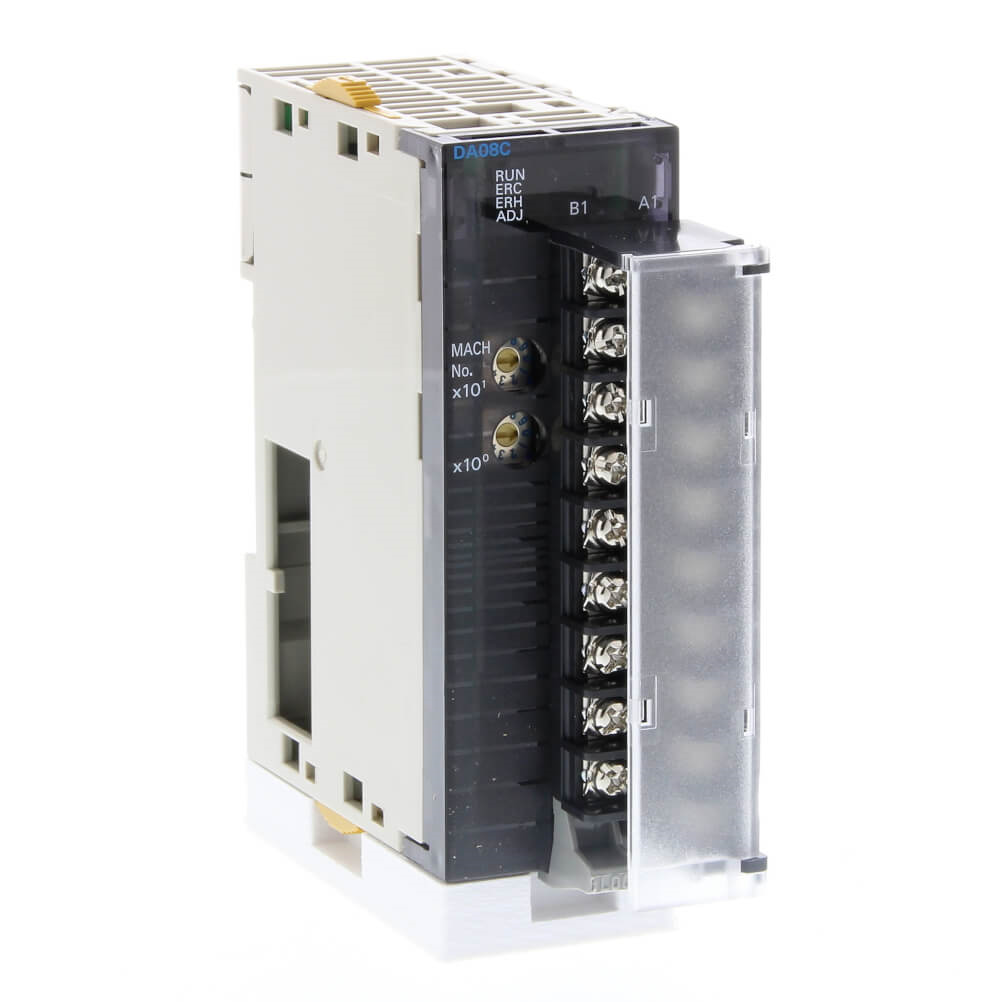

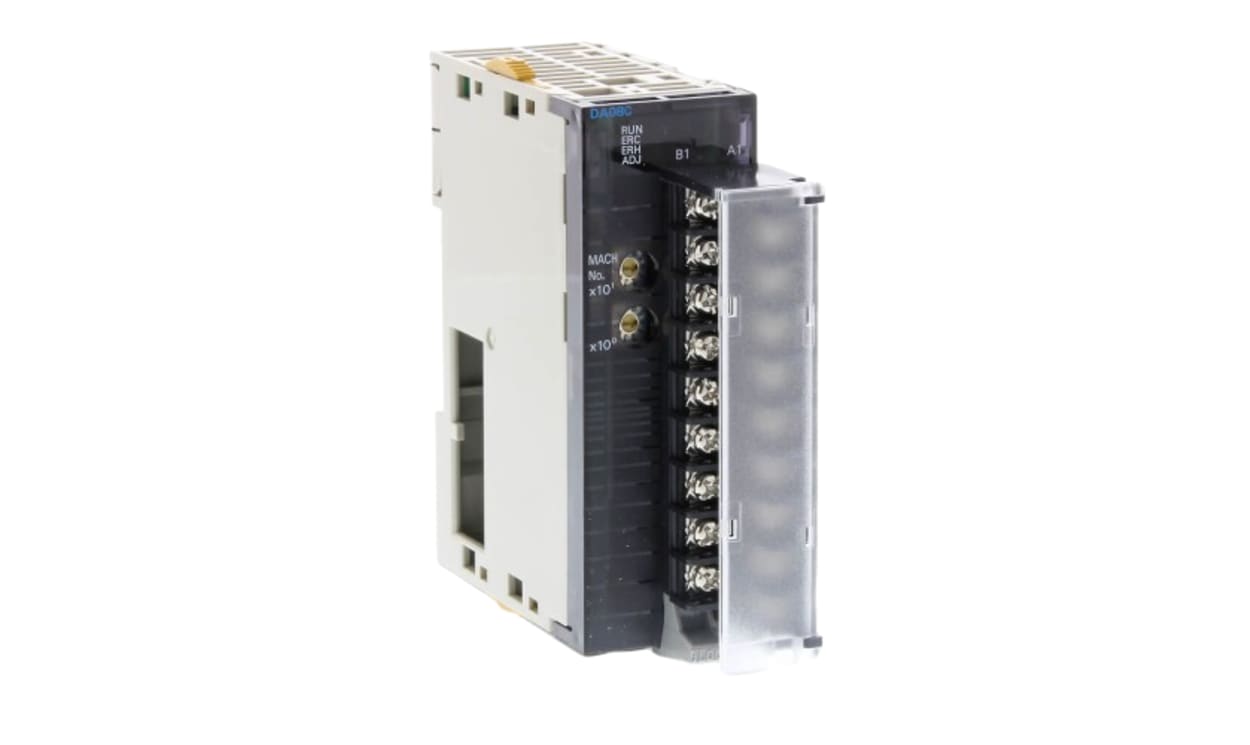

Omron CJ1W-DA08C, CJ Series PLC I/O Module for Use with CJ1W Series, Analogue

Name: Omron CJ1W-DA08C, CJ Series PLC I/O Module for Use with CJ1W Series, Analogue
Brand: OMRON
SKU: CJ1W-DA08C
Availability: OutOfStock

Part Number : CJ1W-DA08C

Analog output unit, 8 x outputs 4 to 20 mA, resolution 12 bit, screw terminal
Â

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron Series CJ PLC I/O Module, 8 Outputs, 24V DC Supply Voltage - CJ1W-DA08C

This PLC I/O module is an essential component for industrial automation systems. Designed to provide 8 analogue outputs, it operates at a supply voltage of 24V DC. With screw termination options, it is compatible with the CJ1W Series and is built to perform effectively even in harsh environments, supporting a maximum operating temperature of +55°C.

Features & Benefits

• 8 analogue outputs facilitate precise signal control
• 24V DC supply allows integration into varied systems
• High-temperature capability ensures reliability in demanding settings
• Designed for easy integration with CJ series I/O modules
• Delivers up to 20mA output per channel for robust performance

Applications

• Used in automated manufacturing processes
• Ideal for data acquisition in industrial settings
• Functions well in machine control systems
• Supports diverse electronic requiring analogue outputs

What is the significance of the maximum operating temperature rating?

The maximum operating temperature of +55°C ensures that the module maintains its performance in high-heat environments, crucial for reliability in automated systems.

How does the screw terminal design benefit installation?

The screw terminal design provides secure and stable connections, reducing the likelihood of loose wiring and enhancing overall system reliability.

What connection options are provided for integration with other components?

This module supports screw termination, allowing straightforward and secure connections to various industrial automation components, facilitating seamless integration.

How can the module handle different signal types and outputs?

With multiple analogue outputs, it can handle varying signal types, making it versatile for different applications requiring precise control and data handling.

Omron CJ1M Digital and Analogue I/O Modules

CJ1 Digital I/O, Analogue I/O, and Communication modules clip together to the right of the CPU in any combination up to a maximum of 10 modules. A further 10 modules can be connected to a CJ1M-CPU13 or CJ1M-CPU23 based system as part of an expansion assembly.

Dimensions: Height 90mm, Width 31mm, Depth 89mm
All modules have removable screw terminal blocks for I/O connections, except screwless (SL)

Brand	Omron
Accessory Type	PLC I/O Module
Series	CJ
Number of Outputs	8
Output Type	Analogue
For Use With	CJ1W Series
Output Current	20 mA
Termination	Screw
Dimensions	90 x
