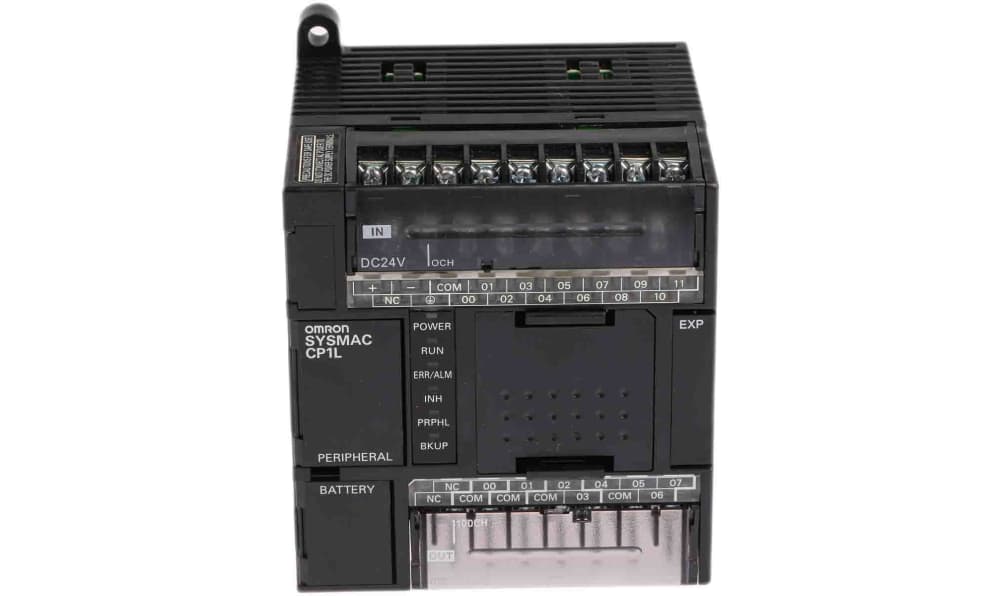

Omron CP1L-L20DR-D, CP1L Series PLC CPU for Use with SYSMAC CP1L Series, Relay Output, 12 (DC)-Input, PNP/NPN Input

Name: Omron CP1L-L20DR-D, CP1L Series PLC CPU for Use with SYSMAC CP1L Series, Relay Output, 12 (DC)-Input, PNP/NPN Input
Brand: OMRON
SKU: CP1L-L20DR-D
Availability: OutOfStock

Part Number : CP1L-L20DR-D

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron CP1L Series PLC CPU, 86mm Length, Computer Programming Interface - CP1L-L20DR-D

This PLC CPU is intended for integration into industrial automation systems. Part of the Omron CP1L series, it provides functionality and user-friendliness for a range of control tasks. This unit is suitable for both simple and complex processes, boasting a compact design that facilitates efficient integration in various settings.

Features & Benefits

• Includes a USB communication interface for straightforward connectivity
• Utilises ladder logic programming for easy control setups
•A battery backup to maintain operational integrity

Applications

• Employed in process automation to enhance efficiency
• Utilised in building automation systems for monitoring and control
• Suitable for data acquisition in testing environments

What is the maximum number of analogue inputs supported?

It supports up to 8 analogue inputs, providing flexibility in data handling across various applications.

How is the programming interface accessed?

The programming interface can be accessed via a computer, enabling straightforward programming and configuration.

What is the memory capacity for programming steps?

It has a programme memory capacity of up to 5000 steps, accommodating complex application designs.

Is installation on a DIN rail possible?

Yes, the unit is designed for mounting on DIN rail, simplifying the installation process in control panels.

Brand	Omron
Manufacturer Series	CP1L
Number of Inputs	12 (DC)
Output Type	Relay
For Use With	SYSMAC CP1L Series
Input Type	PNP/NPN
Number of Digital Inputs	12
Number of Outputs	8 (Relay)
Voltage Category	20.4 → 26.4 V dc
Network Type	USB
Number of Digital Outputs	8
Programming Language Used	Ladder Logic
Mounting Type	DIN Rail
Number of Analogue Outputs	8
Number of Analogue Inputs	8
Dimensions	86 x 110 x 85 mm
Minimum Operating Temperature	0°C
Output Current	2 A
Communication Port Type	USB 1.1
Width	86mm
