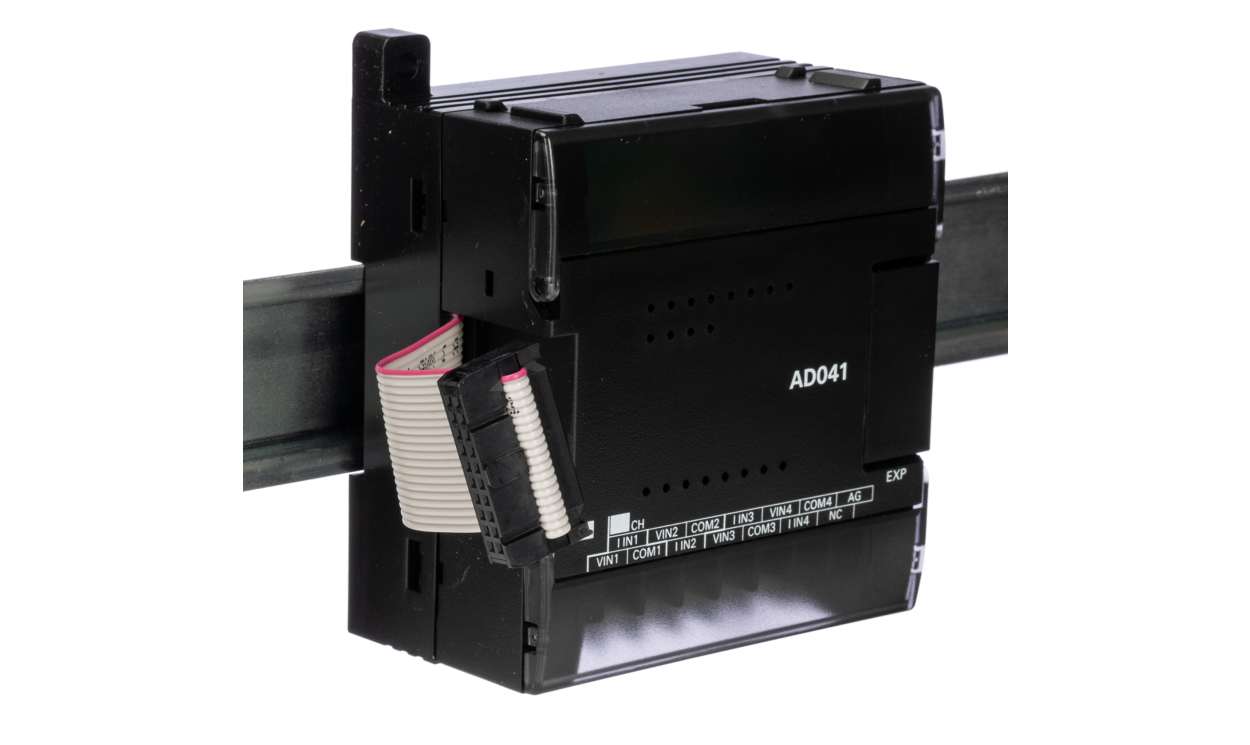

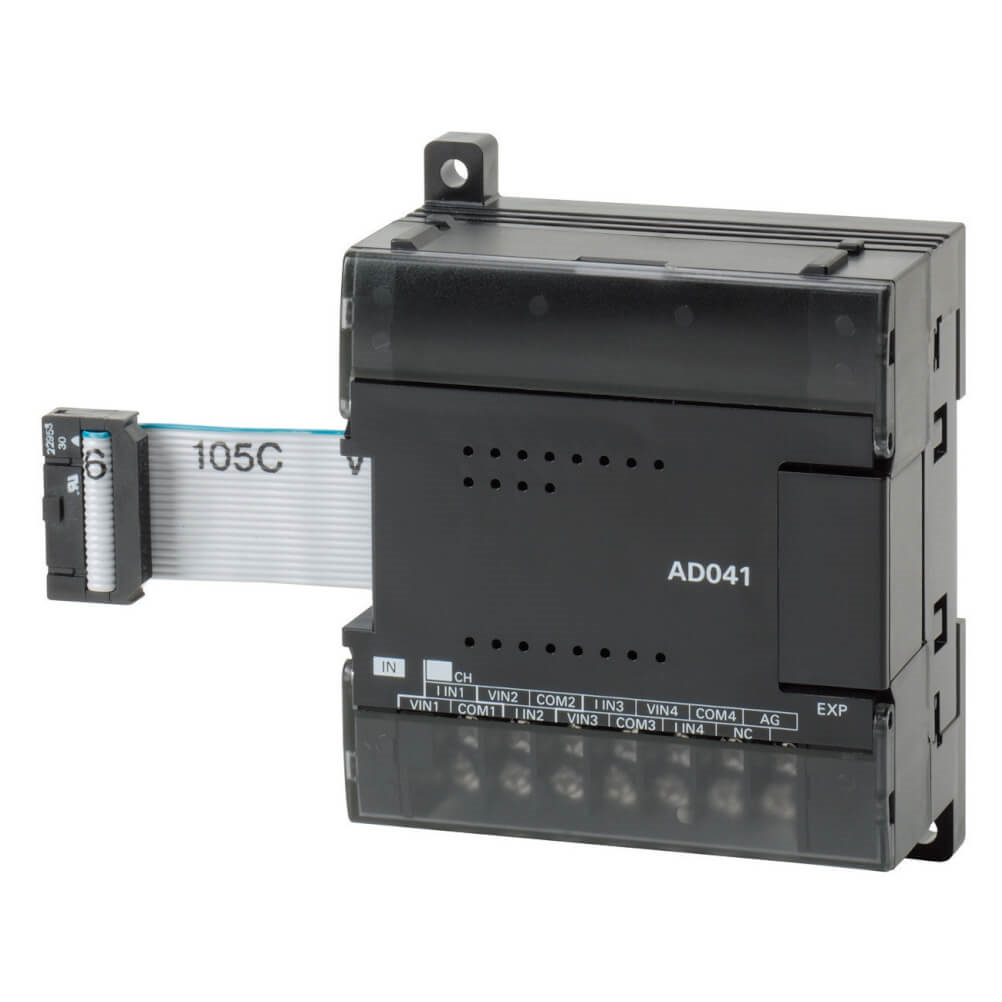

Omron CP1W-AD041, PLC Expansion Module for Use with PLC Module, Analogue

Name: Omron CP1W-AD041, PLC Expansion Module for Use with PLC Module, Analogue
Brand: OMRON
SKU: CP1W-AD041
Availability: OutOfStock

Part Number : CP1W-AD041

I/O expansion unit, 4 x analog inputs 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4 to 20 mA, resolution 1:6000

Availability: Sold out

Detailed Description
Specifications
Features

Omron CP1W Series PLC Expansion Module, Analogue Input, 90x86x50mm - CP1W-AD041

This PLC expansion module enhances automation systems by adding four analogue input channels to compatible PLC systems, essential for applications requiring precise data acquisition and process control in industrial automation.

Features & Benefits

• Offers four channels for analogue input to support a range of applications
• Functions efficiently at temperatures up to +60°C for high-temperature environments
• Compact design facilitates integration into existing setups
• Maintains high accuracy for process measurements
• Compatible with various Omron PLC modules to enhance functionality
• Simplifies installation and maintenance in automation systems

Applications

• Used with Omron PLC systems for process control
• Employed in temperature monitoring applications using thermocouples
• Implemented in systems necessitating precise analogue signal processing
• Supports integration within compact machines for efficient control
• Suitable for high-speed data logging and monitoring

What type of signals can be processed with this extension?

It is designed to manage a variety of analogue signals commonly found in industrial settings.

How many modules can be connected to a single PLC setup?

Multiple modules can be connected, allowing for scalable solutions based on automation requirements.

Is it compatible with other types of sensors?

Yes, it integrates effectively with various standard sensors, accommodating diverse applications.

What steps are involved in installing this module?

Installation involves mounting and connecting to the appropriate PLC ports as outlined in the user manual.

Can this module maintain performance in extreme conditions?

Yes, it is specifically designed to operate at high temperatures, ensuring durability in challenging environments.

Omron CP1L CPU's, Expansion Modules and Accessories

Omron's CP1L series offers the compactness of a micro-PLC with the capability of a modular PLC. The range is not only compact, it is scaleable too, and has a faster processing speed than other controllers.

Brand	Omron
Accessory Type	PLC Expansion Module
Number of Inputs	4
Input Type	Analogue
For Use With	PLC Module
Dimensions	90 x 86 x 50 mm

I/O expansion unit, 4 x analog inputs 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4 to 20 mA, resolution 1:6000
