Omron D2D-2000, Door Micro Switch, Plunger, SPDT 10 A @ 250 V ac, -25 → +85°C

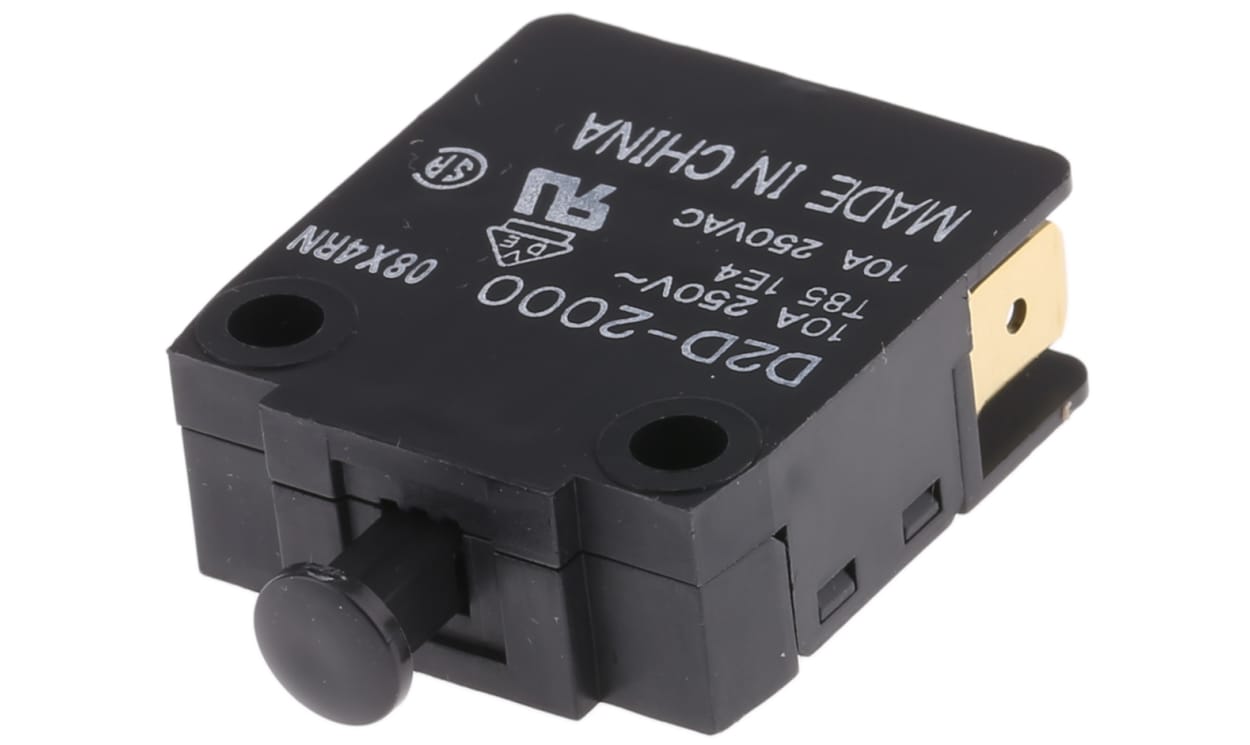

Name: Omron D2D-2000, Door Micro Switch, Plunger, SPDT 10 A @ 250 V ac, -25 → +85°C
Brand: OMRON
SKU: D2D-2000
Availability: OutOfStock

Part Number : D2D-2000

Availability: Sold out

Detailed Description
Specifications
Downloads

Door Interlock Switches with Failsafe Mechanism

Door interlock switch with fail safe mechanisms with double return spring and direct positive contact opening features.

RoHS compliant
3mm contact gap (Standard Models)
1mm contact gap (Pull On Lock Models)
Conforms to class II of VDE Insulation

Approvals

UL, CSA, VDE, TUV

Brand	Omron
Actuator Type	Plunger
Contact Configuration	SPDT
Contact Current Rating	10 A @ 250 V ac
Terminal Type	Tab
Mechanical Life	1000000Operations
Operating Force	2.94 N
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+85°C
Operating Temperature Range	-25 → +85°C
Depth	13mm

Omron D2D-2000, Door Micro Switch, Plunger, SPDT 10 A @ 250 V ac, -25 → +85°C

DOWNLOAD CATALOG

D2D-2000 VDE - Zertifikat A700000009518965
