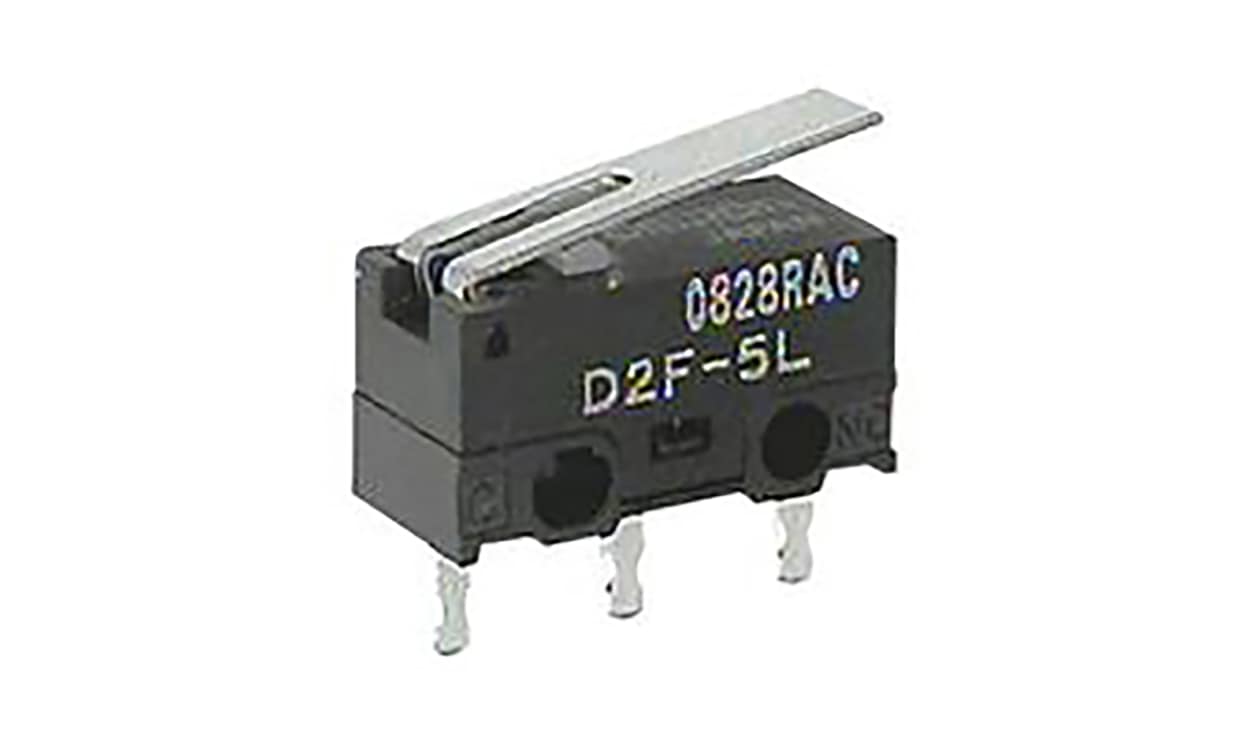

Omron D2F-5L, Microswitch, PCB Pin Terminal, 5 A, SPDT

Name: Omron D2F-5L, Microswitch, PCB Pin Terminal, 5 A, SPDT
Brand: OMRON
SKU: D2F-5L
Availability: InStock

Part Number : D2F-5L

Availability: low stock

Detailed Description
Specifications
Downloads

Ultra Subminiature Basic Switch with plenty of terminal variations

Incorporating a snapping mechanism made with two highly precise split springs that ensures long durability.
Using insertion molded terminals that prevents flux penetration.
In addition to self-clinching PCB, left-angled, right-angled terminals, 2 types of soldering terminals are available.
Lineup of 5A type for high load applications.

Brand	Omron
Terminal Type	PCB Pin
Contact Current Rating	5 A
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Contact Material	Silver Alloy
Voltage Rating	250V

Omron D2F-5L, Microswitch, PCB Pin Terminal, 5 A, SPDT

DOWNLOAD CATALOG
