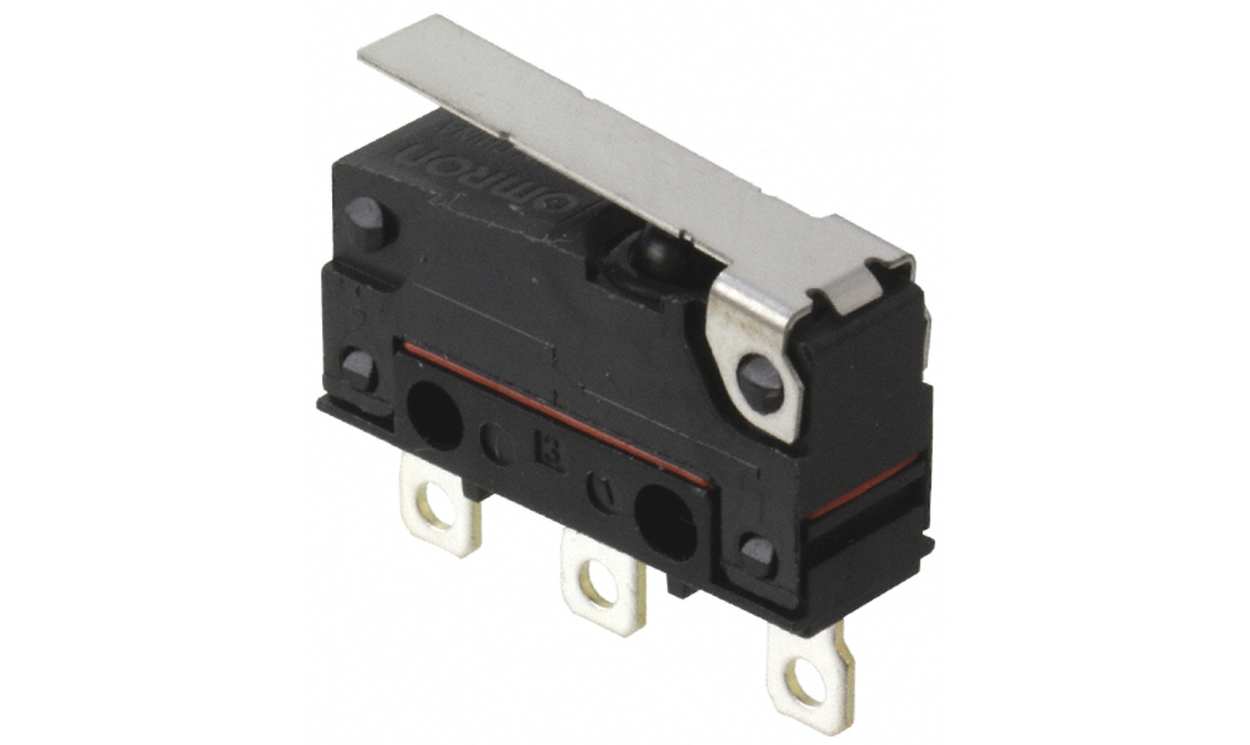

Omron D2SW-P01L1H, Hinge Lever Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SPDT, IP67

Name: Omron D2SW-P01L1H, Hinge Lever Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SPDT, IP67
Brand: OMRON
SKU: D2SW-P01L1H
Availability: OutOfStock

Part Number : D2SW-P01L1H

Availability: Sold out

Detailed Description
Specifications
Downloads

Sealed Miniature Microswitches

High quality sealed miniature microswitch in industry standard V4 housing

Monoblock construction assures high sealing capability and is ideal for dusty places or where water is sprayed
IEC IP50 rated (solder/pcb terminal), IEC IP67 rated (wire lead )
RoHS compliant
Contact rating: 3A@30Vdc/125Vac, 2A@250Vac
Contact configuration: SPDT
Operating temperature range: -40 to +80°C

Brand	Omron
Actuator Type	Hinge Lever
Terminal Type	Solder
Contact Current Rating	100 mA @ 30 V dc
Contact Configuration	SPDT
IP Rating	IP67
Operating Force	0.6 N
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+70°C
Contact Material	Gold Alloy
Mechanical Life	1000000Operations
Release Force	0.05N
Operating Temperature Range	-20 → +70°C
