Omron D2VW-01-1MS, Pin Plunger Micro Switch, Wire Lead Terminal, 100 mA @ 30 V dc, SP-CO, IP67

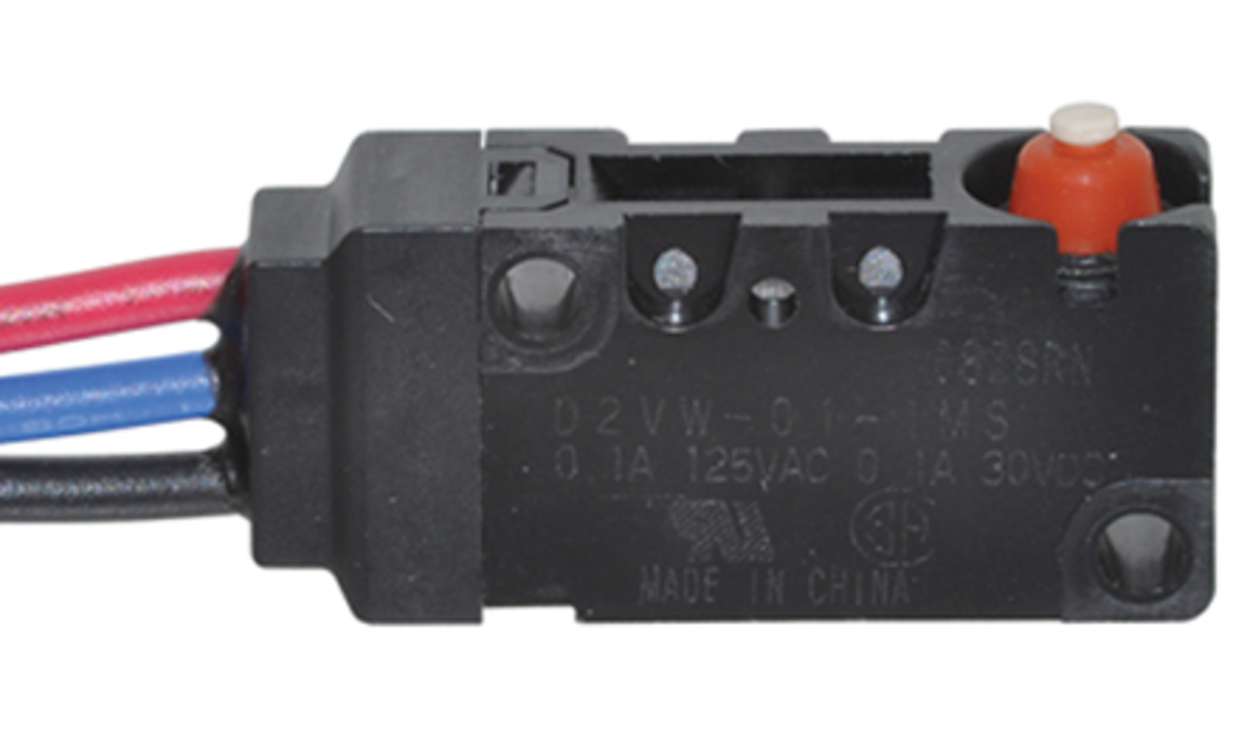

Name: Omron D2VW-01-1MS, Pin Plunger Micro Switch, Wire Lead Terminal, 100 mA @ 30 V dc, SP-CO, IP67
Brand: OMRON
SKU: D2VW-01-1MS
Availability: OutOfStock

Part Number : D2VW-01-1MS

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Subminiature Sealed (100 mA)

Sealed V3 style microswitch conforming to EN61058-1

Sealed to IEC IP50 (solder terminal type)
Sealed to IEC IP67 (wire lead type)
RoHS compliant
Switches up to 100 mA @ 30 Vdc
Contact configuration: SPDT

Approvals

Approvals: UL, CSA, VDE

Brand	Omron
Actuator Type	Pin Plunger
Terminal Type	Wire Lead
Contact Current Rating	100 mA @ 30 V dc
Contact Configuration	SP-CO
IP Rating	IP67
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Switch Housing	D2 Housing
Contact Material	Gold Alloy
Mechanical Life	10000000Operations
Operating Temperature Range	-40 → +85°C
