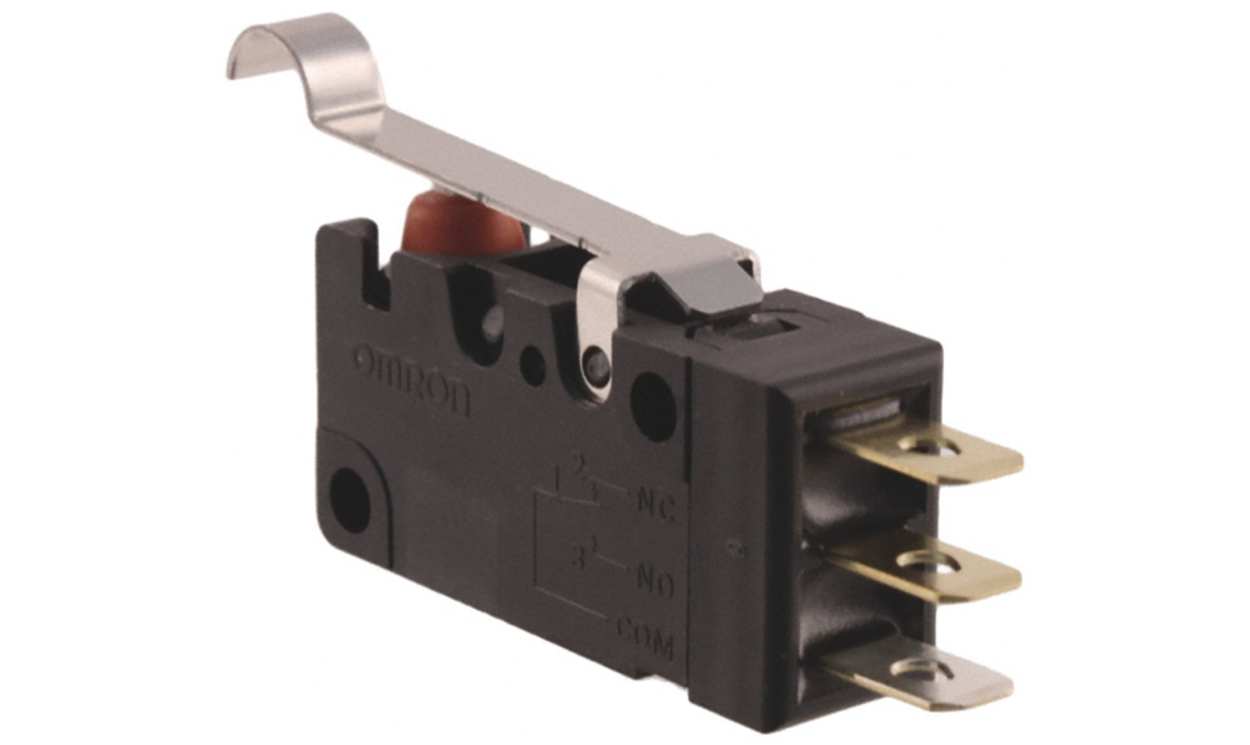

Omron D2VW-01L3-1(CHN), Simulated Roller Lever Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SPDT, IP67

Name: Omron D2VW-01L3-1(CHN), Simulated Roller Lever Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SPDT, IP67
Brand: OMRON
SKU: D2VW-01L3-1(CHN)
Availability: OutOfStock

Part Number : D2VW-01L3-1(CHN)

Availability: Sold out

Detailed Description
Specifications

Omron Subminiature Sealed (100 mA)

Sealed V3 style microswitch conforming to EN61058-1

Sealed to IEC IP50 (solder terminal type)
Sealed to IEC IP67 (wire lead type)
RoHS compliant
Switches up to 100 mA @ 30 Vdc
Contact configuration: SPDT

Approvals

Approvals: UL, CSA, VDE

Brand	Omron
Actuator Type	Simulated Roller Lever
Terminal Type	Solder
Contact Current Rating	100 mA @ 30 V dc
Contact Configuration	SPDT
IP Rating	IP67
Operating Force	1.18 N
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Contact Material	Gold Alloy
Mechanical Life	10000000Operations
Release Force	0.15N
Operating Temperature Range	-40 → +85°C
