Omron D3V-16-1A4, Pin Plunger Micro Switch, Solder, Tab Terminal, 16 A @ 250 V ac, SPDT, IP40

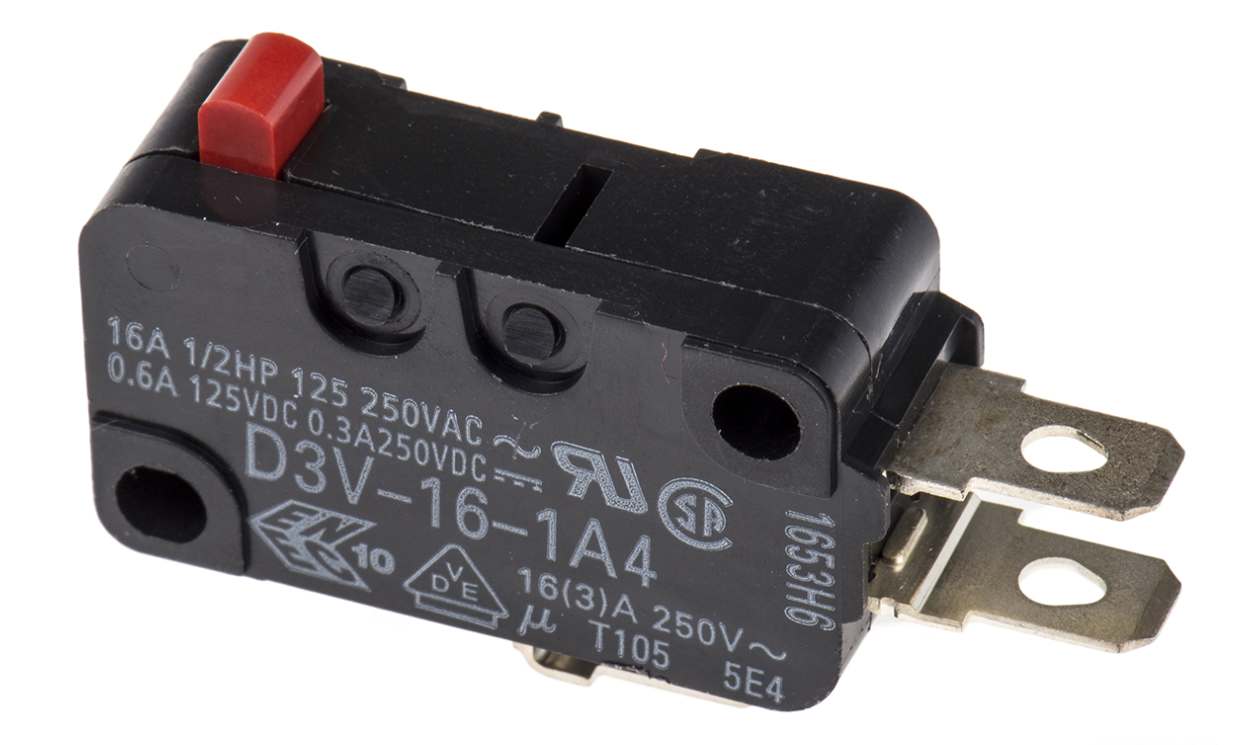

Name: Omron D3V-16-1A4, Pin Plunger Micro Switch, Solder, Tab Terminal, 16 A @ 250 V ac, SPDT, IP40
Brand: General Tech Services LLC
SKU: D3V-16-1A4
Availability: OutOfStock

Part Number : D3V-16-1A4

Availability: Sold out

Detailed Description
Specifications

Phoenix Contact Micro Switch, 16A @ 250V AC, SPDT Contact Configuration - D3V-16-1A4

This micro switch is a robust device designed for reliable operation in various applications. Known for its pin plunger mechanism, it offers a contact current rating of 16A at 250V AC. The IP40 rating ensures that it remains protected against solid objects larger than m.

Features & Benefits

• Self-cleaning contacts enhance reliability over time
• Silver alloy switch material ensures excellent conductivity
• High rating micro switch handles up to 16A power load
• Wide temperature range from -25°C to +105°C for versatile use
• Mechanical life of 10million operations guarantees longevity
• Solder tab switch configuration allows for flexible connections

Applications

• Utilised in automation control systems
• Ideal for electrical and mechanical equipment
• Employed in safety and alarm systems
• Suitable for industrial machinery
• Perfect for OEM products requiring compact switch solutions

What is the maximum operating force of the pin plunger mechanism?

The pin plunger micro switch has an operating force of 100gf, providing a manageable actuation pressure suitable for numerous applications.

How does the silver alloy material impact performance?

The silver alloy enhances conductivity and reduces contact resistance, ensuring efficient operation while extending the device's lifespan.

What environmental conditions can this switch withstand?

The switch is rated for use in temperatures from -25°C to +105°C and is designed to operate effectively in environments with humidity levels up to 85%.

Can this switch be easily integrated into existing systems?

Yes, the solder tab switch configuration allows for easy mounting and integration into various electronic and mechanical systems, adapting to many application needs.

Brand	Omron
Actuator Type	Pin Plunger
Terminal Type	Solder, Tab
Contact Current Rating	16 A @ 250 V ac
Contact Configuration	SPDT
IP Rating	IP40
Operating Force	100 gf
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+105°C
Contact Material	Silver Alloy
Mechanical Life	10000000Operations
Voltage Rating	250V
Release Force	15gf
Operating Temperature Range	-25 → +105°C
