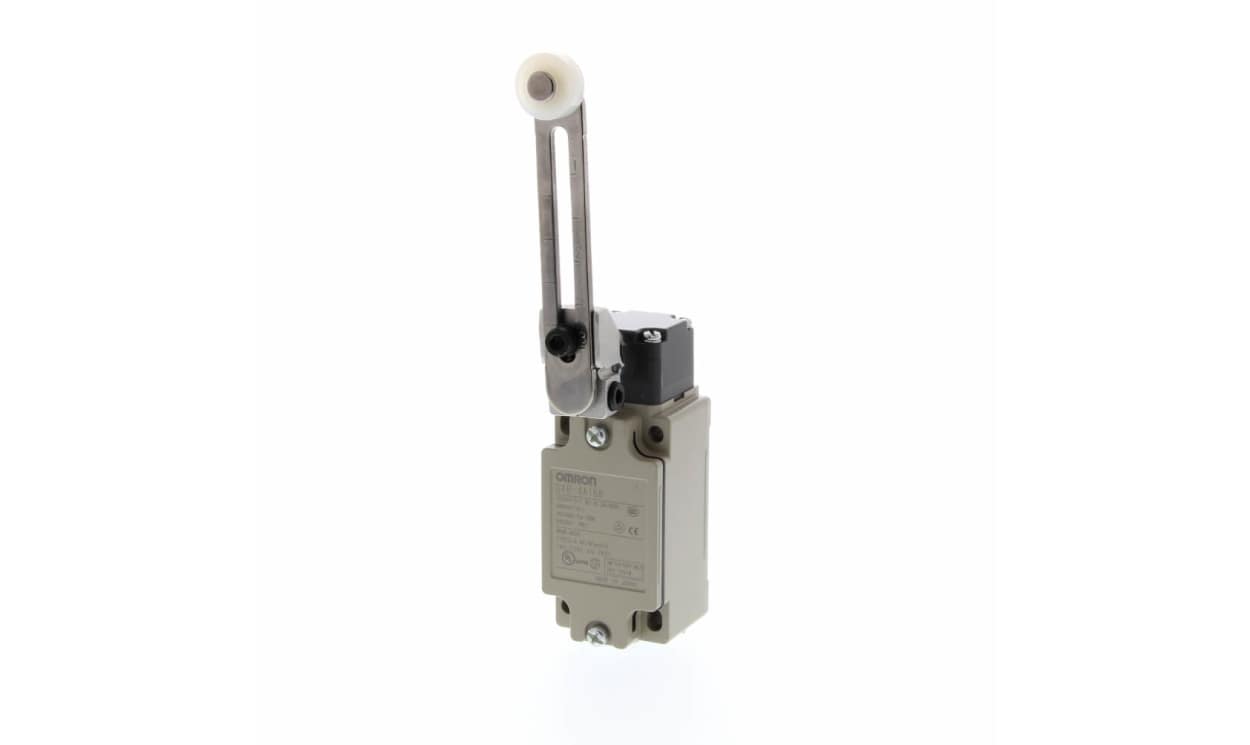

Name: Omron D4B-4A16N, D4B-N Series Adjustable Roller Lever Limit Switch, 2NC, IP67, DPST, Metal Housing, 400V ac Max, 20A Max
Brand: OMRON
SKU: D4B-4A16N
Availability: OutOfStock

Omron D4B-4A16N, D4B-N Series Adjustable Roller Lever Limit Switch, 2NC, IP67, DPST, Metal Housing, 400V ac Max, 20A Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4B-4A16N, D4B-N Series Adjustable Roller Lever Limit Switch, 2NC, IP67, DPST, Metal Housing, 400V ac Max, 20A Max

Part Number : D4B-4A16N

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron D4B-N Series Limit Switch, 20A Maximum Current, IP67 - D4B-4A16N

This limit switch is a versatile and robust component suitable for various applications in the automation and mechanical industries. Constructed with a durable metal housing, it features an adjustable roller lever, ensuring adaptability for different operational needs. With an IP67 rating, the switch provides excellent protection against dust and water intrusion, making it dependable in challenging environments.

Features & Benefits

• Designed for high durability with a mechanical life of 30 million cycles
• IP67 rated for superior protection against dust and water
• Adjustable roller lever allows for flexible installation angles
• Supports a maximum current of 20A catering to high power needs
• Certified by CSA and UL, ensuring compliance with safety standards
• Operates efficiently in extreme temperatures from -40°C to +80°C

Applications

• Utilised in conveyor systems to detect end positions
• Suitable for controlling machinery and equipment movements
• Employed in safety interlock systems for enhanced operational safety
• Ideal for integration in industrial automation

What is the importance of an IP67 rating for this switch?

An IP67 rating indicates that the switch is completely dust-tight and can withstand immersion in water, making it suitable for harsh environmental conditions.

How is the adjustable roller lever beneficial for installation?

The adjustable roller lever enables customised positioning, allowing for precise alignment with moving parts in various applications.

Can this switch handle high-temperature environments?

Yes, it is capable of operating efficiently in temperatures ranging from -40°C to +80°C, ensuring reliable performance in extreme conditions.

What certifications does this switch hold?

It is certified by both CSA and UL, ensuring that it meets essential safety and quality standards for industrial applications.

Brand	Omron
Actuator Type	Adjustable Roller Lever
Pole and Throw Configuration	DPST
Normal State Configuration	2NC
IP Rating	IP67
Maximum Current	20A
Housing Material	Metal
Maximum AC Voltage	400V
Connection Type	M20
Series	D4B-N
Action Type	Slow Action
Minimum Operating Temperature	-40°C
Standards Met	CSA, UL
Maximum Operating Temperature	+80°C
Mechanical Life	30000000Cycles
Operating Force	9.41 N

Omron D4B-4A16N, D4B-N Series Adjustable Roller Lever Limit Switch, 2NC, IP67, DPST, Metal Housing, 400V ac Max, 20A Max

DOWNLOAD CATALOG

D4B-4A16N Selection Guide - Safety Components A700000014531817
