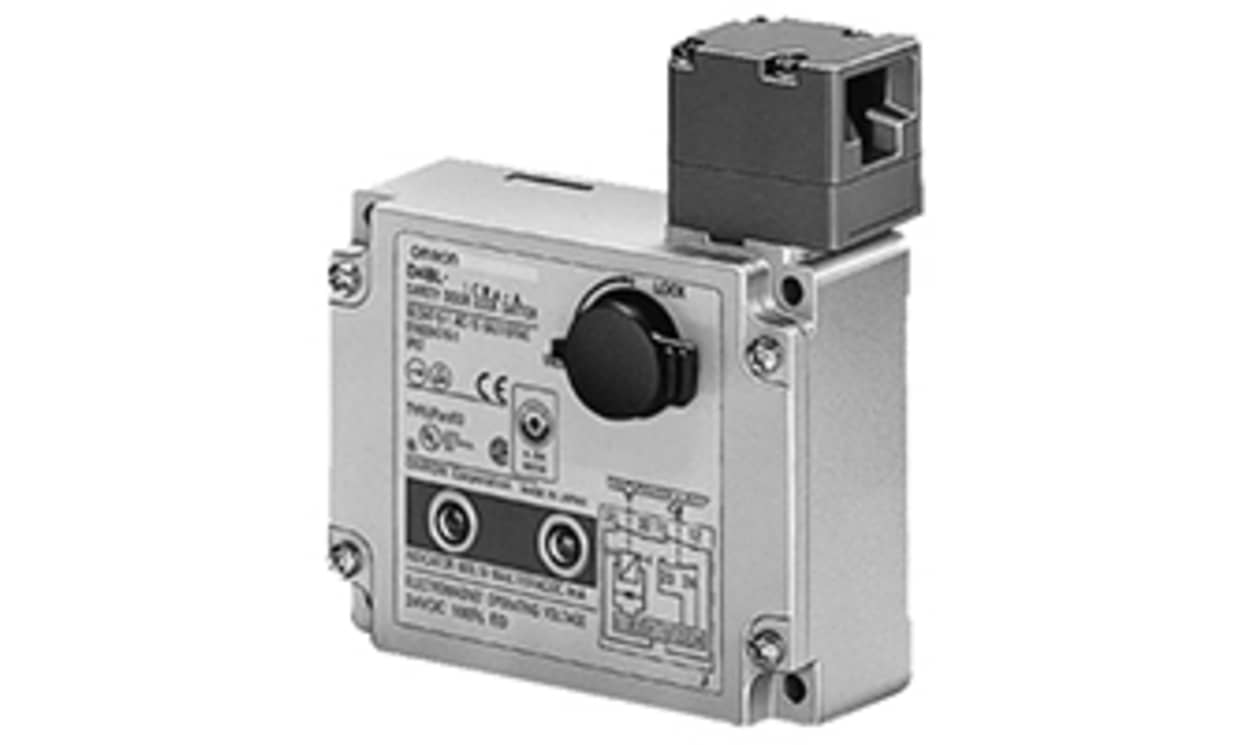

Name: Omron D4BL-1CRA-A, D4BL Series Solenoid Interlock Switch, Power to Unlock, 24V dc
Brand: OMRON
SKU: D4BL-1CRA-A
Availability: OutOfStock

Omron D4BL-1CRA-A, D4BL Series Solenoid Interlock Switch, Power to Unlock, 24V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4BL-1CRA-A, D4BL Series Solenoid Interlock Switch, Power to Unlock, 24V dc

Part Number : D4BL-1CRA-A

Availability: Sold out

Detailed Description
Specifications
Downloads

D4BL Safety Guard-lock Door Switch

The D4BL guard lock safety door switch from Omron achieves a high level of safety using a mechanism where the lock is only released when voltage is applied to the solenoid. The mechanical lock is applied automatically when the operation key is inserted.

The switch contact is opened by a direct opening mechanism (NC contacts only) when the protective cover is opened Direct opening mechanism that is EN-approved is indicated on the switch
Auxiliary release key ensures easy maintenance and unlocks the door in the case of a power failure
Tough aluminium die-cast body incorporating a switch box with degree of protection satisfying IP67, UL, and CSA TYPE6P, 13
Equipped with a horizontal and vertical conduit opening
The mounting direction of the head can be changed to allow the Operation Key to be inserted from four directions
Conforms to EN (TUV) standards corresponding to the CE marking
Approved by UL, CSA, BIA, and SUVA standards

Note

Actuators must be purchased separately. Stock no. 746-7208 incorporates an easy-to-see indicator for monitoring.

Standards

TUV EN60947-5-1, BIA GS-ET-19, SUVA, UL508, CSA C22.2, No.14.

Brand	Omron
Power to Lock / Unlock	Power to Unlock
Supply Voltage	24V dc
Series	D4BL
Safety Contacts	NO/NC
Conduit Entry	1/2 in NPT
Auxiliary Contacts	1NC
Housing Material	Metal
IP Rating	IP67
Depth	46.3mm
Length	116.5mm
Width	123.5mm

Omron D4BL-1CRA-A, D4BL Series Solenoid Interlock Switch, Power to Unlock, 24V dc

DOWNLOAD CATALOG

D4BL-1CRA-A Machine Guarding and Safety Range Overview 0900766b814516d9

D4BL-1CRA-A Omron Machine Safety 0900766b814c686b
