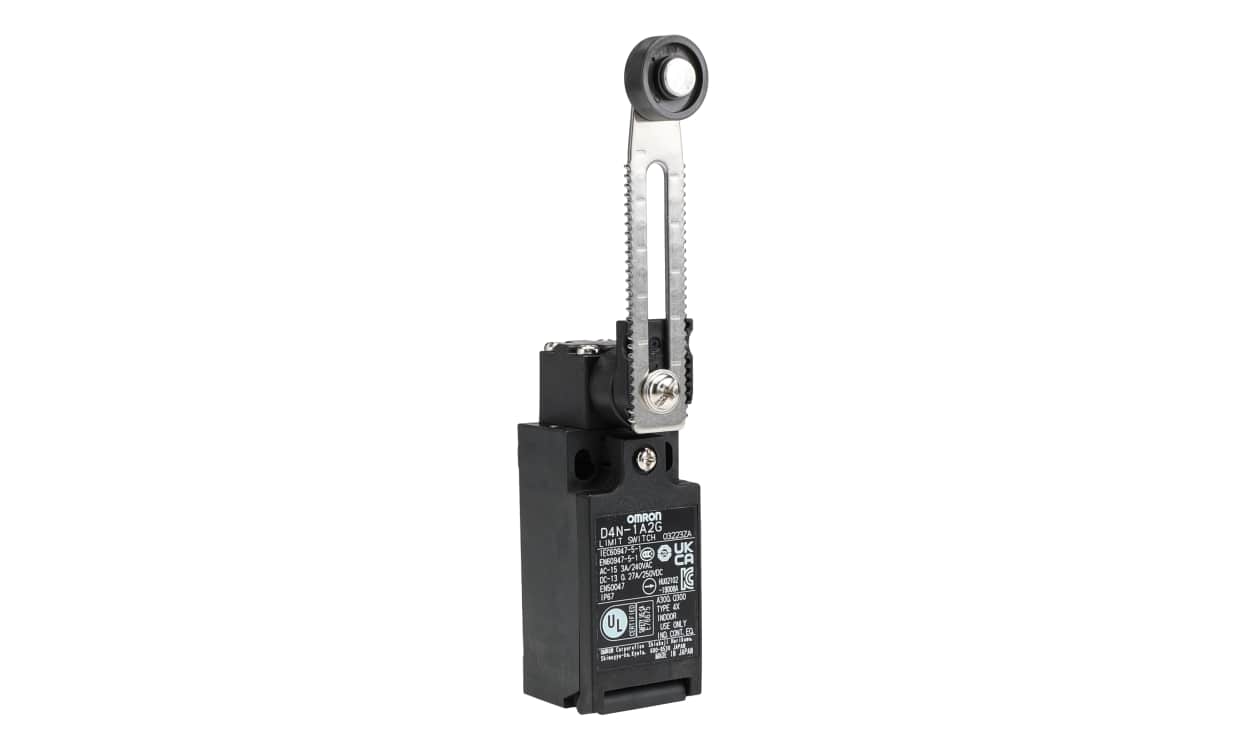

Name: Omron D4N-1A2G, D4N Series Roller Lever Limit Switch, NO/NC, IP67, DPST, Plastic Housing
Brand: OMRON
SKU: D4N-1A2G
Availability: OutOfStock

Omron D4N-1A2G, D4N Series Roller Lever Limit Switch, NO/NC, IP67, DPST, Plastic Housing

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4N-1A2G, D4N Series Roller Lever Limit Switch, NO/NC, IP67, DPST, Plastic Housing

Part Number : D4N-1A2G

Limit switch, Adjustable roller lever, form lock (metal lever, resin roller), 1NC/1NO (slow-action), 1NC/1NO (slow-action), Pg13.5 (1-conduit)

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron D4N Series Limit Switch, DPST Pole and Throw Configuration, Roller Lever Actuator Type - D4N-1A2G

This limit switch is designed for various automation applications. It features a compact size, measuring 64mm in length, and is ideally suited for environments requiring reliable operation. Constructed with a plastic housing, the IP67-rated switch ensures protection against dust and water ingress, making it suitable for harsh conditions.

Features & Benefits

• Roller lever actuator provides swift and reliable operation
• Dual pole, double throw (DPST) functionality enhances versatility
• NO/NC contact configuration ensures flexible integration
• Robust mechanical life of 15 million cycles guarantees durability
• Temperature tolerance from -30°C to +70°C enables diverse applications

Applications

• Utilised in automated assembly lines for precise control
• Used in manufacturing processes that require safety interlocks
• Ideal for packaging machinery needing reliable position feedback
• Suitable for conveyors that depend on accurate triggering mechanisms

What is the significance of the DPST configuration in operational setups?

The DPST configuration enables independent control of multiple circuits, enhancing flexibility in diverse automation tasks where simultaneous operations are crucial. This allows for effective management of different loads within a single unit.

How does the IP67 rating affect its installation in industrial environments?

An IP67 rating ensures that the switch remains protected from dust and can withstand immersion in water briefly. This makes it suitable for installation in environments subjected to splashes and moisture, extending its reliability and reducing maintenance.

What are the recommended mounting practices for optimal performance?

It is advisable to securely mount it using M4 screws and washers to prevent vibration-related issues. Additionally, ensuring proper alignment of the actuator is crucial for maintaining specified operation without wear over time.

Safety Limit Switch

Brand	Omron
Actuator Type	Roller Lever
Pole and Throw Configuration	DPST
Normal State Configuration	NO/NC
IP Rating	IP67
Housing Material	Plastic
Connection Type	PG13.5
Series	D4N
Length	64mm
Maximum Operating Temperature	+70°C
Width	31mm
Depth	45mm
Minimum Operating Temperature	-30°C
Mechanical Life	15000000Cycles

Limit switch, Adjustable roller lever, form lock (metal lever, resin roller), 1NC/1NO (slow-action), 1NC/1NO (slow-action), Pg13.5 (1-conduit)
