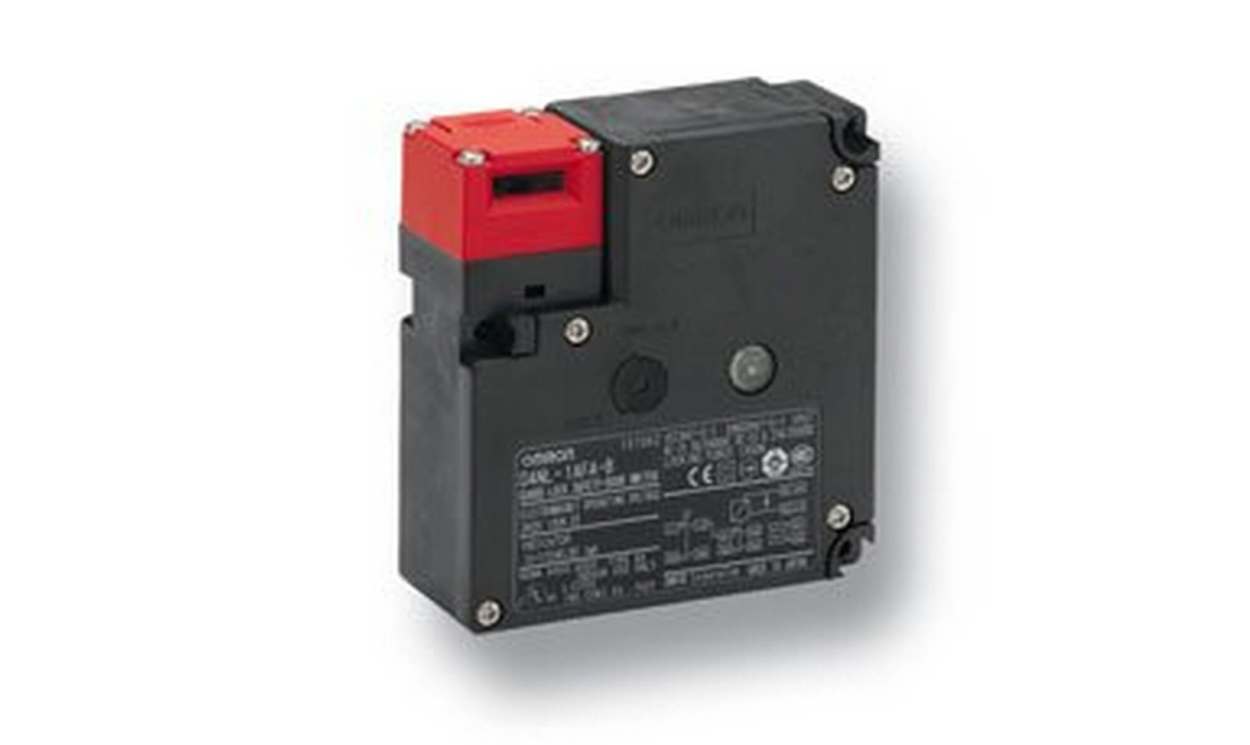

Name: Omron D4NL-2DFA-B, D4NL Series Solenoid Interlock Switch, 2NC/2NC
Brand: OMRON
SKU: D4NL-2DFA-B
Availability: OutOfStock

Omron D4NL-2DFA-B, D4NL Series Solenoid Interlock Switch, 2NC/2NC

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4NL-2DFA-B, D4NL Series Solenoid Interlock Switch, 2NC/2NC

Part Number : D4NL-2DFA-B

Availability: Sold out

Detailed Description
Specifications
Downloads

D4NL Safety Guard-lock Door Switch

A lead free, environmentally friendly solenoid interlock switch available with either a solenoid lock/mechanical release mechanism (power to lock) or a mechanical lock/solenoid release mechanism (power to unlock). Sliding, hinged and removable guarding devices such as grids, hoods or doors can be monitored and locked in place with these safety guard lock switches.

Safety door switch with either electromagnetic lock or unlock mechanism
Four head mounting directions possible
Four built-in contacts
Strong key holding force, 1300 N
For standard loads and micro loads
IP67 rating (applies to switch only, key hole is IP00)
Contains no harmful substances, such as lead or cadmium, reducing the burden on the environment

Note

Actuators sold separately.
Stock nos. 746-7289 and 746-7132 have a special release key included.

Standards

IEC/EN60947-5-1

Approvals

cULus, TUV, CE, CCC

The Omron Guard lock safety door switch has lead free and environment friendly design. This lock contains no harmful substances such as lead or cadmium reducing the burden on the environment. Models with 4 contact and 5 contact built in switches are available.

Can be used for either standard loads or microloads
Line up includes models with a conduit size of M20
Operation key compatible to D4DS D4NS and D4GL
IP67 degree of protection

Brand	Omron
Series	D4NL
Actuator Included	No
Normal State Configuration	2NC/2NC
Housing Material	Plastic
