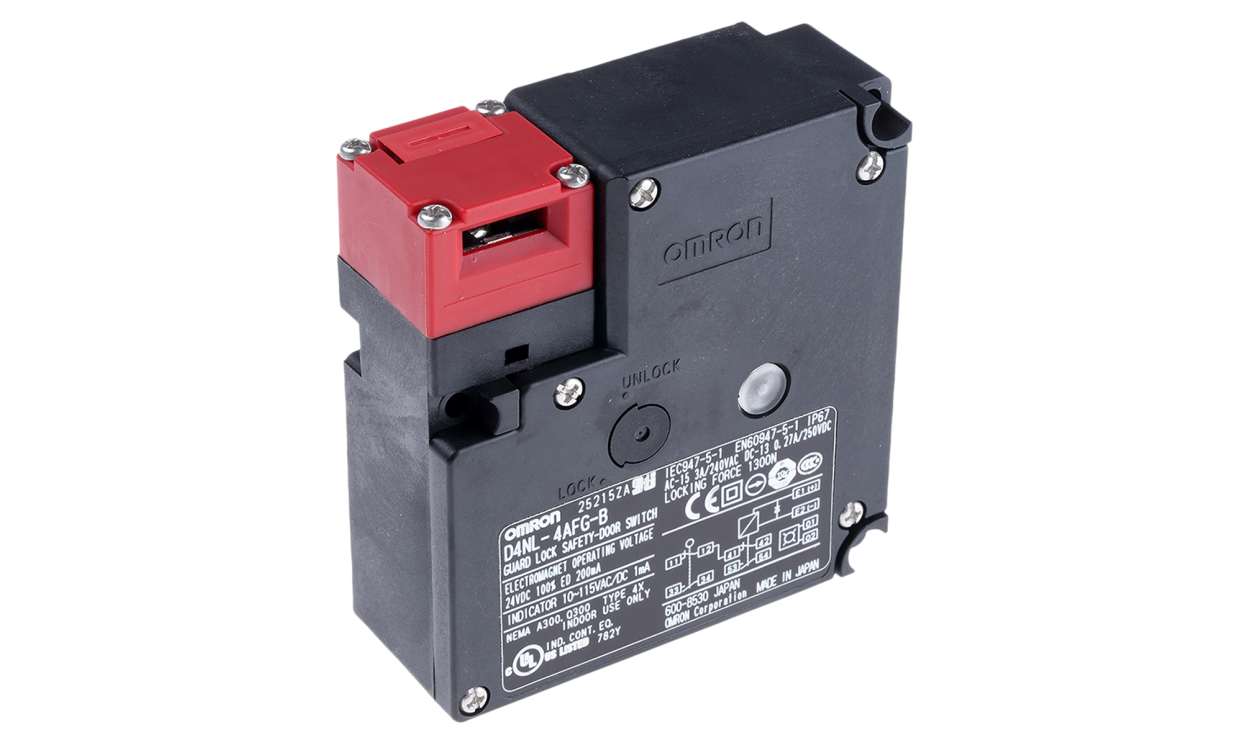

Omron D4NL-4AFG-B, D4NL Series Solenoid Interlock Switch, Power to Lock, 24V dc

Name: Omron D4NL-4AFG-B, D4NL Series Solenoid Interlock Switch, Power to Lock, 24V dc
Brand: OMRON
SKU: D4NL-4AFG-B
Availability: OutOfStock

Part Number : D4NL-4AFG-B

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron D4NL Series Solenoid Interlock Switch, 24V DC Supply Voltage, IP67 Protection Rating - D4NL-4AFG-B

This solenoid interlock switch is designed for industrial applications requiring high-performance safety solutions. Constructed with a robust plastic housing, it offers a compact design with dimensions of 95mm in length, 88.5mm in width, and a depth of 35.5mm. This model ensures reliable operation in demanding environments, featuring both normally open and normally closed safety contacts.

Features & Benefits

• Power to lock functionality maximises operational safety
• IP67 rated switches protect against dust and moisture
• NO NC safety contacts enhance fault detection
• Durable performance with 1,300 N minimum holding force

Applications

• Used for safeguarding access to machinery in automation
• Ideal for electrical panels and control systems
• Utilised in safety interlocks for hazardous environments
• Suitable for door locking mechanisms in machinery

What voltage supply is needed for operation and what does it mean for performance?

The switch operates at a supply voltage of 24V DC, ensuring it is suitable for various industrial applications while providing reliable performance without excessive power consumption.

How does the IP67 rating affect the switch's usability?

The IP67 rating means the switch is dust-tight and can withstand immersion in water up to 1 metre for 30 minutes, ensuring functionality in harsh environments.

What distinguishes the NO NC safety contacts from standard contacts?

The NO NC safety contacts allow for immediate detection of faults, improving safety by providing dual types of circuit configurations that enhance the reliability of the safety interlock system.

What is the significance of having a key holding force of 1,300 N?

A key holding force of 1,300 N ensures that the door remains securely closed under heavy loads, minimising the risk of accidental access or operation of machinery during maintenance.

How does the plastic housing contribute to the switch's overall functionality?

The plastic housing is lightweight yet sturdy, protecting internal components from environmental factors while facilitating easier installation and reducing wear compared to metal alternatives.

Brand	Omron
Power to Lock / Unlock	Power to Lock
Supply Voltage	24V dc
Series	D4NL
Safety Contacts	NO/NC
Conduit Entry	1/2 in NPT
Auxiliary Contacts	1NO/1NC
Housing Material	Plastic
IP Rating	IP67
Depth	35.5mm
Width	88.5mm
Length	95mm
