Omron D4NL-4HFA-B, D4NL Series Solenoid Interlock Switch, Power to Unlock, 24V dc, 2NC/3NC

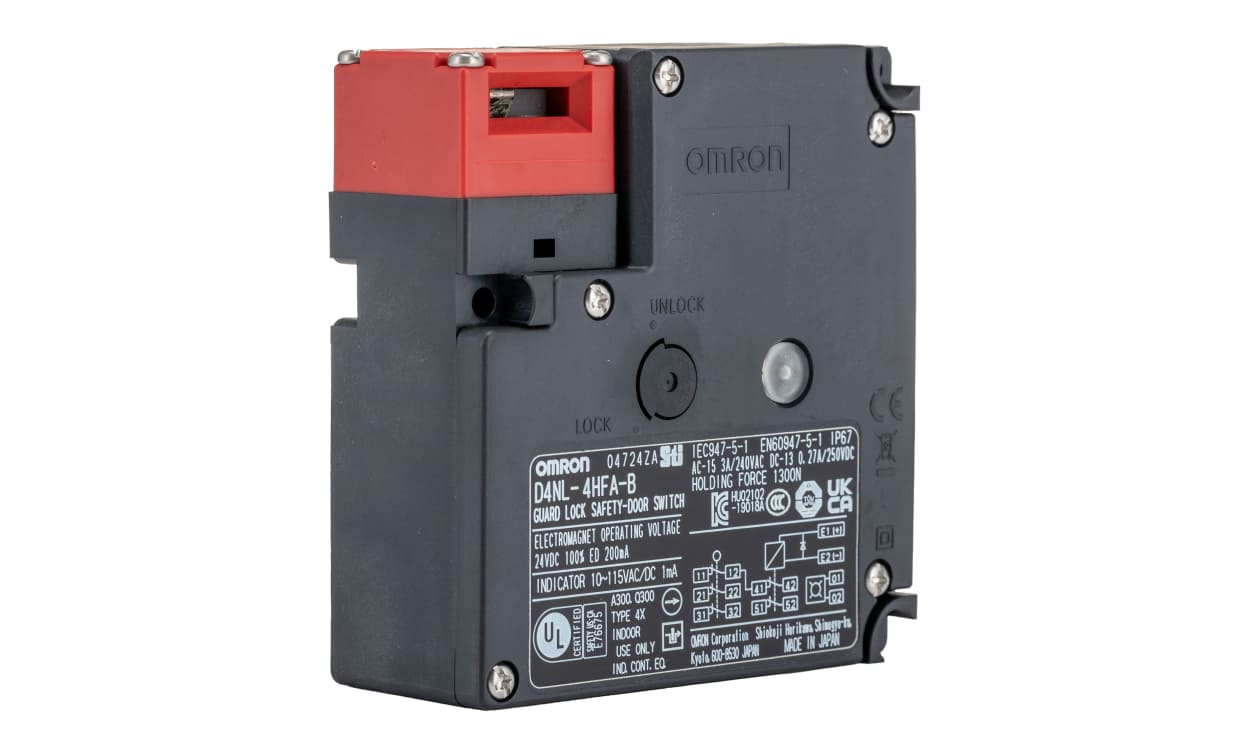

Name: Omron D4NL-4HFA-B, D4NL Series Solenoid Interlock Switch, Power to Unlock, 24V dc, 2NC/3NC
Brand: OMRON
SKU: D4NL-4HFA-B
Availability: OutOfStock

Part Number : D4NL-4HFA-B

Guard lock safety-door switch, D4NL, M20, 3NC + 2NC (slow-action), head: plastic, mechanical lock/24-VDC solenoid release, 10 to 115 VAC/VDC LED indicator

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron D4NL Series Solenoid Interlock Switch, 24V DC Supply Voltage, IP67 - D4NL-4HFA-B

This solenoid interlock switch is designed for industrial applications, ensuring safety and reliability in operations. It features a robust plastic housing with an IP67 rating, providing excellent resistance against dust and water ingress. Measuring 95mm in length, 88.5mm in width, and 35.5mm in depth, it integrates seamlessly into various installations while offering flexible conduit entry options.

Features & Benefits

• Selectable key insertion direction offers installation flexibility
• Built-in multipole contacts enhance operational versatility
• Minimum key holding force of 1,300 N ensures secure locking
• Fitted with M20 conduit entry for straightforward connectivity

Applications

• Ideal for ensuring safe access to machinery
• Utilised in automation systems where interlocks are essential
• Can be applied in safety-critical environments
• Suitable for use in electrical and mechanical safety systems

How does the key insertion direction impact installation?

The key insertion direction can be adjusted, allowing users to fit the switch in various orientations depending on space constraints or specific installation requirements. This flexibility leads to more efficient setups in diverse working environments.

What load types can be managed by the switch?

It is engineered to manage standard loads as well as micro-loads, making it adaptable for different applications. Users can confidently employ it for both types, knowing it meets their operational standards.

What measures are taken to prevent water ingress?

The switch's IP67 rating indicates it has undergone rigorous testing against dust and water exposure. This ensures reliable performance even in environments where dust and moisture are common, minimising maintenance needs.

How can the device contribute to workplace safety?

By preventing unauthorised access to machinery while locked, it significantly reduces the risk of accidents. The mechanical design ensures that doors cannot be opened under unsafe conditions, thereby enhancing overall workplace safety.

Brand	Omron
Power to Lock / Unlock	Power to Unlock
Supply Voltage	24V dc
Series	D4NL
Range	D4NL
Normal State Configuration	2NC/3NC
Conduit Entry	M20
Housing Material	Plastic
IP Rating	IP67
Maximum DC Voltage	24V dc
Depth	35.5mm
Width	88.5mm
Length	95mm

Guard lock safety-door switch, D4NL, M20, 3NC + 2NC (slow-action), head: plastic, mechanical lock/24-VDC solenoid release, 10 to 115 VAC/VDC LED indicator

Omron D4NL-4HFA-B, D4NL Series Solenoid Interlock Switch, Power to Unlock, 24V dc, 2NC/3NC

DOWNLOAD CATALOG

D4NL-4HFA-B Selection Guide - Safety Components A700000014068218

D4NL-4HFA-B Brochure - Safety Interlock Switches A700000014068375

D4NL-4HFA-B Instruction Sheet - D4NL-4HFA-B A700000014068636
