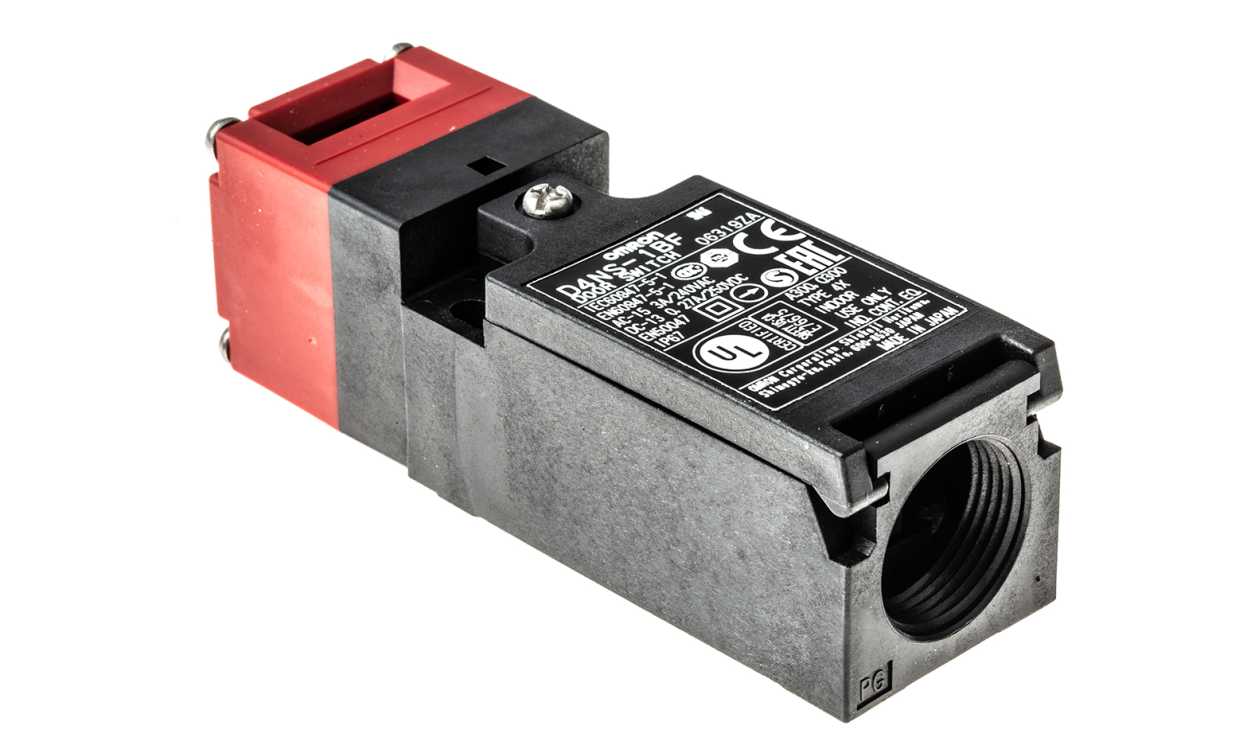

Name: Omron D4NS-1BF, D4NS Series Safety Interlock Switch, 2NC
Brand: OMRON
SKU: D4NS-1BF
Availability: OutOfStock

Omron D4NS-1BF, D4NS Series Safety Interlock Switch, 2NC

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4NS-1BF, D4NS Series Safety Interlock Switch, 2NC

Part Number : D4NS-1BF

Availability: Sold out

Detailed Description
Specifications
Downloads

D4NS Safety Door Switches

Next generation safety door switches
Choice of NC and NO contact configurations and conduit entry sizes.
Standard gold clad contacts provide high reliability
Can be used for standard loads or microloads
Operating keys should be ordered separately

Conforms to the following EC Directives:
Machinery directive, Low voltage directive, EN 50047, EN 60204-1, EN 1088, GS-ET-15

Certified Standards: TUV, UL, CSA

Omron D4NS Series Safety Interlock Switch, Plastic Housing, IP67 - D4NS-1BF

This safety interlock switch by Omron is designed with a plastic housing and comes with an IP67 rating for ideal protection. It offers a reliable solution for ensuring safety in industrial settings. With a maximum AC voltage of 240V and a maximum current of 10A, this switch provides high-quality performance for a range of applications.

Features & Benefits

• Plastic housing for durability and protection
• IP67 rating for resistance to dust and water
• Maximum voltage of 240V AC and 250V DC for versatile use
• Normal state configuration of 2NC for added safety
• Multi-contact design for enhanced reliability
• Free of lead, cadmium, and hexavalent chrome for environmental friendliness

Applications

• Safety-door switches in industrial machinery
• Interlock switches for automated production lines

Can it be used in both AC and DC applications?

Yes, the safety interlock switch is suitable for both AC and DC voltage applications.

Will it provide high contact reliability?

Yes, standardised gold-clad contacts ensure high contact reliability for optimal performance.

Is it environmentally friendly?

Yes, the switch is free of lead, cadmium, and hexavalent chrome, reducing the burden on the environment.

Interlock Switch

Brand	Omron
Series	D4NS
Normal State Configuration	2NC
Conduit Entry	PG13.5
Housing Material	Plastic
IP Rating	IP67
Maximum AC Voltage	240V
Standards Met	CE
Length	96mm
Maximum DC Voltage	250V
Depth	30mm
Width	31mm

Omron D4NS-1BF, D4NS Series Safety Interlock Switch, 2NC
