Omron D4SLNK2, Vertical Mounting for Use with D4SL-N/D4SL-NSK10-LK Safety Switch

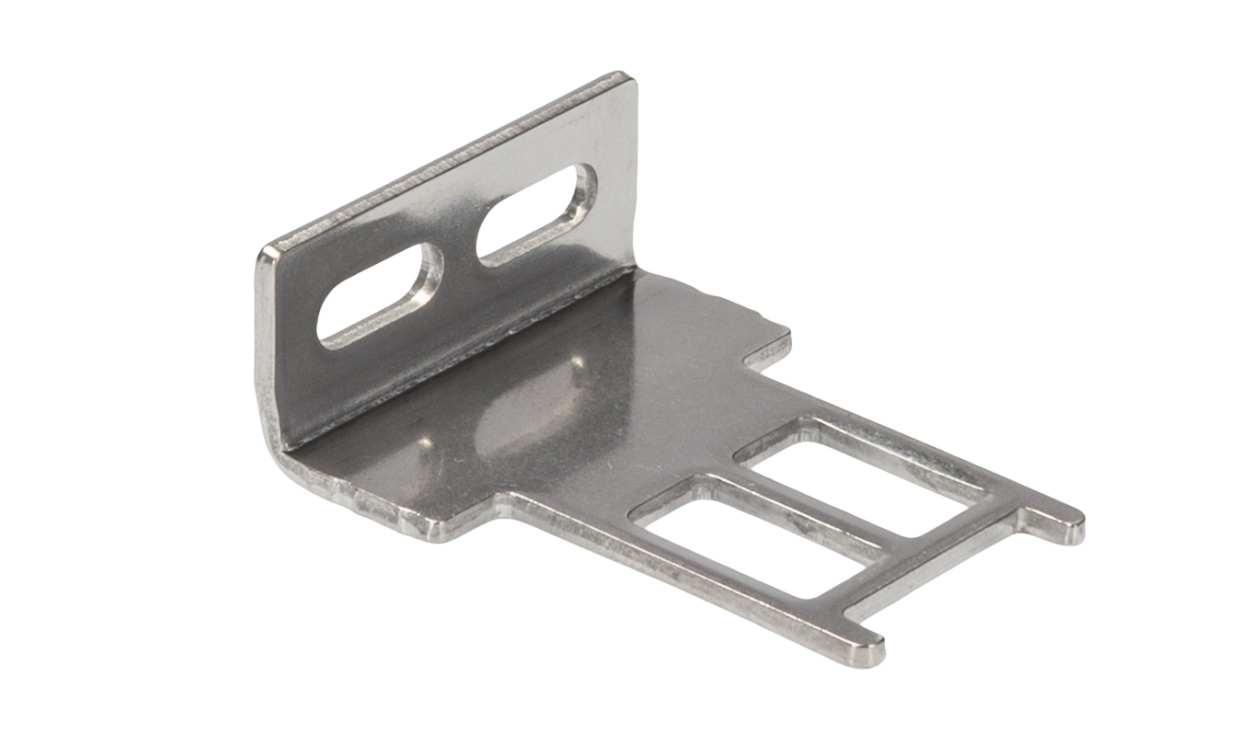

Name: Omron D4SLNK2, Vertical Mounting for Use with D4SL-N/D4SL-NSK10-LK Safety Switch
Brand: OMRON
SKU: D4SLNK2
Availability: OutOfStock

Part Number : D4SLNK2

Availability: Sold out

Detailed Description
Specifications
Downloads

D4SL Safety Guard-lock Door Switch

The D4SL-N series from Omron is a small Class 6-contact Guard Lock Switch. The significantly reduced solenoid current of the D4SL-N contributes to reduced power supply costs. The safety-door switch also conforms to the following EC Directives: Machinery Directive, Low Voltage Directive, EMC Directive, EN1088, EN60204-1, GS-ET-19.

Reduced wiring time with one-touch attachment and removal
Two types of wiring method, terminal block or connector
Key holding force of 1300 N
Key insertion point can be changed without detaching the head
Drive solenoids directly from the controller
Both power to lock and power to unlock models available
Orange LED indicator (selected models)
Supply voltage 24 Vdc

Note

Actuators sold separately.

Standards

EN60947-5-1 (certified direct opening), UL508, CSA C22.2 No.14, GB14048.5, EN60947-5-1.

Approvals

TÜV SÜD , UL, CQC (CCC), KOSHA.

Omron Mounting Bracket, For Use With D4SL-N/D4SL-NSK10-LK Safety Switch, 35mm Length - D4SLNK2

This mounting bracket is designed for the installation of safety switches in industrial applications. Its vertical mounting capability optimises space management while ensuring functionality across various settings. Compatible with the D4SL-N and D4SL-NSK10-LK safety switches, this accessory is essential for improving machine safety and operational effectiveness.

Features & Benefits

• Allows vertical mounting for efficient space utilisation
• Improves machine safety with a solid attachment point
• Facilitates installation of necessary safety switch accessories

Applications

• Used for mounting safety switches in automated machinery
• Works with D4SL-N safety switches for enhanced protection
• Applicable in the assembly of machine safety accessories

How can I ensure proper installation of this accessory?

Secure the bracket firmly to the equipment surface and align it with the safety switch to maintain operational integrity.

What type of environments is this accessory suitable for?

It is intended for industrial settings where robust and functional mounting solutions are necessary for safety equipment.

Can I use this bracket for horisontal mounting purposes?

This bracket is designed exclusively for vertical mounting to achieve peak performance with compatible safety switches.

Brand	Omron
Accessory Type	Vertical Mounting
For Use With	D4SL-N/D4SL-NSK10-LK Safety Switch

Omron D4SLNK2, Vertical Mounting for Use with D4SL-N/D4SL-NSK10-LK Safety Switch
