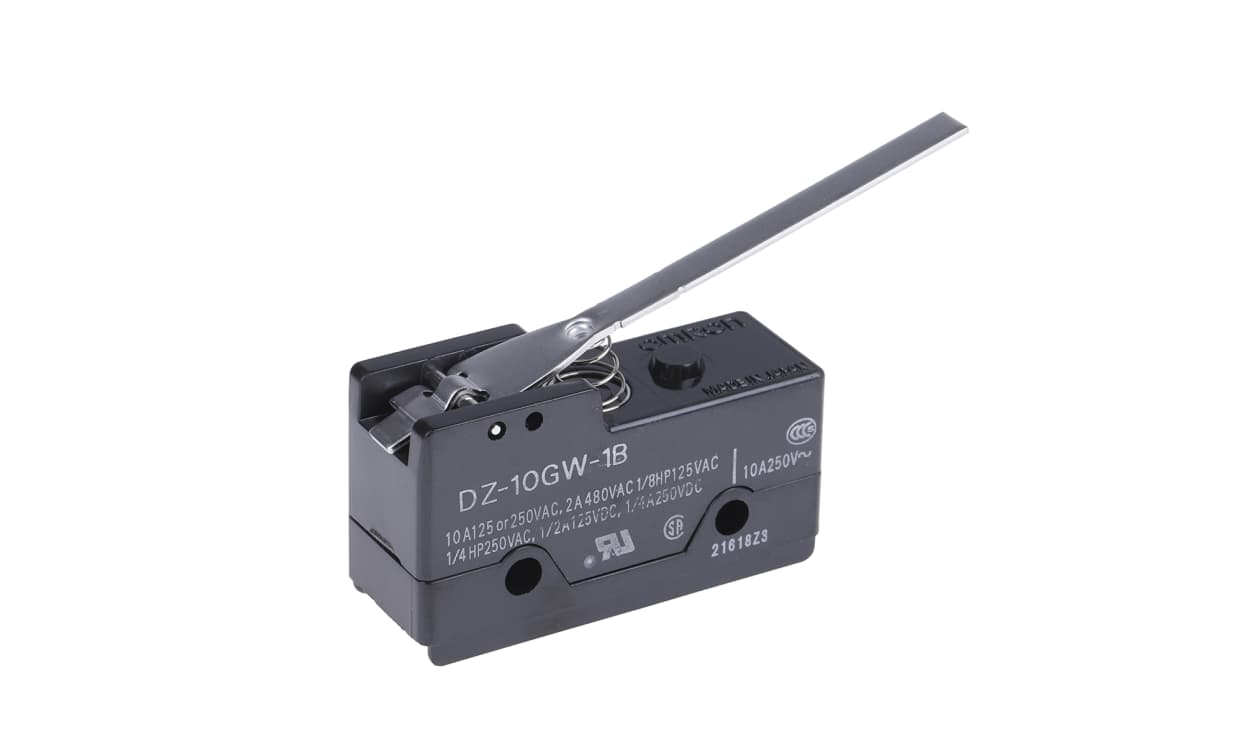

Name: Omron DZ-10GW-1B, DZ Series Lever Limit Switch, 2NO/2NC, IP00, DPDT, 250V ac Max, 10A Max
Brand: OMRON
SKU: DZ-10GW-1B
Availability: OutOfStock

Omron DZ-10GW-1B, DZ Series Lever Limit Switch, 2NO/2NC, IP00, DPDT, 250V ac Max, 10A Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron DZ-10GW-1B, DZ Series Lever Limit Switch, 2NO/2NC, IP00, DPDT, 250V ac Max, 10A Max

Part Number : DZ-10GW-1B

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series DZ Limit Switch, 2NO/2NC Normal State Configuration, 10A Maximum Current - DZ-10GW-1B

This limit switch is designed to offer precise control in various automation and industrial applications. With a lever actuator, it enables flexibility and accuracy in operation, making it a crucial component for effective machinery management. Its robust design meets the needs of both electrical and mechanical sectors while ensuring consistent performance under demanding conditions.

Features & Benefits

• Snap action mechanism improves operational efficiency
• DPDT configuration provides versatile switching options
• Operating temperature range of -25 to +85°C for adaptability
• Screw connection type allows for simple and secure installation

Applications

• Suitable for machinery safety interlocks
• Utilised in automated production lines for accurate control
• Used in conveyor systems to detect positioning
• Employed in robotic systems for motion control

How can I install it for optimal performance?

Ensure it is mounted securely in the correct orientation, using the screw connection for stability.

What are the implications of using it at extreme temperatures?

It functions effectively within a temperature range of -25 to +85°C, ensuring reliability in varied environments.

Is this suitable for high-current applications?

Yes, it is rated for a maximum current of 10A, making it appropriate for numerous applications.

Brand	Omron
Actuator Type	Lever
Pole and Throw Configuration	DPDT
Normal State Configuration	2NO/2NC
IP Rating	IP00
Maximum Current	10A
Maximum AC Voltage	250V
Maximum DC Voltage	250V
Connection Type	Screw
Series	DZ
Action Type	Snap Action
Length	49.2mm
Maximum Operating Temperature	+85°C
Depth	27.9mm
Minimum Operating Temperature	-25°C
Width	17.45mm
Mounting Orientation	Screw
Mechanical Life	1000000Operations
Operating Force	5.59 N
