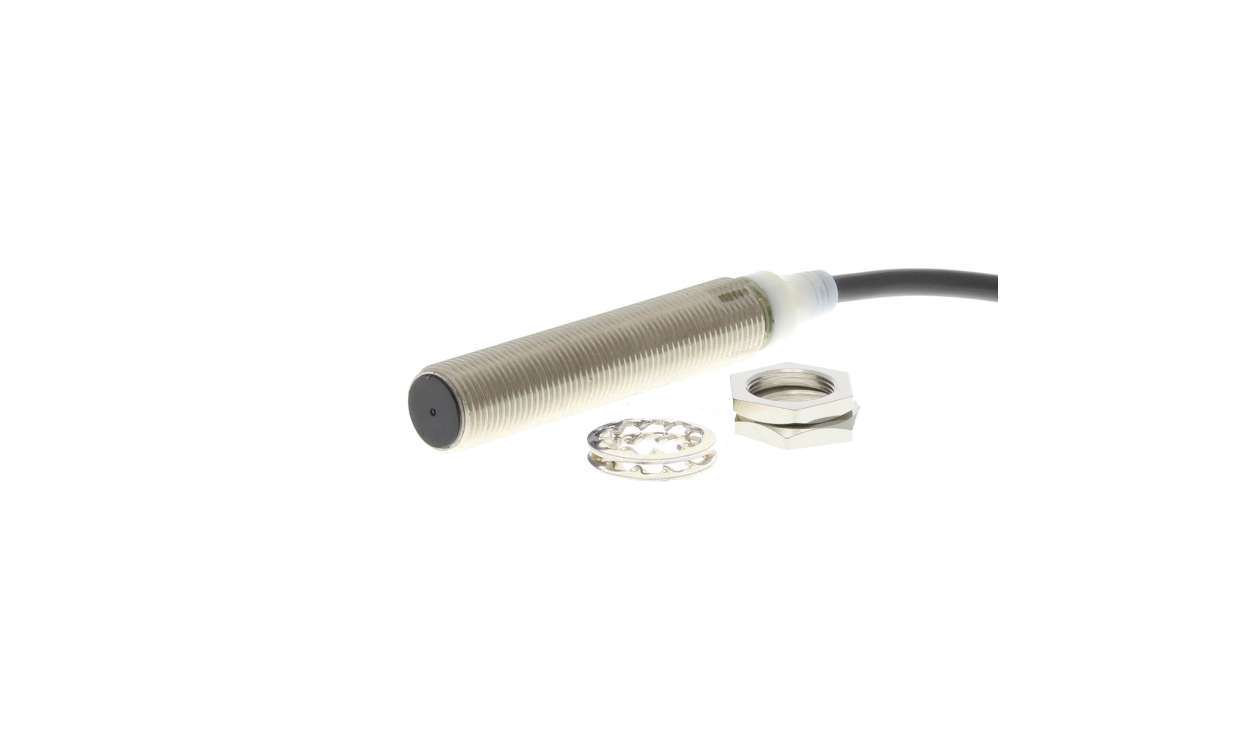

Omron E2A-M12KN05-WP-B1-TP 5M, Inductive Threaded Barrel Proximity Sensor, M12, 5 mm Detection, PNP NO, 12 → 24 V dc
- Detailed Description
- Specifications
- Downloads
The E2A series comes with IP67 and IP69k for highest protection in wet environments
| Brand | Omron |
| Thread Size | M12 |
| Sensor Technology | Inductive |
| Detection Range | 5 mm |
| Body Style | Threaded Barrel |
| Output Function | NO |
| Digital Switching Output Type | PNP |
| Connection Type | Pre-Cabled |
| Cable Length | 5m |
| Supply Voltage | 12 → 24 V dc |
| Length | 56mm |
| IP Rating | IP67 |
| Mounting Type | Flush |
| Maximum DC Voltage | 32V |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 800 Hz |
| Maximum Switching Frequency | 800Hz |
| Series | E2A |
| Shielding | Shielded |
| Switching Current | 200 mA |
