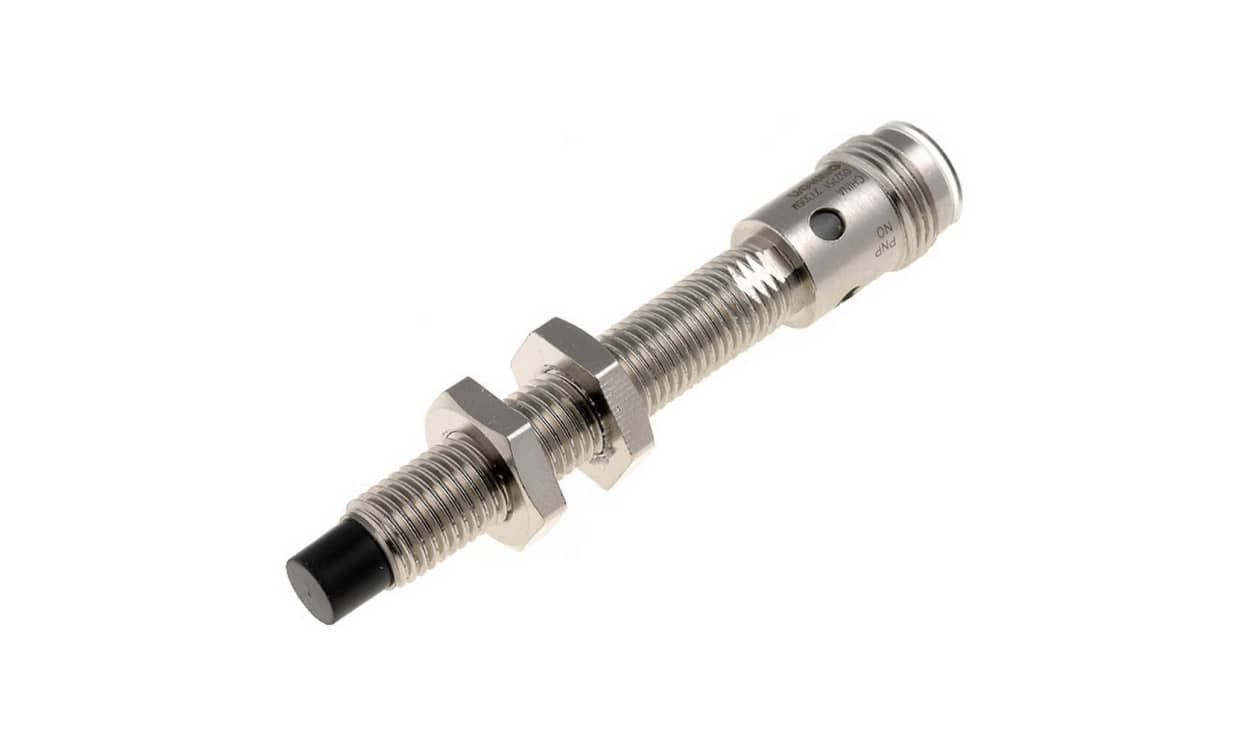

Omron E2A-S08LN04-M1-B1, Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NO, 12 → 24 V dc

Part Number : E2A-S08LN04-M1-B1

Availability: Sold out

Detailed Description
Specifications

Omron E2A Series Proximity Sensor, 12 to 24V DC Supply Voltage, IP67/IP69K - E2A-S08LN04-M1-B1

This inductive proximity sensor is a key component in modern automation and electronic systems. With a 4mm detection range, it delivers consistent performance across diverse environments. The M8 threaded barrel design simplifies installation, making it suitable for industrial applications. Its robust build ensures efficiency even in challenging conditions.

Features & Benefits

• Stainless steel housing ensures durability in harsh conditions
• IP67/IP69K rating provides protection against dust and moisture
• Non-flush mounting option offers application versatility

Applications

• Suitable for position detection in automation systems
• Detects object presence in conveyor systems
• Ideal for robotic requiring consistent feedback

What is the minimum operating temperature for this sensor?

The sensor operates at temperatures as low as -40°C, ensuring functionality in cold conditions.

How do I connect the sensor to my system?

The sensor features an M12 connection type for straightforward wiring to compatible systems.

What is the maximum switching frequency for this sensor?

The maximum switching frequency is 1kHz, allowing for prompt response times in applications.

How does the reverse polarity protection work?

The reverse polarity protection feature helps safeguard the sensor from damage due to incorrect wiring, enhancing its reliability.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Detection Range	4 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	PNP
Cable Length	2m
Connection Type	M12
Supply Voltage	12 → 24 V dc
Length	65mm
IP Rating	IP67/IP69K
Mounting Type	Non-Flush
Housing Material	Stainless Steel
Maximum DC Voltage	32V
Minimum Operating Temperature	-40°C
Switching Frequency	1 kHz
Depth	6mm
Maximum Operating Temperature	+70°C
Switching Current	200 mA
