Name: Omron E2A-S08LS02-M5-B1, Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP NO, 12 → 24 V dc
Brand: OMRON
SKU: E2A-S08LS02-M5-B1
Availability: OutOfStock

Omron E2A-S08LS02-M5-B1, Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP NO, 12 → 24 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E2A-S08LS02-M5-B1, Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP NO, 12 → 24 V dc

Part Number : E2A-S08LS02-M5-B1

Availability: Sold out

Detailed Description
Specifications

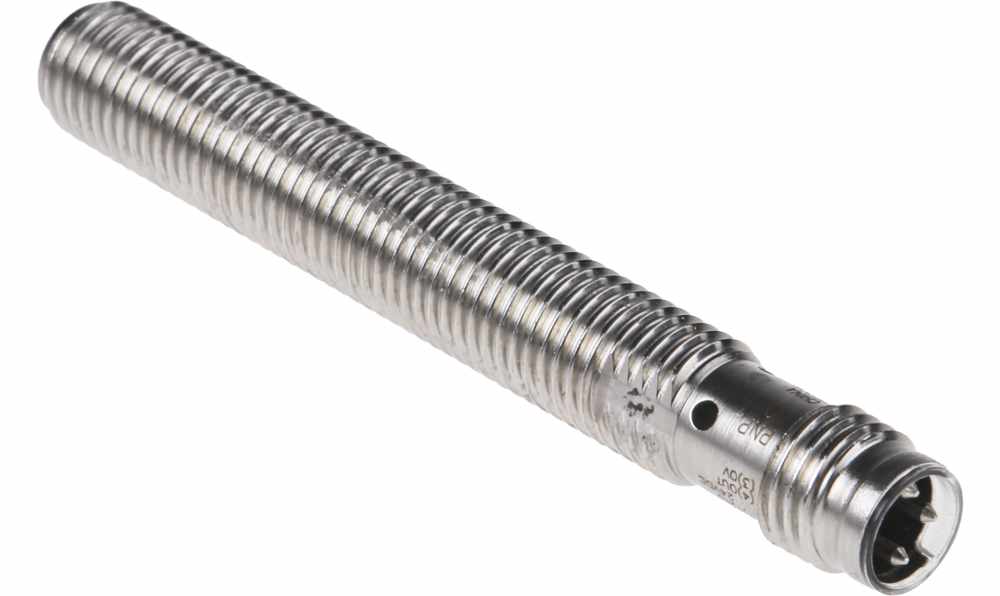

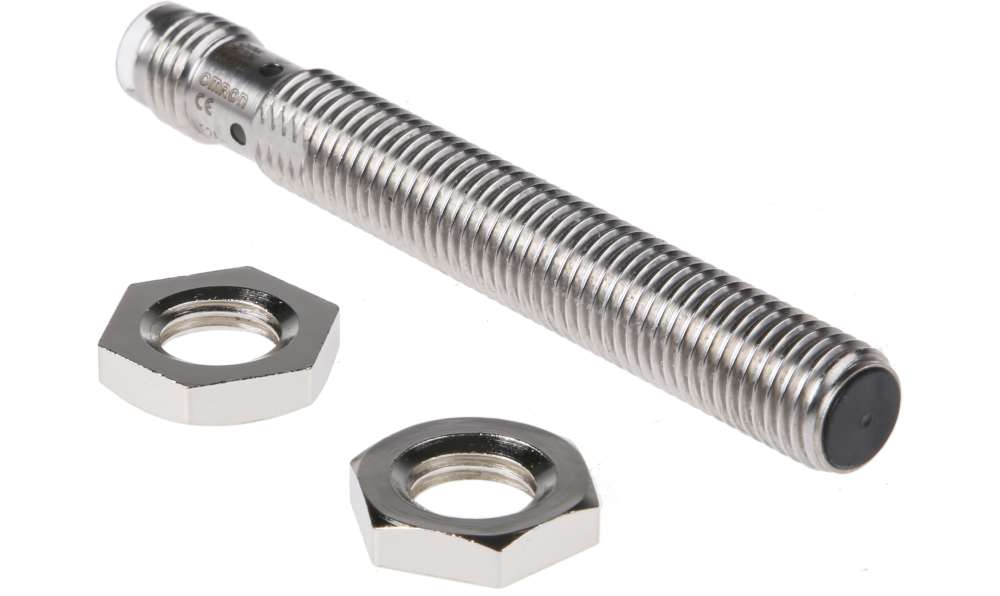

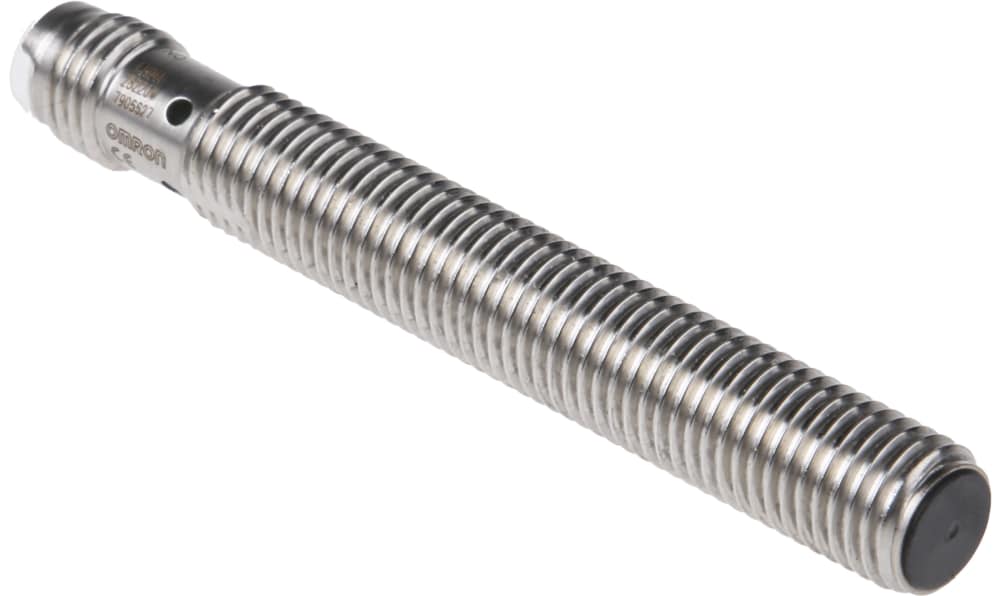

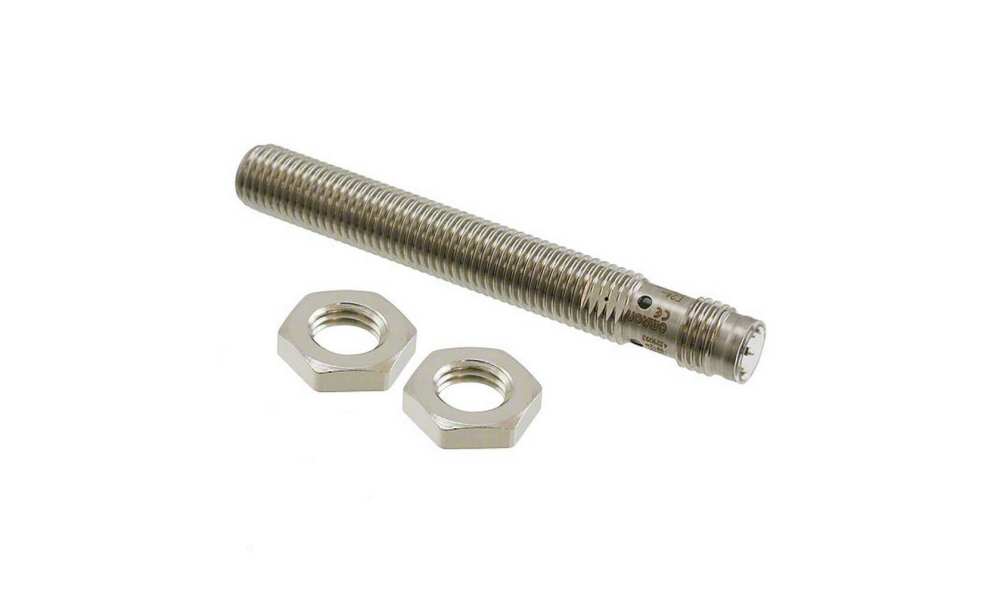

Omron E2A-S Series Proximity Sensor, PNP Output, 2mm Detection Range - E2A-S08LS02-M5-B1

This proximity sensor detects the presence of objects without physical contact, utilising inductive technology for applications in automation and industrial environments. Operating effectively within a detection range of 2mm, it provides accurate sensing in diverse conditions, making it a valuable addition to electrical and mechanical systems.

Features & Benefits

• Robust design with stainless steel housing for durability
• IP67 rating for effective protection against dust and water
• Modular construction allows for customisation to fit specific needs
• Sensing distance 1.5 to 2 times greater than conventional alternatives
• Easy flush mounting for versatile installation
• Reverse polarity and short circuit overload protection for enhanced reliability

Applications

• Object detection in factory automation
• Collision prevention in machinery
• Precise positioning and detection in robotics
• Safety monitoring in conveyor systems
• Ensuring correct placement of items in packaging equipment

What type of load can be connected to this sensor?

It is suitable for DC loads with a maximum current of 200mA.

Can it operate in extreme temperatures?

Yes, it functions within a temperature range of -40 to +70°C.

How should I connect the wiring for proper functionality?

Ensure correct wiring following the provided connection diagram to prevent damage.

Is it possible to extend the cable length?

Yes, but the standard maximum recommended cable length is up to 200m.

What should be tof the sensor does not respond?

Check the power supply and verify that the sensor is correctly installed and wired.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Detection Range	2 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M8
Supply Voltage	12 → 24 V dc
Length	49mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	Stainless Steel
Maximum DC Voltage	32V
Minimum Operating Temperature	-40°C
Series	E2A
Maximum Operating Temperature	+70°C
Maximum Switching Frequency	1.5kHz
Switching Current	200 mA
Reverse Polarity Protection	Yes
