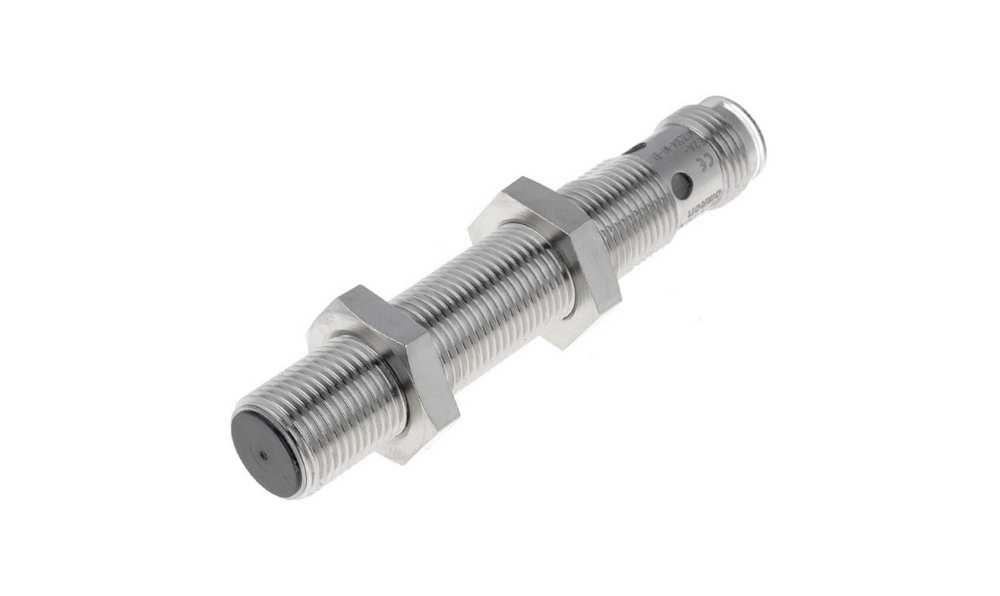

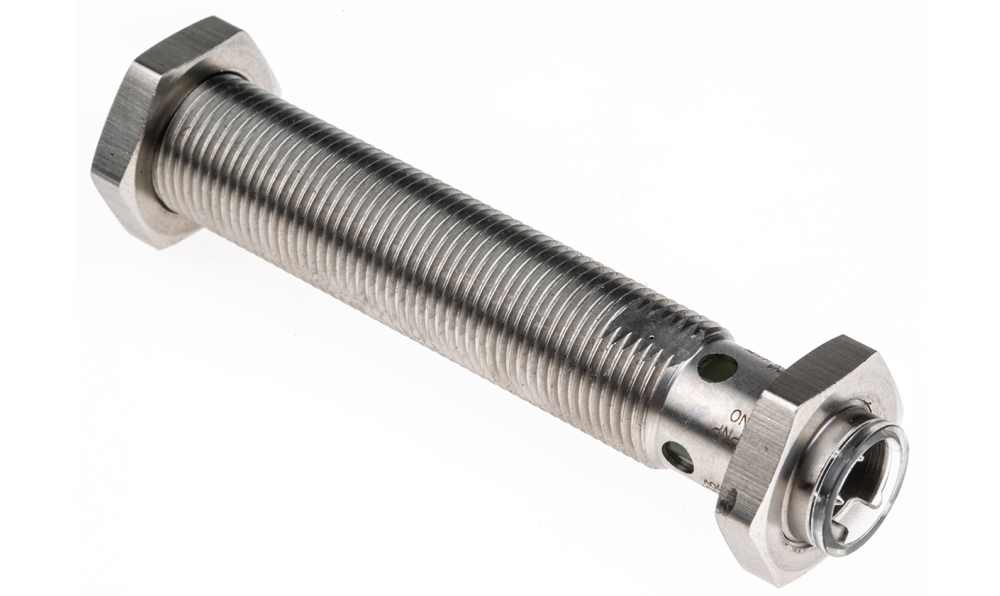

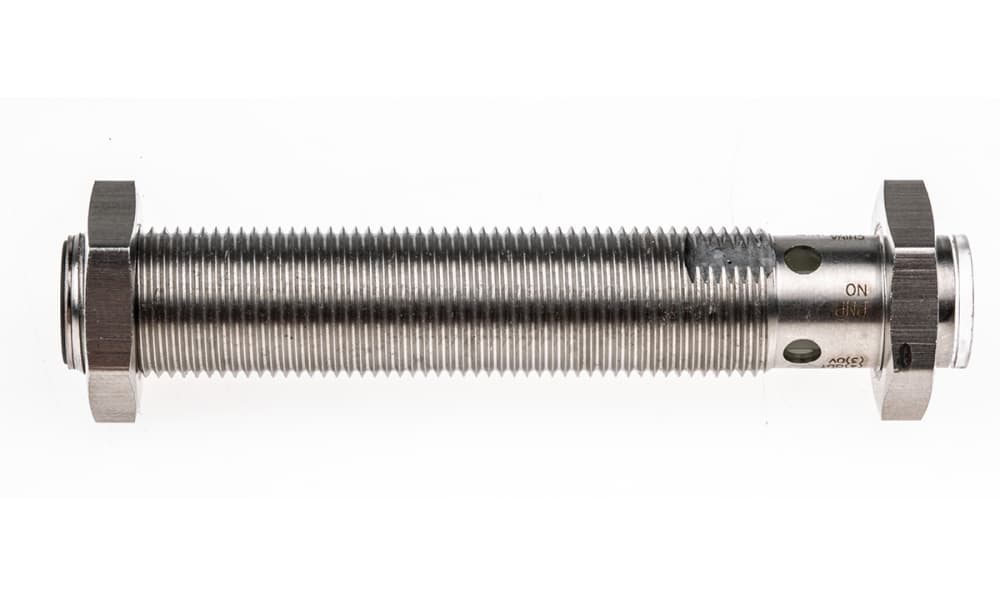

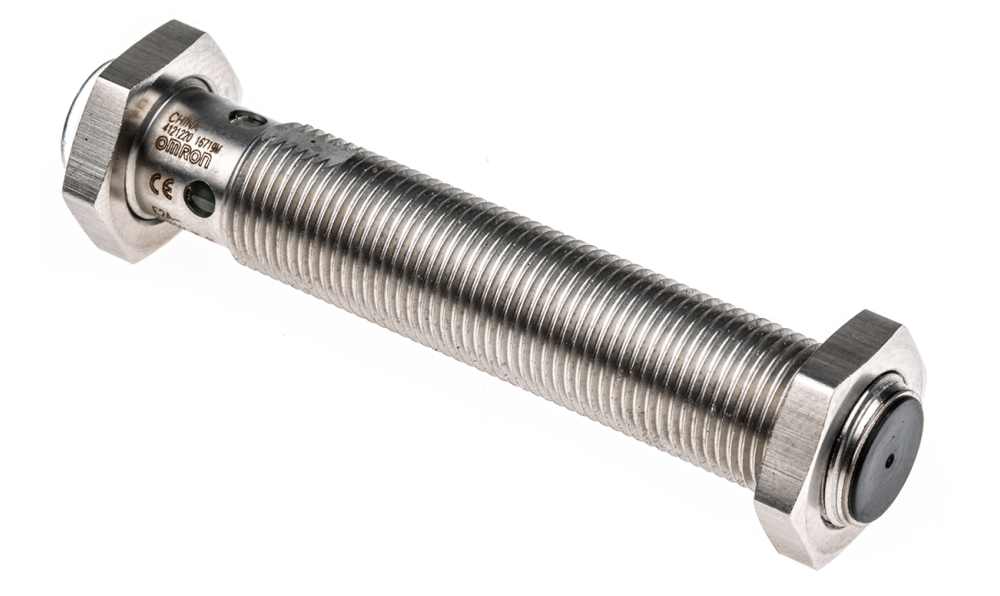

Name: Omron E2AS12LS04M1B1, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NO, 12 → 24 V dc
Brand: OMRON
SKU: E2AS12LS04M1B1
Availability: OutOfStock

Omron E2AS12LS04M1B1, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NO, 12 → 24 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E2AS12LS04M1B1, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NO, 12 → 24 V dc

Part Number : E2AS12LS04M1B1

Availability: Sold out

Detailed Description
Specifications

E2A Standard CENELEC Length Stainless Steel

PBTP sensing face material
LED indication
Operating temperature range -25 to +70°C
Supply voltage 10 to 35Vdc
Current consumption 15mA
Maximum switching current 200mA
Short circuit and reverse polarity protection

Omron E2A Series Proximity Sensor, 4mm Detection Range, 200mA Switching Current - E2AS12LS04M1B1

This proximity sensor is designed for precise detecting applications. Featuring an inductive sensing technology, it has a compact M12 threaded barrel design with a 4mm sensing range. The sensor operates effectively within a supply voltage range of 12 to 24V DC and is housed in robust stainless steel, ensuring durability in industrial applications.

Features & Benefits

• High-frequency switching up to 1 kHz for rapid responses
• PNP output function simplifies integration into control systems
• IP67/IP69K rating provides superior protection against dust and water
• Reverse polarity protection safeguards against wiring errors
• Short circuit overload protection enhances operational reliability
• Flush mount design offers flexibility in installation

Applications

• Ideal for automation tasks in manufacturing processes
• Used in assembly line equipment for object detection
• Suitable for position monitoring in robotics
• Employed in packaging machinery for presence sensing
• Compatible with various machinery in electrical and mechanical fields

What types of environments can this sensor operate in effectively?

The sensor is built to withstand harsh conditions due to its IP67/IP69K rating, making it suitable for wet, dusty, and high-pressure environments commonly found in manufacturing and food processing industries.

How does the inductive technology improve performance in metal detection?

Inductive sensors detect the presence of metal targets without physical contact, which enhances durability and prevents wear over time, allowing for consistent performance in challenging applications.

What wiring considerations should be observed for proper function?

It is essential to properly connect the sensor's output according to its PNP configuration while ensuring that the supply voltage remains within the specified 12 to 24V DC to avoid operational issues.

Can this sensor be used in temperature-extreme environments?

Yes, the sensor operates effectively in temperature ranges from -40 °C to +70 °C, making it suitable for various industrial applications where temperature fluctuation may occur.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	12 → 24 V dc
Length	70mm
IP Rating	IP67/IP69K
Mounting Type	Flush
Housing Material	Stainless Steel
Maximum DC Voltage	32V
Minimum Operating Temperature	-40°C
Shielding	Shielded
Switching Current	200 mA
Short Circuit Overload Protection	Yes
Maximum Operating Temperature	+70°C
Maximum Switching Frequency	1kHz
