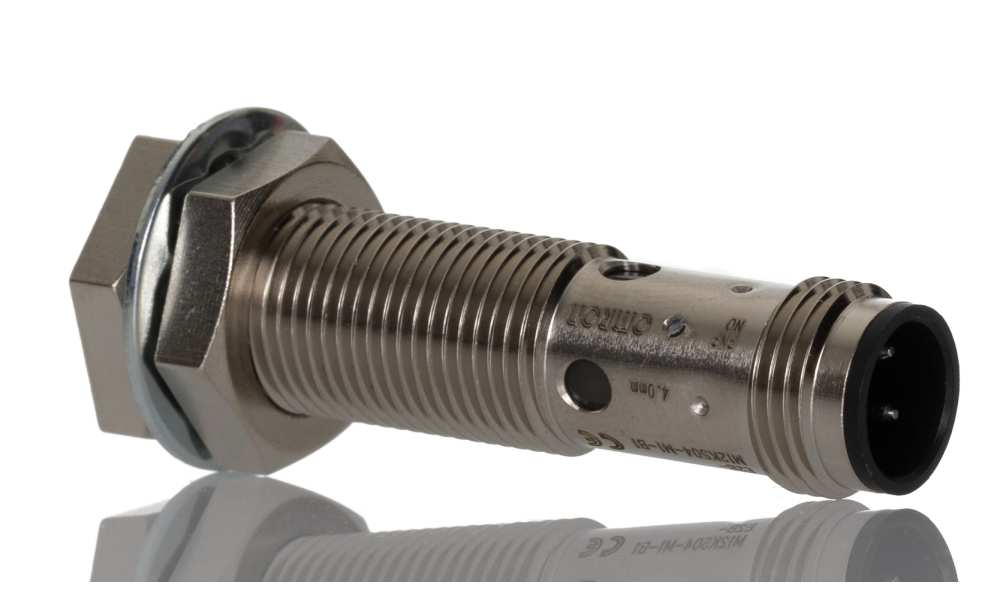

Omron E2B-M12KS04-M1-B1, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NO, 12 → 24 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E2B-M12KS04-M1-B1, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NO, 12 → 24 V dc

Name: Omron E2B-M12KS04-M1-B1, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NO, 12 → 24 V dc
Brand: OMRON
SKU: E2B-M12KS04-M1-B1
Availability: OutOfStock

Part Number : E2B-M12KS04-M1-B1

Proximity sensor, LITE, inductive, nickel-brass, short body, M12, shielded, 4 mm, DC, 3-wire, PNP-NO, M12 plug-in

Availability: Sold out

Detailed Description
Specifications
Features

E2B Brass Standard Length

The E2B range of brass standard length cylindrical inductive proximity sensors from Omron are designed to offer reliable performance for use with in standard industrial environments. This range of inductive sensors have an easy-to-read code. They also have a bright circular LED indicator to allow for quick visual recognition of their operating status. These two features reduce the cost and time need to for maintenance.

Features and benefits

IP67 rated for protection in wet environments

360 ° visible LED for operation control

Pre-wired and connector variations available

Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)

Standard temperature range –25°C to 70°C

OMRON Proximity Sensor, Shielded, 51mm Overall Length - E2B Series - E2B-M12KS04-M1-B1

Pick up on the presence of ferrous metal objects in a snap using this OMRON proximity sensor. Its inductive sensing technology means it doesn't make contact with components, so there's no risk of damage to sensitive devices. Non-contact sensing also minimises the risk of wear and tear on the unit, so you can be sure of its extended service life. Visual inspections are a cinch, thanks to a handy operational control LED. This sensor is a practical choice for dairies and breweries as you can use it to control the positioning of metal valves in your processing system.

Features & Benefits

• Overall length of 51mm makes it suited to confined setups
• IP67-rated housing is dust-tight and protected against submersion in up to 1.5m of water for 30 minutes
• Standard M12 connector slots easily into existing installations
• Nickel-plated brass housing resists wear and corrosion for longevity in harsh conditions

Applications

• Automated assembly lines
• Packaging facilities
• Automotive manufacturing
• FMCG manufacture

What operating temperature range can this proximity sensor withstand?

You can put this product to work in general industrial settings, thanks to its extended operating temperature range between -25°C and +70°C.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Detection Range	4 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	51mm
Mounting Type	Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Short Circuit Overload Protection	Yes
Series	E2B
Maximum Operating Temperature	+70°C
Switching Frequency	1 kHz
Maximum Switching Frequency	1kHz

Proximity sensor, LITE, inductive, nickel-brass, short body, M12, shielded, 4 mm, DC, 3-wire, PNP-NO, M12 plug-in

Omron E2B-M12KS04-M1-B1, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NO, 12 → 24 V dc
